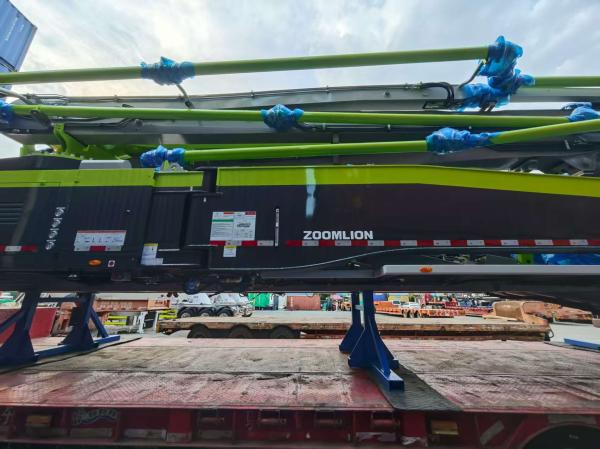

Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Zoomlion K56X-6RZ Concrete Pump Truck 56m Height 51m Range
Specifications
Brand Name :
ZOOMLION
Model Number :
K56X-6RZ
Place of Origin :
China
Production Model :
ZOOMLION K56X - 6RZ
Trademark :
ZOOMLION
Production Date :
2025 - 07
Vertical Height :
56 m
Horizontal Operating Range :
51 m
Theoretical Concrete Output :
180 m³/h
Description

Product Description of Zoomlion ZOOMLION K56X - 6RZ Truck - Mounted Concrete Pump

I. Product Introduction

The Zoomlion ZOOMLION K56X - 6RZ truck - mounted concrete pump, with advanced technology and efficient operation capabilities, provides strong support for various concrete pouring projects and helps to improve construction efficiency and quality.

II. Main Features

(1) Efficient and Stable Pumping

With an advanced pumping system, the theoretical concrete output can reach 180 m³/h. It can transport concrete quickly and continuously, meeting the needs of large - scale and high - intensity pouring operations and reducing construction waiting time.

(2) Flexible and Precise Boom

The boom has a vertical height of 56 m and a horizontal operating range of 51 m. Through precise hydraulic control, it can flexibly adjust the 布料 position and angle, adapt to complex construction sites, achieve precise 布料,and reduce the workload of manual auxiliary 布料.

(3) High Reliability

The curb weight of the whole vehicle is 32,700 kg. The structure design is reasonable, and the key components have undergone strict testing and optimization. It has good durability and stability, can adapt to various harsh construction environments, reduce the probability of equipment failure and shutdown, and ensure continuous construction of the project.

(4) Energy - saving and Environmental Protection

The power transmission and hydraulic system are optimized to reduce energy consumption; at the same time, the noise and pollutant emissions during the operation of the equipment meet the relevant environmental protection standards, contributing to green construction.

III. Application Scenarios

(1) High - rise Building Construction

With a vertical boom height of 56 m, it can cover the concrete transportation and 布料 of high - rise floors, and efficiently complete the pouring of columns, beams, slabs and other parts, throughout the construction from the foundation to the superstructure.

(2) Bridge Engineering

It is used for the construction of bridge piers, beam bodies, etc. The flexible boom can accurately deliver materials, and is suitable for the batch prefabrication of precast beam yards and the construction of cast - in - place bridge sections.

(3) Large - scale Venues and Industrial Buildings

In the large - area and large - volume concrete pouring scenarios such as gymnasiums and factories, the advantages of large output and flexible 布料 can accelerate the construction progress of foundations, floors, roofs and other parts.

(4) Municipal Engineering

It is suitable for projects such as road widening, pipe gallery construction, and sewage treatment facilities, meeting different construction space and pouring requirements, and promoting the efficient development of municipal engineering.

IV. Technical Specifications

Parameter Category Specific Parameters
Production Model ZOOMLION K56X - 6RZ
Trademark ZOOMLION
Production Date 2025 - 07
Chassis Model /
Vertical Height 56 m
Engine Model /
Horizontal Operating Range 51 m
Engine Net Power/RPM / kW / rpm
Theoretical Concrete Output 180 m³/h
Vehicle Identification Number (VIN) /
Concrete Pressure 11.3 MPa
Curb Weight of the Whole Vehicle 32,700 kg
Country of Production CHINA
Maximum Authorized Total Mass / kg
Dimensions (Length × Width × Height) 12,060 mm × 2,550 mm × 3,630 mm

V. Common Problems

(1) Unsmooth Boom Movement

Reasons: Hydraulic oil contamination, abnormal hydraulic system pressure, insufficient lubrication at the boom hinge.
Solutions: Regularly replace qualified hydraulic oil, check and adjust the hydraulic system pressure to the standard value; regularly add grease to the boom hinge points to ensure smooth movement.

(2) Insufficient Concrete Pumping Pressure

Reasons: Wear of the pumping cylinder seals, unreasonable concrete mix ratio (such as excessive aggregate, improper slump), abnormal operation of the valve group.
Solutions: Replace worn seals; adjust the concrete mix ratio, strictly control the aggregate particle size, slump and other parameters; check the valve group, repair or replace faulty components.

(3) Difficult Equipment Start - up

Reasons: Insufficient battery power (for electric type), engine fuel system failure (for diesel type), electrical control system failure.
Solutions: Charge or replace the battery in time (for electric type); check the fuel pipeline, fuel injector, etc., to eliminate fuel system failures (for diesel type); detect and repair or replace faulty components of the electrical control system.

(4) Decline in Boom 布料 Precision

Reasons: Boom deformation, parameter drift of the hydraulic control system, sensor failure.
Solutions: Correct or replace the deformed boom; re - calibrate the parameters of the hydraulic control system; detect and replace faulty sensors.
