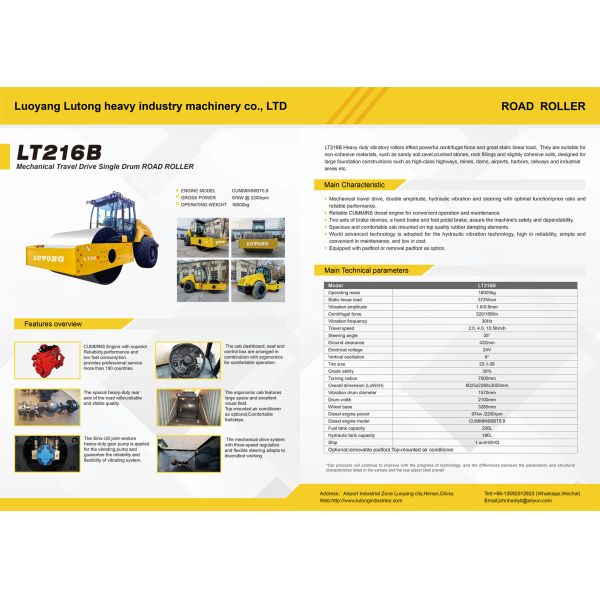

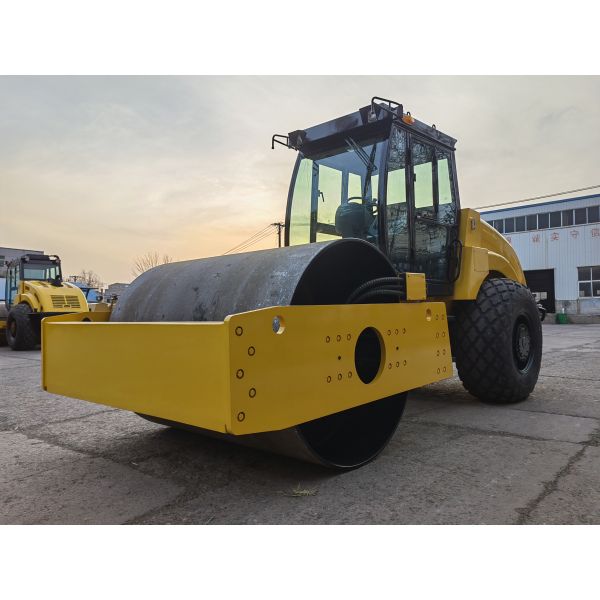

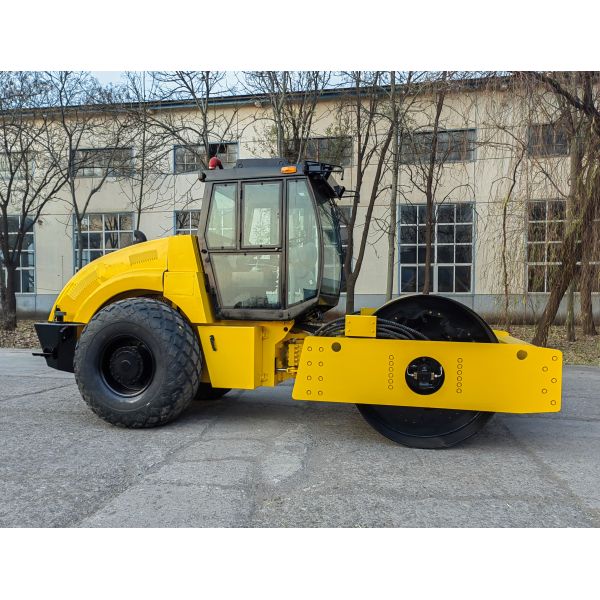

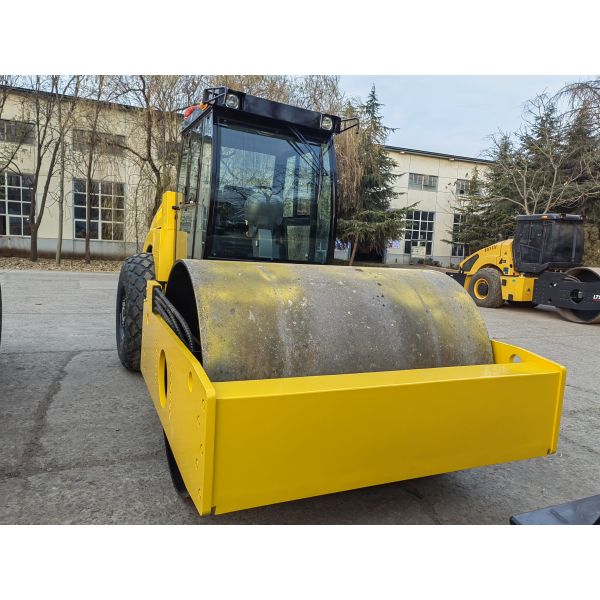

LT216B 16-ton Mechanically Driven Single Drum Vibratory Roller
The LT216B heavy-duty vibratory roller features strong centrifugal force and a large static linear load, suitable for non-cohesive materials such as sand, gravel, crushed stone, rock fill, and slightly cohesive soil. It is specially designed for large-scale foundation construction, such as high-grade highways, mining, dams, airports, ports, railways, and industrial zones.

Main Features:
1. Mechanically driven travel, dual amplitude, hydraulic vibration and steering, offering the best function/price ratio and reliable performance.
2. Reliable 6BT5.9 diesel engine, easy to operate and maintain.
3. Two sets of braking systems: hand brake and foot brake, ensuring machine safety and reliability.

4. Spacious and comfortable cab with high-quality rubber shock absorbers.
5. Hydraulic vibration technology adopts world-leading technology, featuring high reliability, simple and convenient maintenance, and low cost.
6. Optional standard or removable pads.
7. Dedicated transmission and drive axle for the roller, vibration system uses joint venture brand gear pump and motor.
8. Cabin equipped with UV-resistant glass and rollover protection (air conditioning and compaction monitoring system optional).

Main Parameters:
Model: LT216B
Operating Weight: 16000kg
Static Linear Load: 373N/cm
Amplitude: 1.8/0.9mm
Excitation Force: 320/180kN
Vibration Frequency: 30Hz
Travel Speed: 2.0, 4.0, 10.5 km/h
Ground Clearance: 432mm
Turning Angle: 35°
Voltage: 24V
Tire Model: 23.1-26
Climbing Ability: 30%
Minimum Turning Radius: 7000mm
Dimensions (LxWxH): 6025x2280x3050mm
Compaction Width: 2100mm
Vibration Drum Diameter: 1570mm
Wheelbase: 3265mm
Engine Power: 97kW / 2200rpm
Fuel Tank Capacity: 220L
Hydraulic Oil Tank Capacity: 190L
Engine Model: 6BT5.9
Transportation: 1 unit / 40HQ
