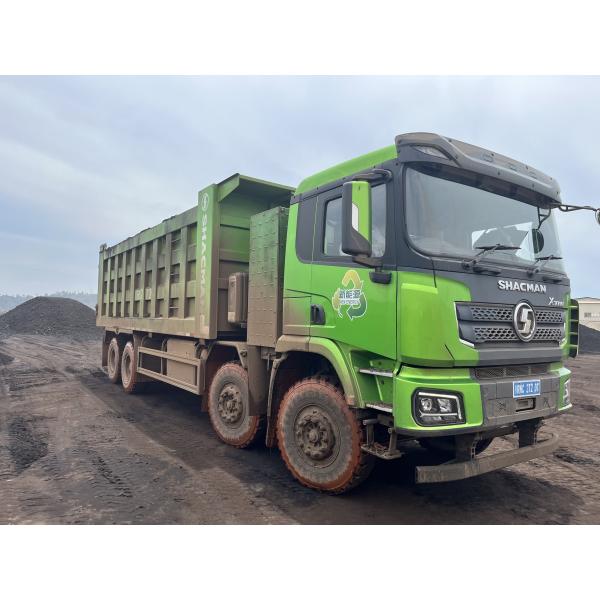

Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Specifications
Brand Name :
Shacman
Place of Origin :
China
Price :
$51,600.00 - $59,800.00/units
Condition :
New
Steering :
Left
Horsepower :
351 - 450hp
Emission Standard :
Euro 3
Segement :
Heavy truck
Market Segement :
Mining transportation
Engine Brand :
WEICHAI
Fuel Type :
Diesel
Engine Capacity :
> 8L
Gear Box Brand :
FAST
Transmission Type :
Automatic
Forward Shift Number :
12
Reverse Shift Number :
2
Maximum Torque(Nm) :
2000-2500Nm
Cargo Tank Dimension :
6800*2350*1600mm
Cargo Tank length :
6.2-8m
Gross Vehicle Weight :
15-20T
Capacity (Load) :
41 - 50t
Fuel Tank Capacity :
300-400L
Drive Wheel :
8X4
Passengers :
2
Driver's Seat :
Normal
Rear Camera :
Camera
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
Yes
Touch Screen :
None
Window :
Automatic
Air Conditioner :
Manual
Tire Number :
10
After-sales Service Provided :
Onsite Installation, Video technical support, Overseas Call Centers, Online support, Free spare parts, Field maintenance and repair service
Product name :
Dump truck
Brand :
Shacman
Driving type :
LHD RHD
Loading capacity :
41-50 Ton
Engine model :
Cummins/Weichai
Color :
Customer's Requirement
Cab :
Flat
Gearbox :
Fast
Warranty :
12 Months
Max speed :
40-55/75 KM/h
Port :
TIANJIN/QINGDAO/SHANGHAI/LIANYUNGANG
MOQ :
1 unit
Payment Terms :
T/T, L/C, Cash
Description
Product Description
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Specification
Product name
Dump Truck
Brand
Shacman
Model
SX3255DR384
Wheel base
3750+1350mm
Maximum speed(km/h)
40～55/75
Ground clearance
>314
Engine brand
Weichai/Cummins
Power
350-430hp
Emission standard
Euro 2 or Euro 3
Gear box brand
Fast
Gear box gears
9 forwards & 1 reserve shifts
Clutch
Diaphragm spring clutch φ430
Cooling
Domestic heat sink
Air inlet
Rotary inlet flat pipe, common air filter
Brakes
type: Drum brake
service brake: Double circuit air brake
park brake: Rear wheel spring brake
auxiliary brake: WEVB engine exhaust brake WEVB
Steering
ZF8098 technology, circulating ball steering machine
Chassis
Parallel trapezoidal frame with variable section
850×300(8+7)
Suspension
front: Multiple spring, two main plates + Four riding bolts
rear: Multiple spring, two main plates + Four riding bolts
Axles
brand: HANDE
front axle: 9.5T Man front axle MAN technology
rear axle: 16T Man Bipolar Reduction widening Drive axle with interhelix differential and differential lock, bridge speed ratio: 5.92
Tires
12R22.5
Fuel tank
300-400L
Electrics
24V, 165Ah maintenance-free battery
Cab
Extended flat roof cab
Equipment
Hydraulic main seats, elasticated headrests, four-point hydraulic suspension, normal mirrors, hot-zone version air conditioning,
Jack scale technology compressor, manual window rollers, manual sunroof, manual flip-up, domestically produced six-channel ABS,
copper water tanks, fiberglass bumpers, front lower protection, tachograph, cruise control system, SHACMAN logos, all-English
logos.
Box
inner size: 5600×2300×1500mm
lifting type: front lifting
bottom panel/side compartment: 8/6mm
the rest are standard;
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Packing & Delivery
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Nude packing in waxing by bulk or roller-roller
Company Profile
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
Notch F3000 8X4 Left Driving Dump Trucks for Heavy Machine 10 Tires 351-450hp
FAQ
1. Who are we?
We are based in Henan, the center of China, start from 2015 out of the net.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Shacman heavy truck, Shacman tractor, XCMG construction machinery, CIMC semi trailer, Mining machinery, and related parts. 4. why should you buy from us not from other suppliers? a. Over ten years experience in truck, trailers, and machinery. b. A wide range of products c. Products are in good quality and good prices d. Quick respond time, good service before and after sale e. Short delivery time. 5. what services can we provide? Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DAP； Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, Cash; Language Spoken: English, Chinese
