JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
JTA-FACE-DM03 Face Recognition Thermal Temperature Screening Camera All-in-One 2MP Visible + IR Blackbody HDMI Direct Display Mask Detection Fever Alarm 1-4m 150-200 People/Min Wall Tripod Mount
Specifications
Technology :
Infrared,NetWork,Face Recognition,Pan / Tilt / Zoom,ODM
Ir distance :
50m,Depending on the environment,10m Max,40-50 meters,35m
Image sensor :
1/1.8" 2.0MP Sony CMOS,1/4" OV9712 CMOS Digital Image Sensor,1/2.5" 8.0M Line-by-Line Scan Exmor CMOS,1/4" CMOS
Style :
Bullet Camera,Dome Camera,Mini Camera,Box Camera,any shape
Lens :
2.8-12mm motorized varifocal lens,2.8-12mm Autofocus lens,3.6mm F2.0 Fixed lens,2.8-12mm,3.6mm
Function :
Support Mobile Remote Viewing,Support Standard Onvif Protocol,Automatic face recognition system with HD camera,sd card function,two ways audio
Power supply :
DC 5V,DC12V / 2A POE(Optional),DC12V
Place of Origin :
Guangdong
Color :
White+black,White,As in picture
Type :
IP Camera,Analog Camera,3D Structure Light Depth Camera,Face & Fingerprint time Attendance
Keyword :
Face recognition,P2p Wifi Ip Camera,standalone wireless ip camera,Motion Camera
Sensor :
CMOS,1/2.8" Progressive Scan CMOS,CCD,2MP 1/2.7"CMOS True WDR
Optical zoom :
20X,4x
Special features :
Waterproof / Weatherproof,Vandal-proof,True WDR,face recognition,Customized
Camera type :
customize,face capture IP Camera Module,Underwater Security IP Camera
Resolution :
1080P,4mp,2MP,3.0mp,1080p @ 60fps frame rate
Warranty :
2 years,two years,12 Months,1 Year
Storage :
128G Max,Support TF Card,16G/32G/64G/128GB
Brand Name :
VastMatch
Video compression :
H265,H.264,MJEGP,H.265+/H.265/H.264/MJPEG
Product name :
H.265 codec Star Light Face Recognition HD Security CCTV IP Camera,Auto Tracking PTZ,2018 wifi face recognition cold storage smart body tracking ip camera,Face Recognition System,Indoor Smart Face Recognition IP Camera
Description

Product Description

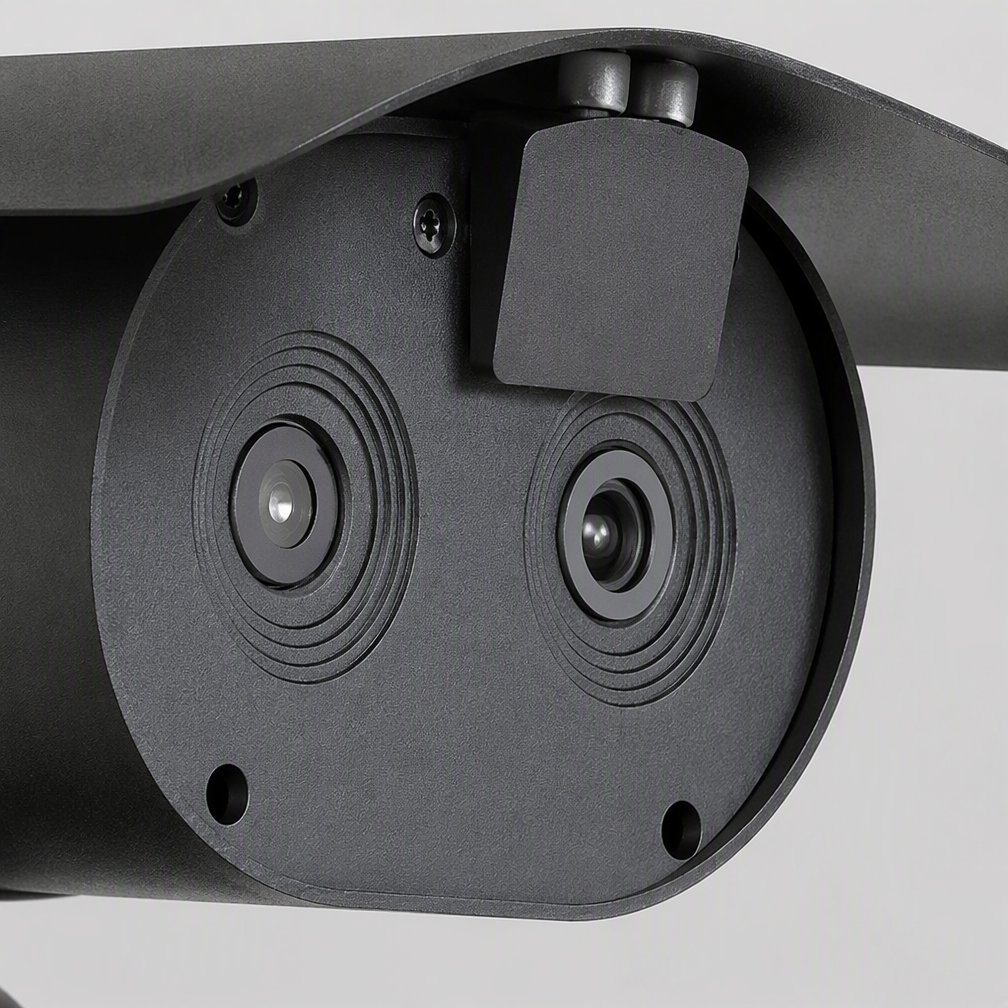

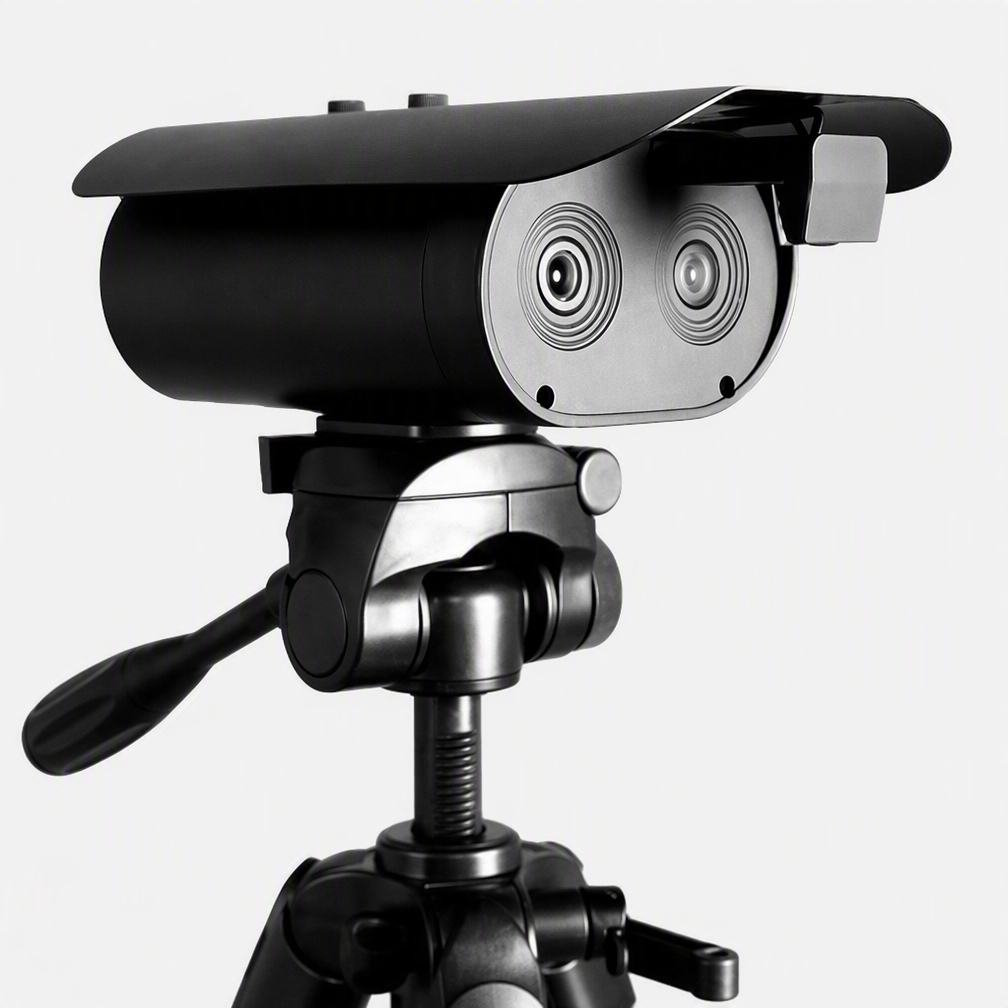

The JTA-FACE-DM03 is an artificial-intelligence powered, non-contact temperature-screening and face-recognition all-in-one for rapid fever screening of crowds in large public venues airports, railway stations, schools, hospitals, factories, shopping centers and office buildings.

It integrates a high-sensitivity infrared camera, a high-definition visible-light camera, a precision built-in blackbody reference, and a high-performance temperature-measurement engine into one compact camera + embedded mainboard unit no PC required. Standard HDMI video output connects directly to any display or TV for instant deployment.

Key Features

Millisecond forehead temperature measurement

● quickly flags persons with fever symptoms and shows the highest temperature value

AI temperature algorithm accuracy ±0.2°C

● (system accuracy ±0.3°C), background-high-temperature filtering for accurate forehead reading

Built-in blackbody, automatic calibration

● automatically corrects for ambient temperature drift; warming time <2 min

Face recognition + mask detection

● with instant alarm for abnormal temperature and unmasked detection

Non-contact, no-sense screening at 1 m ~ 4 m

● measures people in motion, up to

150-200 people per minute

Camera + embedded mainboard + blackbody in one

● smaller and lighter, easy wall / bracket / ceiling / tripod / trolley mounting

Direct HDMI output

● connect to a TV or monitor with no computer needed; optional cloud server for data analysis

Wide connectivity

● RJ45, USB2.0, RS232, dry-contact output for turnstile / barrier linkage

Real-time snapshots and record queries

● with report export

Specifications

Visible-light camera

Parameter

Specification

Sensor

SONY IMX327 CMOS

Resolution

2 MP

Lens focal length

6 mm

Infrared camera

Parameter

Specification

Detector

Uncooled IR FPA array

Resolution

160×120 output (384×288 sensor)

Pixel pitch

17 μm

Waveband

8 ~ 14 μm

NETD

≤60 mK (F/1, 300 K, 50 Hz)

Frame rate

15 Hz

Temperature data output

Full-frame temperature output

Temperature range

20°C ~ 50°C

FOV (calculated)

40° × 30°

Screening throughput

150~200 people/min

Blackbody

Parameter

Specification

Effective radiating area

20 mm × 30 mm

Emissivity

0.96 ±0.02

Temperature range

(ambient +5°C) ~ 50°C

Temperature resolution

0.01°C

Stability accuracy

better than ±0.1°C

Warm-up time

< 2 min

Mainboard & others

Parameter

Specification

CPU

Dual-core A53

USB

USB 2.0

Video out

HDMI 1.4

Power

12V / 2A

Network

RJ45 100M

Image features

IR-CUT auto switch, backlight compensation, strong-light suppression, auto white balance

Interfaces

RJ45, USB, RS232, dry-contact output

Operating temperature

0°C ~ 40°C

Installation

Bracket, wall, ceiling

Product size

171 × 142.6 × 88.5 mm

Packing size

L285 × W285 × H170 mm

Net weight

< 1 kg

Gross weight

< 2 kg

Applications

Building & venue entrance screening · airport / station lobbies · schools & campuses · hospital entrances · factories · shopping malls · offices
