No need heat shrink Cold Shrink Tube adapt to cable connector
No need heat shrink Cold Shrink Tube adapt to cable connector
No need heat shrink Cold Shrink Tube adapt to cable connector
No need heat shrink Cold Shrink Tube adapt to cable connector
No need heat shrink Cold Shrink Tube adapt to cable connector
No need heat shrink Cold Shrink Tube adapt to cable connector
No need heat shrink Cold Shrink Tube adapt to cable connector
No need heat shrink Cold Shrink Tube adapt to cable connector
Specifications
Brand Name :
Long
Model Number :
30mm
Certification :
ISO9001
Place of Origin :
Jangsu China
MOQ :
5
Price :
0.04
Payment Terms :
T/T
Supply Ability :
100000pcs
Delivery Time :
4-5days
Packaging Details :
carton
material :
EPDM Enthylene Propylene Diene Monomer
application :
electrical industry ,submarine cable ,petrochemical explosion-proof field ,high voltage in rall transit
temperature :
-55 to 150C
shrink ratio :
3:1
inner diameter :
56mm
wall thickness :
0.5mm
length :
150mm
tensile strength :
≥8.6MPa
elongation strength :
≥840%
longevity :
30 years
performance :
high temperature resistance ,flame retardant ,high sealing
installation :
easy installation
Description

Description :


The cold shrink tube divide into two material ,one is the silicone rubber tube ,the other is Enthylene Propylene Diene Monomer .It is mainly used for cable connector or terminal sealing with the high insulating and elasticity in the electricity ,wire ,communication field . The core is through the self elasticty wrap the tube in the normal temperature ,no need the heat temperature.

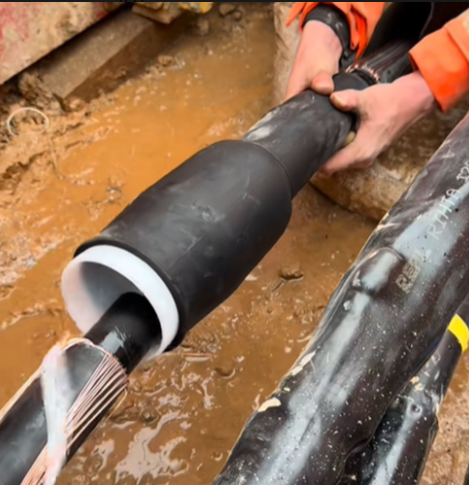

The craft of it is pre-expanded to 2-3 times its original diameter inside the factory ,with a plastic spiral support strip used a the inner lining for shaping ,and then pull it into the cable and out the support bar ,the tube shrink quickly bonding the wire .


The main feature of the tube is that no flame or the heat wind fit for safe installation ,is a good choice for explosion resistance ,high wire ,underground station etc .The longevity sealing capability is help the tube suit for the environment thermal expansion and contraction and the surface no gap long time ,waterproof grade standard IP67+.High insulating capability ,electricity resistance ,breakdown resistance ,and uniform electric field .Longevity use and weather resistance ,understanding the temperatutre from -55 to 150 C,UV proof ,anti-ozone ,anti-corison.


It is widely used in the electricity field ,including the low voltage 1kv-35kv ,the cable terminal outdoor or indoor ,the connector in the cable .Three core cable breakout ,protecting the cable sheath from broken ,abrasion immediately .Resist the dust ,steam ingressing ,and the animal intrusion ,others is that insulation sealing for submarine cables ,petrochemical explosion -proof zones ,and high -voltage cables in rall transit.
