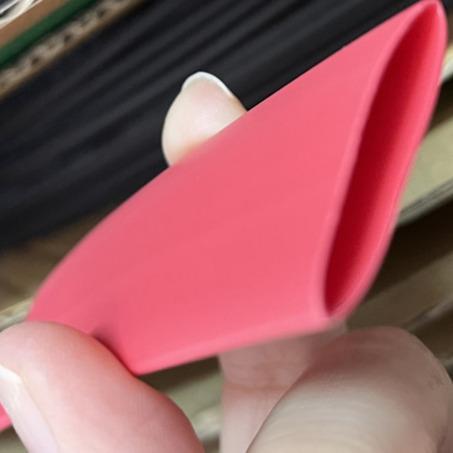

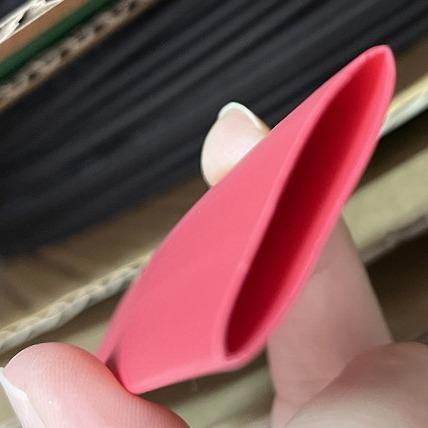

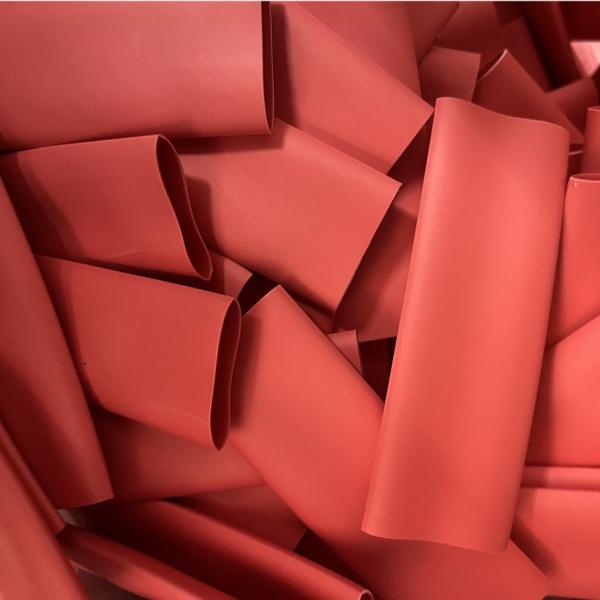

19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
Specifications
Brand Name :
Long
Model Number :
19.1mm
Certification :
ISO
Place of Origin :
China
MOQ :
1m
Price :
0.05
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
400000meters per day
Delivery Time :
1-9days
Packaging Details :
Roll/Carton
Color :
Red
Material :
PE
Shrink Ratio :
3:1
Shrinkage :
Low longitudinal shrinkage
Flame retardant :
Flame retardant (out jacket only)
Super sealing against :
Super sealing against water ,oisture or other contaminates
Continuous operating temperature :
-45-125°C
Fully shrink temperature :
over 125°C
Description

19.1mm Red Dual Wall Heat Shrink Tubing With Adhesive Shrink Ratio 3X

Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing . Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features

• 3:1 shrink ratio

• Low longitudinal shrinkage


• Flame retardant (out jacket only)

• Super sealing against water ,oisture or other contaminates

• Continuous operating temperature: -45-125°C

• Fully shrink temperature: over 125°C


Dimensions

InchmmInternal Diameter mmInternal Diameter mmTotal Wall Thickness mmAdhesive Thickness mmSpool Length M/spool
3/322.42.40.80.80±0.300.40±0.20200
1/83.23.21.00.90±0.300.40±0.20200
3/164.84.81.61.05±0.300.40±0.20100
1/46.46.42.21.25±0.300.45±0.20100
5/167.97.92.71.35±0.300.50±0.20100
3/89.59.53.21.45±0.300.50±0.2050
1/212.712.74.21.65±0.300.50±0.201.22OR25M/Roll
5/815155.21.80±0.300.55±0.301.22OR25M/Roll
3/419.119.16.31.95±0.300.60±0.301.22OR25M/Roll
125.425.48.52.00±0.400.60±0.301.22OR25M/Roll
1-1/4303010.22.15±0.400.65±0.301.22OR25M/R0II
1-1/2393913.52.45±0.400.60±0.301.22OR25M/Roll
25050172.75±0.400.75±0.301.22OR25M/Roll
5/26464213.05±0.400.80±0.301.22OR25M/Roll
37575253.05+0.401.0510.401.22OR25M/Roll
7/29090303.10±0.501.05±0.401.22OR25M/Roll
4100100343.10±0.501.05±0.401.22OR25M/R0II
5125125423.10±0.501.10±0.401.22OR25M/Roll



Technical Data

I PropertyTest MethodStandardTypical Performance I
Tensile Strength(MPa)ASTM D2671W0.411.5
Elongation(%)ASTM D2671M300450
Tensile Strength after aging (MPa)UI224 158°CX168hrN7.38.5
Elongation after aging(%)UI224 158°CX168hrN200350
FlammabilityASTM D2671BSelf-extinguish within 30sSelf-extinguish within 30s
Dieletric strength(kV/mm)IEC 60243N1517.5
Volume resistivity(Q.cm)IEC 60093^1X10142.5X1014


Hot Melt Adhesive Property

PropertyTest MethodStantard I
Water AbsorptionASTM D570<0.2%
Sofening Point(°C)ASTM E2890±5
Strength of pearing(PE)ASTM D 1000120N/25mm
Strength of pearing(AL)ASTM D 100080N/25mm

19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
