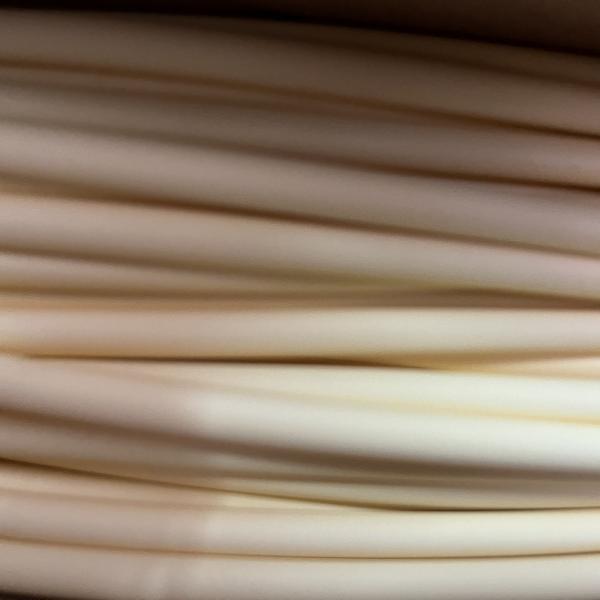

3.2mm Dual Wall Heat Shrink Tube Yellow Adhesive Shrink Ratio 3X
3.2mm Dual Wall Heat Shrink Tube Yellow Adhesive Shrink Ratio 3X
3.2mm Dual Wall Heat Shrink Tube Yellow Adhesive Shrink Ratio 3X
3.2mm Dual Wall Heat Shrink Tube Yellow Adhesive Shrink Ratio 3X
Specifications
Brand Name :
Long
Model Number :
3.2mm
Certification :
ISO
Place of Origin :
China
MOQ :
1m
Price :
0.05
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
400000meters per day
Delivery Time :
1-9days
Packaging Details :
Roll/Carton
Color :
Yellow
Material :
PE
Shrink Ratio :
3:1
Shrinkage :
Low longitudinal shrinkage
Flame retardant :
Flame retardant(out jacket only)
Super sealing against :
water, moisture other contaminates
Continuous operating temperature :
-45-125°C
Fully shrink temperature :
over 125°C
Description

19.1mm Red Dual Wall Heat Shrink Tubing With Adhesive Shrink Ratio 3X

Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing. Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features

• 3:1 shrink ratio

• Low longitudinal shrinkage

• Flame retardant(out jacket only)

• Super sealing against water, moisture other contaminates

• Continuous operating temperature: -45-125°C

• Fully shrink temperature over 125°C

Dimensions

Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
3/32 2.4 2.4 0.8 0.80±0.30 0.40±0.20 200
1/8 3.2 3.2 1.0 0.90±0.30 0.40±0.20 200
3/16 4.8 4.8 1.6 1.05±0.30 0.40±0.20 100
1/4 6.4 6.4 2.2 1.25±0.30 0.45±0.20 100
5/16 7.9 7.9 2.7 1.35±0.30 0.50±0.20 100
3/8 9.5 9.5 3.2 1.45±0.30 0.50±0.20 50
1/2 12.7 12.7 4.2 1.65±0.30 0.50±0.20 1.22OR25M/Roll
5/8 15 15 5.2 1.80±0.30 0.55±0.30 1.22OR25M/Roll
3/4 19.1 19.1 6.3 1.95±0.30 0.60±0.30 1.22OR25M/Roll
1 25.4 25.4 8.5 2.00±0.40 0.60±0.30 1.22OR25M/Roll
1-1/4 30 30 10.2 2.15±0.40 0.65±0.30 1.22OR25M/R0II
1-1/2 39 39 13.5 2.45±0.40 0.60±0.30 1.22OR25M/Roll
2 50 50 17 2.75±0.40 0.75±0.30 1.22OR25M/Roll
5/2 64 64 21 3.05±0.40 0.80±0.30 1.22OR25M/Roll
3 75 75 25 3.05+0.40 1.0510.40 1.22OR25M/Roll
7/2 90 90 30 3.10±0.50 1.05±0.40 1.22OR25M/Roll
4 100 100 34 3.10±0.50 1.05±0.40 1.22OR25M/R0II
5 125 125 42 3.10±0.50 1.10±0.40 1.22OR25M/Roll

Technical Data

I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 W0.4 11.5
Elongation(%) ASTM D2671 M300 450
Tensile Strength after aging (MPa) UI224 158°CX168hr N7.3 8.5
Elongation after aging(%) UI224 158°CX168hr N200 350
Flammability ASTM D2671B Self-extinguish within 30s Self-extinguish within 30s
Dieletric strength(kV/mm) IEC 60243 N15 17.5
Volume resistivity(Q.cm) IEC 60093 ^1X1014 2.5X1014

Hot Melt Adhesive Property

Property Test Method Stantard I
Water Absorption ASTM D570 <0.2%
Sofening Point(°C) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm
