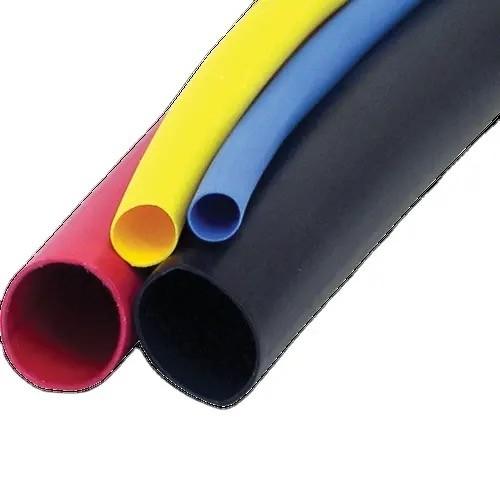

1.0mm 45mm Heat Shrink Insulation Tube Sleeve For Busbar
1.0mm 45mm Heat Shrink Insulation Tube Sleeve For Busbar
Specifications
Brand Name :
Long
Model Number :
S-XL
Certification :
ISO
Place of Origin :
China
MOQ :
100pieces
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
100000pieces per day
Delivery Time :
1-9days
Packaging Details :
Carton
Type :
Fishing Rod Heat Shrink Wrap Tubing
Rated voltage :
300V/600V
Tensile strength :
10.4 Mpa min
Color :
Black,Red,Blue,White,Yellow
Product name :
Heat Shrink Cross Line Tube For Fishing Rod Sports
Feature :
High Temperature Resistance,electric conduction
Size :
3.2-130mm,ID15mm~50mm
Wall thickness :
0.1mm (before shrinkage),0.2-0.8mm
Oem :
Yes
Description

Polyolefin Shrink Tubing Thin Wall Without Glue Heat Shrink Insulation Tube

Descriptions


Brand new and high quality
Big collection of heat shrink tubing,8 Specifications,5 colors.
Supplied internal diameter: 1.5mm,2mm,3mm,4mm,5mm,6mm,8mm,10mm
Fully shrunk internal diameter: 0.75mm,1mm,1.5mm,2mm,2.5mm,3mm,4mm,5mm
Color: Black,Yellow,Green,Red,Blue
Specifications: 8
Quantity: 1 Pack(530pcs)

Characteristics


* Material: Polyolefin
* Shrink ratio: 2:1, 3:1
* Operating range : -55℃--+125℃
* Flammability : VW-1
* Excellent electrical, physical and chemical properties.
* UL, RoHS and REACH compliant.

Dimensions

Size Expanded Recovered

Standard Package

M/Spool

Round/Flat
Inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
1/8 3.2 3.2 1.6 0.75±0.20 200 Round
3/16 4.8 4.8 2.4 0.89±0.20 100 Round
1/4 6.4 6.4 3.2 0.89±0.20 100 Round
3/8 9.5 9.5 4.8 0.89±0.20 50 Round
1/ 2 12.7 12.7 6.4 0.89±0.20 25 Round
3/4 19.0 19.0 9.5 1.07±0.30 25 Round
1 25.4 25.4 12.7 1.25±0.30 25 Round
1-1/ 2 38.1 38.1 19.0 1.40±0.30 25 Round
2 50.8 51.0 25.4 1.65±0.30 25 Round

Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥8.5 10.0
Elongation(%) ASTM D2671 ≥250 300
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 250
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X109 2.5X109
Flammability VW-1 Pass Pass

1.0mm 45mm Heat Shrink Insulation Tube Sleeve For Busbar

Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.

At Longchuang, we know this can be done.

FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
