Specifications
Brand Name :
UPTOGETHER
Model Number :
YGDRS
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
400 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Meter/Meters per Day
Delivery Time :
1-15days
Packaging Details :
Carton
Material :
PE
Rated Voltage :
1kV
Shrink Ratio :
2:1
Type :
Insulation Sheet, Flame Resisitance,Halogen Free
Application :
Low Voltage
Tensile Strength :
12 N/mm2
Description

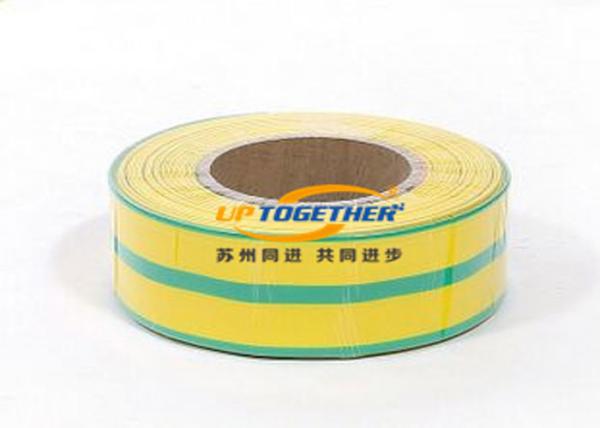

Yellow green thin wall heat shrink tube YGDRS , φ1-φ150mm , yellow-green strips , PE

1. Product Introduction

YGDRS series of yellow green tube are series are yellow colour tubes with green stripes. They are used for insulating earth (ground) wires and conform to requirements of International colour code practice for such applications. They are flexible, flame retardant and resistant to most of the common solvents. They meet Rohs requirements of the EU.

YGDRS Yellow Thin Wall Plastic Tube , Thin Heat Shrink Tubing φ1 - φ150MM

2. Technical Parameter

Property Test Method Result
Tensile Strength ASTM D638 12 N/mm2
Elongation ASTM D638 300%
Heat Shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold Blend@-30℃ ASTM D2671 No Cracking
Dielectric Strength ASTM D149 15kv/mm
Voltage Withstand @2.5kv for 60 sec No breakdown
Volume Resistivity ASTM D257 1x1014Ω.cm
Longitudinal Change ASTM D2671 Inside +/- 5%

3. Specification Packaging

Size Before Applied (mm) After Applied (mm) Package
(mm) Internal Diameter

Wall

Thickness

 Internal Diameter

Wall

Thickness

 (M/Spool)
Ø3.0/1.5 3.5±0.2 0.18±0.05 ≤1.5 0.35±0.05 200
Ø3.5/1.75 4.0±0.2 0.18±0.05 ≤1.75 0.40±0.05 200
Ø4.0/2.0 4.5±0.2 0.20±0.05 ≤2.0 0.40±0.05 100
Ø5.0/2.5 5.5±0.3 0.20±0.08 ≤2.5 0.40±0.08 100
Ø6.0/3.0 6.5±0.3 0.20±0.08 ≤3.0 0.40±0.08 100
Ø7.0/3.5 7.5±0.3 0.20±0.08 ≤3.5 0.42±0.08 100
Ø8.0/4.0 8.5±0.3 0.20±0.08 ≤4.0 0.42±0.08 100
Ø9.0/4.5 9.6±0.3 0.22±0.08 ≤4.5 0.45±0.08 100
Ø10.0/5.0 10.6±0.4 0.22±0.08 ≤5.0 0.45±0.08 100
Ø11.0/5.5 11.6±0.4 0.22±0.10 ≤5.5 0.45±0.10 100
Ø12.0/6.0 12.6±0.4 0.22±0.10 ≤6.0 0.45±0.10 100
Ø13.0/6.5 13.6±0.4 0.23±0.10 ≤6.5 0.46±0.10 100
Ø14.0/7.0 14.6±0.4 0.23±0.10 ≤7.0 0.46±0.10 100
Ø15.0/7.5 15.6±0.5 0.23±0.10 ≤7.5 0.46±0.10 100
Ø16.0/8.0 16.6±0.5 0.25±0.10 ≤8.0 0.50±0.10 100
Ø18.0/9.0 18.6±0.5 0.25±0.10 ≤9.0 0.55±0.10 100
Ø20.0/10.0 20.6±0.6 0.25±0.10 ≤10.0 0.55±0.10 100
Ø22.0/11.0 22.6±0.6 0.28±0.10 ≤11.0 0.60±0.10 100
Ø25.0/12.0 25.6±0.6 0.30±0.10 ≤12.0 0.65±0.10 25
Ø28.0/14.0 28.8±0.8 0.30±0.10 ≤14.0 0.65±0.10 25
Ø30.0/15.0 30.8±0.8 0.33±0.10 ≤15.0 0.70±0.10 25
Ø35.0/17.5 36.0±1.0 0.35±0.10 ≤17.5 0.75±0.10 25
Ø40.0/20.0 41.0±1.0 0.35±0.10 ≤20.0 0.75±0.10 25
Ø50.0/25.0 51.0±1.0 0.40±0.10 ≤25.0 0.80±0.10 25
Ø60.0/30.0 61.0±1.0 0.40±0.10 ≤30.0 0.80±0.10 25
Ø70.0/35.0 71.0±1.0 0.40±0.10 ≤35.0 0.80±0.10 25
Ø80.0/40.0 81.0±2.0 0.45±0.10 ≤40.0 0.90±0.10 25
Ø90.0/45.0 91.0±2.0 0.45±0.10 ≤45.0 0.90±0.10 25
Ø100.0/50.0 102.0±2.0 0.50±0.10 ≤50.0 1.0±0.20 25
Ø120.0/60.0 122.0±2.0 0.50±0.10 ≤60.0 1.0±0.20 25
Ø150.0/75.0 152.0±2.0 0.50±0.10 ≤75.0 1.0±0.20 25

4. Ordering information

Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

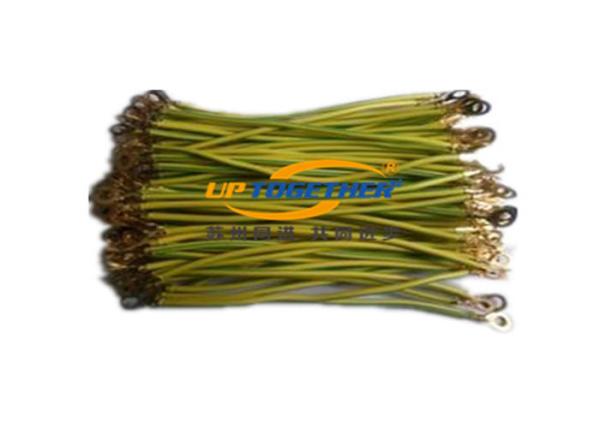

5. Application case

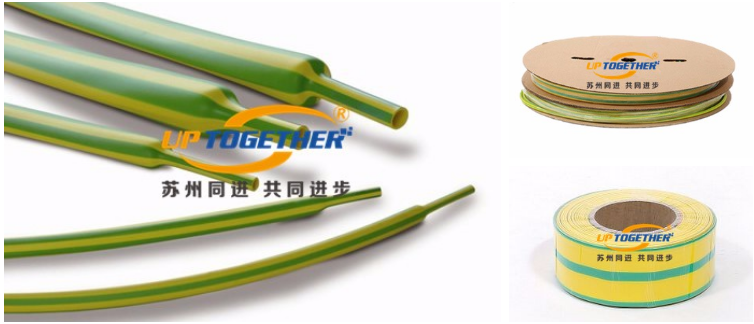

YGDRS Yellow Thin Wall Plastic Tube , Thin Heat Shrink Tubing φ1 - φ150MM
