XHDRS - 2 Heat Shrink Butt Connectors , Automotive Electrical Wire Connectors
XHDRS - 2 Heat Shrink Butt Connectors , Automotive Electrical Wire Connectors
XHDRS - 2 Heat Shrink Butt Connectors , Automotive Electrical Wire Connectors
XHDRS - 2 Heat Shrink Butt Connectors , Automotive Electrical Wire Connectors
Specifications
Brand Name :
UPTOGETHER
Model Number :
XHDRS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
20 Sets
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Box/Boxes per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Material :
Purple Copper
Application :
Wire Connecting
Type :
Crimp Terminal
Usage :
Electric Heating
Certificate :
ROHS
Standard Color :
White Red Blue Yellow
Plated: :
tin
Description

75Pcs Heat Shrink Butt Terminals , Waterproof Automotive Copper Connectors , Colorful , XHDRS-2(Red)

1. Product Parameter

75Pcs Heat Shrink Butt Terminals , Waterproof Automotive Copper Connectors , Colorful , XHDRS-2(Red) is made of polyolefin, with adhesive lining for protecting splices from water , condensation , salt, and corrosion . Providing strain relief and against vibration in rugged environments , which completely insulates and protects electrical connections . It offer long-term performance , easy installation , and a low installed cost , which is more reliable than conventional splices .

2. Technical Parameter

Characteristics:

1. Shrink ratio: 2:1
2. Waterproof for wiring splices
3. Transparent sleeve provides visual inspection
4. High elasticity assures steady performance
5. Easy control of soldering process
6. Operating temperature: -55℃~125℃
7. Minimum shrink temperature: 140℃

3. Specification Packaging

Size Before Shrink(mm) After Shrink(mm) Solder Circle (mm)

Length

(mm)

 Cable size
AWG (mm2)
Inner Diameter

Wall

Thickness

 Inner Diameter

Wall

Thickness

 Inner Diameter

Wall

Thickness

 Height
XHDRS-1(White) 2.0±0.1 0.30±0.05 1.1±0.1 0.50±0.05 1.8±0.1 0.3±0.05 2.0±0.1 26±0.5

26-24

(0.25-0.5)
XHDRS-2(Red) 3.2±0.2 0.38±0.05 1.5±0.1 0.55±0.05 2.9±0.1 0.45±0.05 2.5±0.1 40±0.5

22-18

(0.5-1.5)

XHDRS-3

(Blue)

 5.0±0.2 0.40±0.05 2.6±0.1 0.78±0.05 4.6±0.1 0.48±0.05 2.5±0.1 40±0.5

16-14

(1.5-2.5)
XHDRS-4(Yellow) 6.5±0.2 0.40±0.05 3.0±0.1 0.80±0.05 6.2±0.1 0.5±0.05 3.5±0.1 40±0.5

12-10

(4.0-6.0)
XHDRS-5(Green) 12±0.5 0.40±0.05 5.5±0.3 0.80±0.05 11±0.5 1.3±0.2 3.0±0.1 40±0.5

10-6

(6.0-10.0)

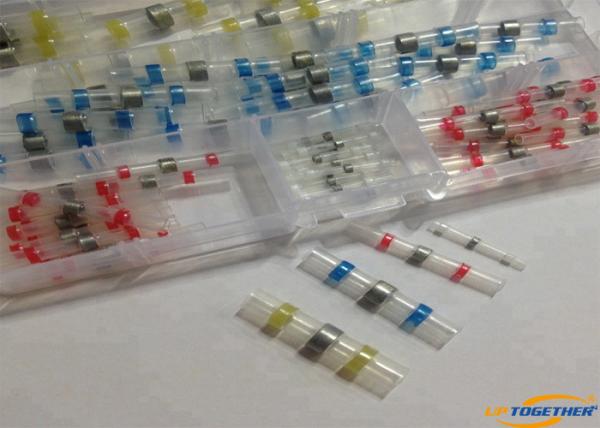

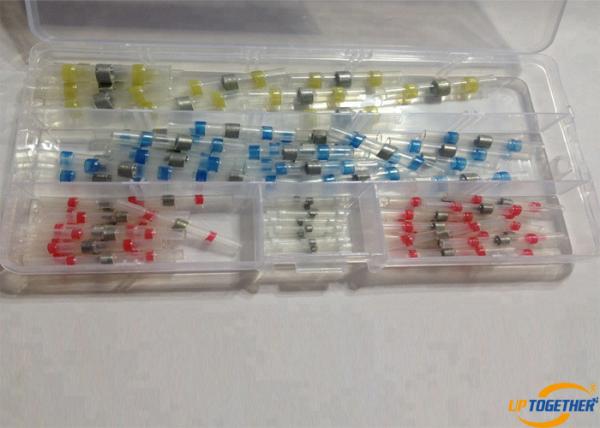

Included :

75PCS TERMINAL KIT
Red XHDRS- 30(Pcs)
Blue XHDRS- 20(Pcs)
Yellow XHDRS-10(Pcs)
White XHDRS-15(Pcs)

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case
XHDRS - 2 Heat Shrink Butt Connectors , Automotive Electrical Wire Connectors
