Specifications
Brand Name :
UPTOGETHER
Model Number :
SR CST(M)
Certification :
SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
500 Piece/Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
1-15 Days
Packaging Details :
Carton
Material :
Silicon Rubber
Rated Voltage :
1kV
Color :
Black,Grey
ID :
20-150mm
Temperature :
-60℃-90℃
Application :
Low Voltage
Tensile Strength :
7Mpa
Shrink Ratio :
2:1-5:1
Length :
100-500mm
Description

Silicon rubber cold shrink tube with mastic for Sealing Of Feeder Connections SR CST M , Φ28-φ44mm

1. Product Introduction

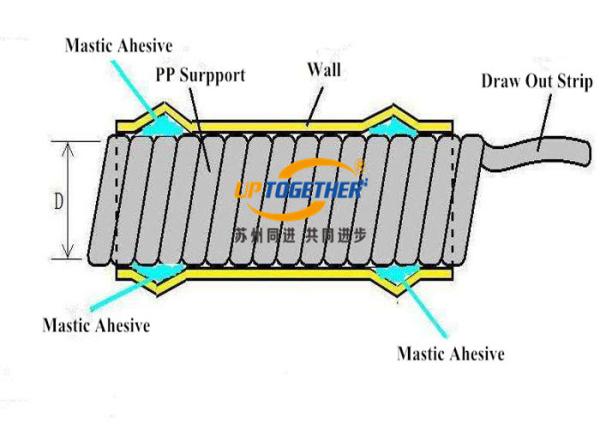

SR CST(M) series of silicon rubber cold shrink tube is made from silicon rubber material with mastic on the two ends,suitable for the sealing and protection to communication cable in mobile station.It is very simple to install.The material with good weather resistance,bacteria resistance and so on. Also it is approval by Rohs.

SR CST M Adhesive Lined Shrink Tubing φ28 - 44MM For Sealing Feeder Connections

2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D412 7MPa
Elongation ASTM D412 670%
Tear strength ASTMD751 34KN/m
Dielectric strength ASTM D149 25kv/mm
Shore A ASTM D2240 42

3. Specification Packaging

Size Application Range (mm) Length after Relaxed (mm)
Φ28 11～23 110
Φ40 12.7～35 140

4. Ordering Information

Packing
1By diffrent cartons and plastic pallents.
2.Anonymous packing is available.
3.OEM packing is available.
4.Do as customer's requirements.
Delivery
1.Our factory is nearby Shanghai.
2.Other seaport is acceptable.
3.Do as customer's requirements.

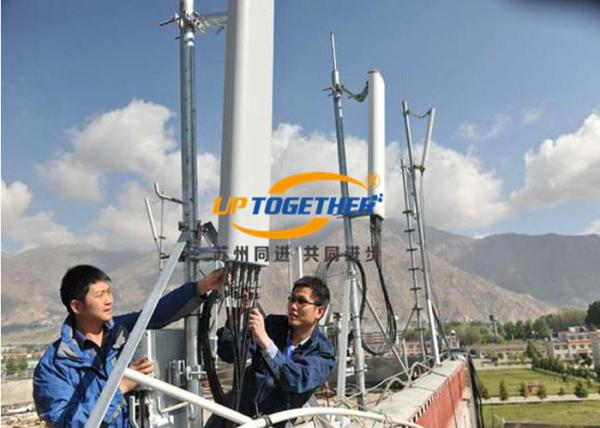

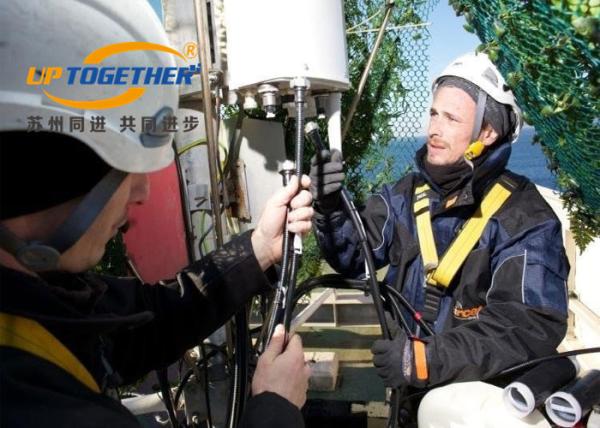

5. Application Case
SR CST M Adhesive Lined Shrink Tubing φ28 - 44MM For Sealing Feeder Connections
