Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
Specifications
Brand Name :
UPTOGETHER
Model Number :
CBT-Y
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1000 Square Meter/Square Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 Square Meter/Square Meters per Day
Delivery Time :
1-7days
Packaging Details :
Carton
Material :
PE, Rubber
Length :
10000-50000mm
Plastic Modling Type :
Extruding
Color :
Black
Width :
50-300mm
Thickness :
0.7-1.5mm
Description

Polyethylene cold applied tape for pipeline factory supplier CBT-Y , CBT-Y100x30000-1.1 , PE

1. Product Introduction

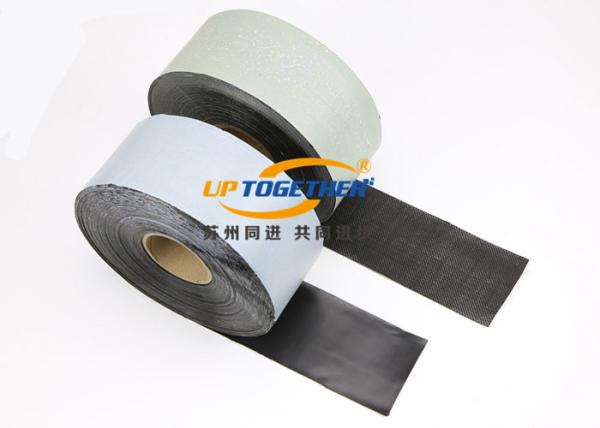

CBT-Y series of polyethylene cold applied tape is made of a polyethylene backing, coated with a layer of a proprietary formulation based on butyl rubber. The installed product provides outstanding adhesion and elastic properties. It is highly adaptive to forces caused by changes in temperature and soil stress creep. They have excellent anti-aging and UV resistance properties. The high tensile strength and elongation of the backing material offers superior mechanical protection. It perform very well in corrosion protection and repair of pipelines, storage tanks and irregular shapes like flanges, tees, bends, elbows etc.

Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE

2. Technical Parameter

Property Test Method CBT-Y
Backing & Adhesive
Backing Thickness (mm) ASTM D1000 0.29-0.31
Adhesive Thickness (mm) ASTM D1000 0.83-0.85
Total Thickness (mm) ASTM D1000 1.12-1.16
Tensile Strength (psi) ASTM D1000 3100
Elongation (%) ASTM D1000 475
Dielectric (KV/mm) ASTM D149 35
Volume Resistance (Ω.cm) ASTM E257 7.3x1016
Water Proof (%) (WT) ASTM D570 0.056
Installed Product
Peel Strength/BACKING (N/cm)@23℃ ASTM D1000 24
Peel Strength/PRIMER STEEL(N/cm)@23℃ ASTM D1000 20
Cathodic Disbonding (mm rad)@23℃ ASTM G 8 5

Please contact us for more details

3. Specification Packaging

Purchase Guide

Example: CBT-Y100x30000-1.1 (mm)

1, CBT-Y:Product code,measure unit:PC,ROLL,M2.

2, 100:CBT-Y width,range: 50-300mm.

3, 30000:CBT-Y length,range: 10000-40000mm.

4, 1.1:CBT-Y total thickness,range: 0.7-1.5mm.

The primer can be packed in drum form,which can adapter to the cold applied tape.

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

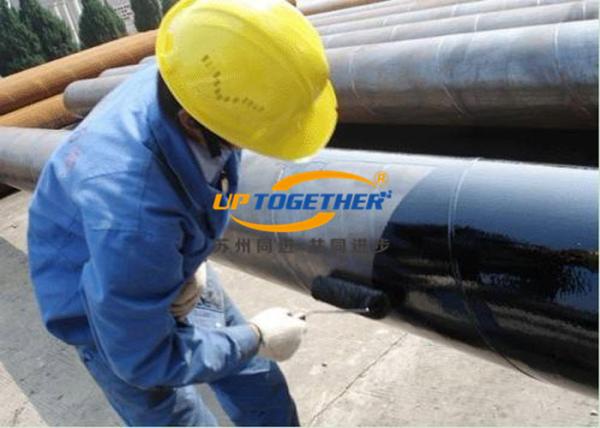

5. Application Case

Polyethylene Cold Applied Tape , CBT - Y Corrosion Protection Tape PE
