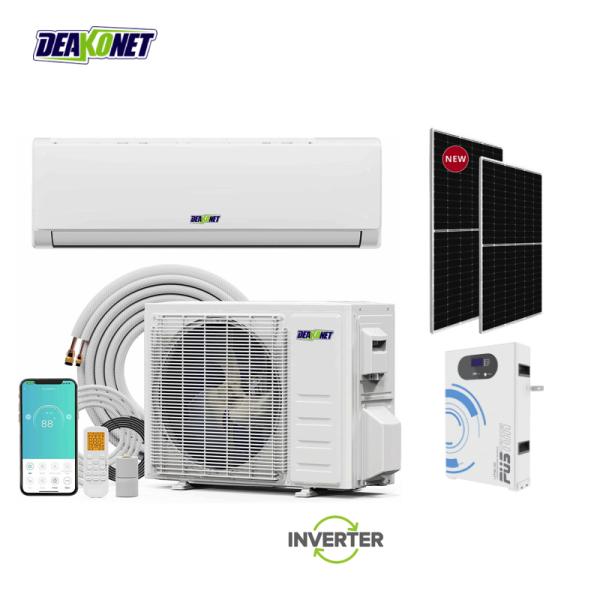

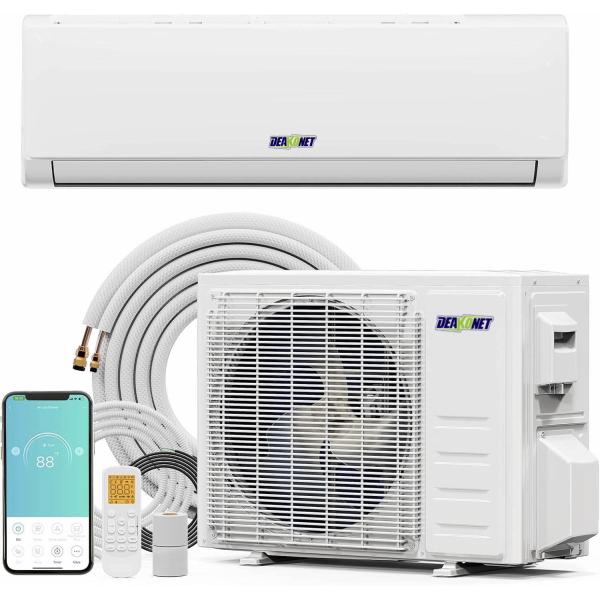

Parameter

1.5HP

2HP

3HP

Model

KFRPV-35T1R1WN/BP

KFRPV-50T1R1WN/BP

KFRPV-72T1R1WN/BP

Suggested Room Area

m²

10-20

20-40

40-60

Cooling Performance Data

Rated Cooling Capacity

W

3600

5000

7500

Rated Cooling Condition (Outdoor/Indoor)

35/24℃; 27/19℃

35/24℃; 27/19℃

35/24℃; 27/19℃

Grid Power Input Range

W

50-980

50-1420

60-2130

Grid Power EER Range

W/W

3.67-72.0

3.52-100

3.52-125

Heating Performance Data

Rated Heating Capacity

W

4500

6000

9000

Rated Heating Condition (Outdoor/Indoor)

7/6℃; 20/15℃

7/6℃; 20/15℃

7/6℃; 20/15℃

Grid Power Input Range

W

50-1150

50-1540

60-2300

Grid Power COP Range

W/W

3.91-90.0

3.90-120.0

3.90-150

Annual Performance Factor (APF)

W/W

5.1

4.83

4.82

Electrical Specifications

Power Supply

V/Hz

220-240V-50Hz

220-240V-50Hz

220-240V-50Hz

PV Input Voltage Range

V

DC90-400V

DC90-400V

DC90-400V

PV Panel Standard Specification

W

585

585

585

PV Panel Standard Quantity

Pieces

3

4

6

Max Input Power

W

1650

2200

3500

Max Input Current

A

7.9

10.5

16.7

Component Specifications

Compressor Type

-

High-efficiency DC Inverter Rotary

High-efficiency DC Inverter Rotary

High-efficiency DC Inverter Rotary

Outdoor Fan Motor Type

-

DC Brushless Inverter Fan

DC Brushless Inverter Fan

DC Brushless Inverter Fan

Physical Specifications

Fan Blade Specification

mm

420x143

420x143

496x160

Fin Specification (Condenser)

mm

Row 21.65/Fin 1.6/Tube 25

Row 21.65/Fin 1.6/Tube 25

Row 21.65/Fin 1.8/Tube 25

Heat Exchanger Dimensions

mm

650x210x550

650x210x550

740x315x750

Evaporator Rows

rows

2

2

2

Max Working Pressure (Low Side)

Mpa

2.1

2.1

2.1

Max Working Pressure (High Side)

Mpa

4.2

4.2

4.2

Outdoor Unit Dimensions (L×W×H)

mm

842x286x611

842x286x611

880x360x800

Indoor Unit Dimensions (L×W×H)

mm

780x270x200

995x320x200

1030x315x220

Outdoor Unit Net Weight

kg

41

45

62

Indoor Unit Net Weight

kg

10

13

17

Operational Characteristics

Outdoor Unit Noise

dB(A)

50

51

52

Indoor Unit Noise (Low/Med/High)

dB(A)

24/37/41

24/37/41

25/38/42

Refrigerant

R32

R32

R32

Operating Modes

Heating/Cooling

Heating/Cooling

Heating/Cooling

Applicable Ambient Temperature Range

°C

-25~43

-25~43

-25~43

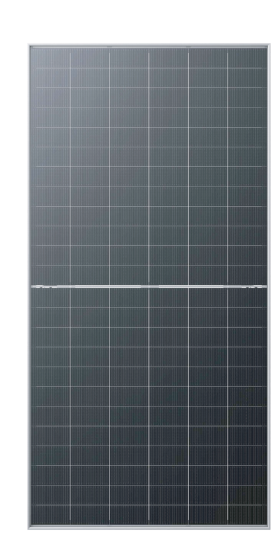

Parameter

JKM570N-72HL4-BDV

JKM575N-72HL4-BDV

JKM580N-72HL4-BDV

JKM585N-72HL4-BDV

JKM590N-72HL4-BDV

Module Model

STC / NOCT

STC / NOCT

STC / NOCT

STC / NOCT

STC / NOCT

Max Power (Pmax)

Wp

570Wp / 430Wp

575Wp / 433Wp

580Wp / 437Wp

585Wp / 441Wp

590Wp / 445Wp

Optimum Operating Voltage (Vmp)

V

43.58V / 40.56V

43.73V / 40.73V

43.88V / 40.89V

44.02V / 41.05V

44.17V / 41.21V

Optimum Operating Current (Imp)

A

13.08A / 10.59A

13.15A / 10.64A

13.22A / 10.69A

13.29A / 10.74A

13.36A / 10.79A

Open Circuit Voltage (Voc)

V

52.10V / 39.60V

52.30V / 39.75V

52.50V / 39.90V

52.70V / 40.05V

52.90V / 40.20V

Short Circuit Current (Isc)

A

13.83A / 11.16A

13.89A / 11.21A

13.95A / 11.26A

14.01A / 11.31A

14.07A / 11.36A

Efficiency (%)

%

22.07%

22.26%

22.45%

22.65%

22.84%

Operating Temperature Range (°C)

°C

-40℃~+85℃

Max System Voltage

VDC

1500VDC (IEC)

Max Series Fuse Current

A

30A

Power Output Tolerance

%

0~+3%

Temperature Coefficient of Max Power (Pmax)

%/°C

-0.29%/°C

Temperature Coefficient of Open Circuit Voltage (Voc)

%/°C

-0.25%/°C

Temperature Coefficient of Short Circuit Current (Isc)

%/°C

0.045%/°C

Nominal Operating Cell Temperature (NOCT)

°C

45±2°C

Reference: Bifacial Factor

%

80±5%

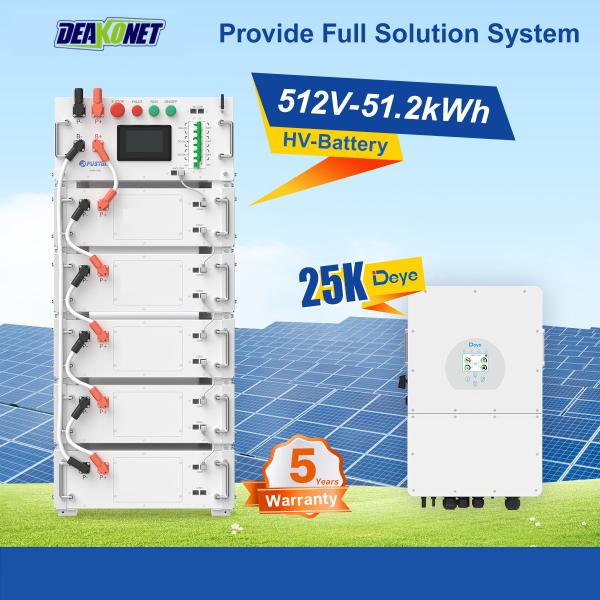

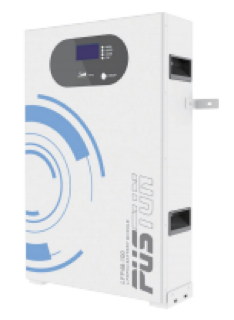

Parameter

Model

LFP51.2-200

LFP51.2-300

LFP51.2-300

LFP51.2-400

Usable Electricity

10.24kWh

15.36kWh

15.36kWh

20.48kWh

Rated Capacity

200Ah

300Ah

300Ah

400Ah

BMS Configuration

16S200A

16S200A

16S200A

16S200A

Rated Voltage

51.2V

51.2V

51.2V

51.2V

Operating Voltage Range

V

41.6V-58.4V

41.6V-58.4V

41.6V-58.4V

41.6V-58.4V

Charge Current

A

100A

150A

150A

200A

Charge and discharge current

200A Continuous @250A 500ms

200A Continuous @250A 500ms

200A Continuous @250A 500ms

200A Continuous @250A 500ms

Rated Charge Power

kW

5.12kW

7.68kW

7.68kW

10.24kW

Charge and discharge power

5.12kW Continuous @6.4kW 500ms

7.68kW Continuous @9.6kW 500ms

7.68kW Continuous @9.6kW 500ms

10.24kW Continuous @12.8kW 500ms

Peak Current

10.24kW Continuous @12.8kW 500ms

10.24kW Continuous @12.8kW 500ms

10.24kW Continuous @12.8kW 500ms

10.24kW Continuous @12.8kW 500ms

Short-Circuit Current

0.64kA@100us

0.76kA@100us

0.76kA@100us

0.8kA@100us

Weight

kg

84 $pm 3%$kg

125 $pm 3%$kg

120 $pm 3%$kg

190 $pm 3%$kg

Dimensions (L*W*H)

mm

410*240*640

550*270*825

720*260*580

585*280*1120

Cable Outlet Mode

Upper

Flank

Behind

Flank

Cycle Life

≥6000 Cycles, 80%DOD, 25℃

≥6000 Cycles, 80%DOD, 25℃

≥6000 Cycles, 80%DOD, 25℃

≥6000 Cycles, 80%DOD, 25℃

Communication Mode

CAN, RS485, RS232

CAN, RS485, RS232

CAN, RS485, RS232

CAN, RS485, RS232

Parallel Number

Recommend 6 in parallel (Maximum support 16 in parallel)

Recommend 6 in parallel (Maximum support 16 in parallel)

Recommend 6 in parallel (Maximum support 16 in parallel)

Recommend 6 in parallel (Maximum support 16 in parallel)

Remote Data

Bluetooth / Wifi (Optional)

Bluetooth / Wifi (Optional)

Bluetooth / Wifi (Optional)

Bluetooth / Wifi (Optional)

Operating Temperature

°C

Charging: 0℃~+50℃ / Discharging: -20℃~+60℃

Charging: 0℃~+50℃ / Discharging: -20℃~+60℃

Charging: 0℃~+50℃ / Discharging: -20℃~+60℃

Charging: 0℃~+50℃ / Discharging: -20℃~+60℃

Relative Humidity

0~95%

0~95%

0~95%

0~95%

Storage Temperature

°C

< 3 Months -10℃~+25℃ / < 1 Year 0℃~25℃

< 3 Months -10℃~+25℃ / < 1 Year 0℃~25℃

< 3 Months -10℃~+25℃ / < 1 Year 0℃~25℃

< 3 Months -10℃~+25℃ / < 1 Year 0℃~25℃

Supported Inverter Brands

SMA/Growatt/TBB/Deye/GOODWE/Huawei/Schneider/Victron energy/SOFAR/INVT

Installation Mode

Wall hanging / Floor mounting

Wall hanging / Floor mounting

Wall hanging / Floor mounting

Wall hanging / Floor mounting

Protection Level

IP20

IP20

IP20

IP20

Standards & Certification

MSDS UN38.3

MSDS UN38.3

MSDS UN38.3

MSDS UN38.3
