N6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical Industries
N6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical Industries
N6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical Industries
N6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical Industries
N6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical Industries
N6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical Industries
Specifications
Brand Name :
Senphus
Model Number :
N6
Certification :
ISO9001
Place of Origin :
China
MOQ :
5kg
Payment Terms :
T/T, D/P
Supply Ability :
30 Tons per day
Delivery Time :
3 days
Packaging Details :
Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Place of Orig. :
Jiangsu, China
Type :
Pure Nickel
Density :
8.9
Thermal Conductivity :
69
Electrical Resistivity at 20°C :
5.3-6.4
Color :
Silvery white
Tensile strength（N/mm²） :
≥450
Elongation（% at L0=100 mm） :
15-25
Thermal Linear Expansion Coeff. (20-95 °C) :
13
Description

N6 Pure Nickel Metal High-Purity and Corrosion-Resistant for Electronics and Chemical Industries

N6 Pure Nickel Metal is a high-purity nickel material widely recognized for its excellent corrosion resistance, good thermal and electrical conductivity, and high ductility. It is used in a range of industries that require reliable performance in harsh chemical environments and high-purity applications.

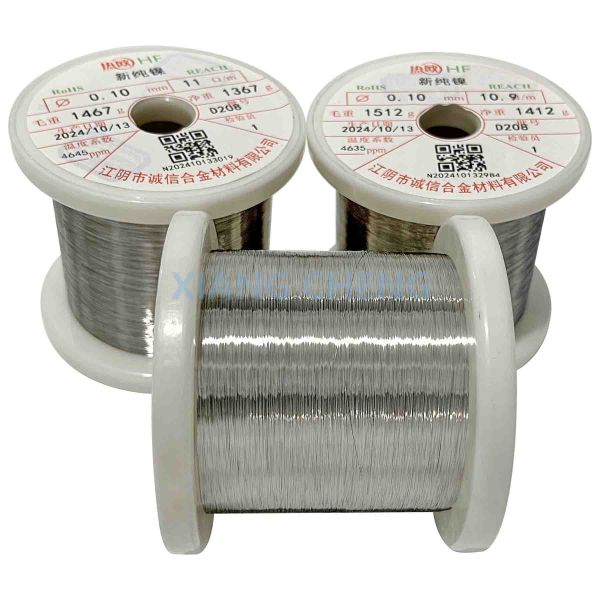

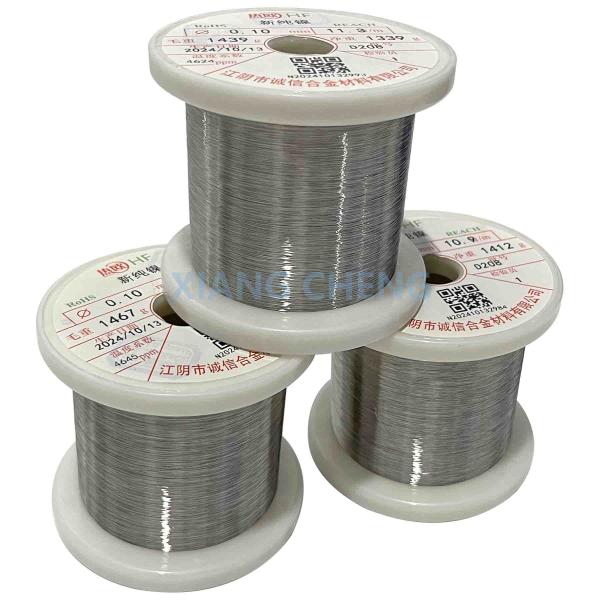

N6 Pure Nickel Wire is a versatile and reliable material known for its high purity (99.5%), excellent corrosion resistance, and good mechanical and electrical properties. It is a preferred choice for demanding industrial, chemical, marine, and electronic applications where performance and durability in harsh environments are crucial.

Nominal Chemical Composition (%)

Alloy Ni C Fe Si Mn P S Cu As Pb Zn Sn Mg Bi Sb
N6 ≥ 99.5 ≤ 0.10 ≤ 0.1 ≤ 0.1 ≤ 0.05 ≤ 0.002 ≤0.005 ≤0.1 ≤0.002 ≤0.002 ≤0.0027 ≤0.002 ≤0.1 ≤0.002 ≤0.002

Size Range

Type Dia. (mm) Width (mm) Thickness (mm)
Wire 0.04 - 12.0 - -
Ribbon - 2.0 ≥ 0.08

Physical Properties (at room temperature)

Alloy Density (g/cm3) Thermal Conductivity (W/m K) Thermal Linear Expansion Coeff. (20-95 ℃) (10-6/K) Electrical Resistivity at 20 ℃ (μΩ-cm)
N6 8.9 69 13 5.3-6.4

Mechanical Properties (for cold drawn annealed wire)

Alloy Tensile strength (N/mm2) Elongation (% at L0=100mm)
Min Max Min Max
N6 450 - 15 25

Some Key Features of Pure Nickel Wire N6 alloy include:

  • High Nickel Content (99.5%)

N6 pure nickel wire contains a minimum of 99.5% nickel, ensuring superior resistance to corrosion and oxidation in diverse environments.

  • Exceptional Corrosion Resistance

Highly resistant to alkalis, acids, and neutral solutions, including caustic soda and seawater.

Effective in resisting pitting, stress corrosion cracking, and hydrogen embrittlement.

  • Good Mechanical Properties

Moderate tensile strength combined with excellent ductility allows for easy forming into wires and other shapes.

Retains mechanical integrity in both high and low-temperature conditions.

  • Thermal and Electrical Conductivity

Offers excellent thermal and electrical conductivity, making it ideal for applications in the electronics and electrical industries.

  • Non-Magnetic Properties

N6 is non-magnetic, a critical characteristic for applications where magnetism must be avoided, such as sensitive electronic components and aerospace parts.

  • High Temperature Resistance

Performs reliably in elevated temperatures, retaining its properties up to approximately 600°C (1112°F).

  • Ease of Fabrication

Easily machinable, weldable, and formable, allowing it to be manufactured into thin wires, sheets, or other required configurations.

Applications

  • Commonly used in:

Electrical and electronic components such as connectors, electrodes, and resistance wires.

Chemical and petrochemical industries for equipment exposed to corrosive environments.

Marine and aerospace industries for parts requiring corrosion resistance and durability.

  • Often utilized in applications requiring high-purity materials to prevent contamination.

N6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical IndustriesN6 Pure Nickel Metal High Purity Corrosion Resistant For Electronics And Chemical Industries
