Stainless Steel Shell Tube Evaporator Oils And Fats Industry Pharmaceutical Industry
Stainless Steel Shell Tube Evaporator Oils And Fats Industry Pharmaceutical Industry
Specifications
Delivery Time :
45-60 working days
Payment Terms :
T/T,L/C
Material :
Carbon Steel/SS/Duplex SS/Titanium/Nickel-Based Alloy/Copper Alloy
MOQ :
1set
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Supply Ability :
6000sets/Year
Style :
Steel Type
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Usage :
Oils and Fats Industry,Pharmaceutical industry，Oils and Fats Industry， etc
Size :
Customzied
Price :
Negotiation
Brand Name :
Yiteng
Place of Origin :
Jiangsu China
MOQ :
1 Set
Application :
Heater, Cooler, Condenser
Description

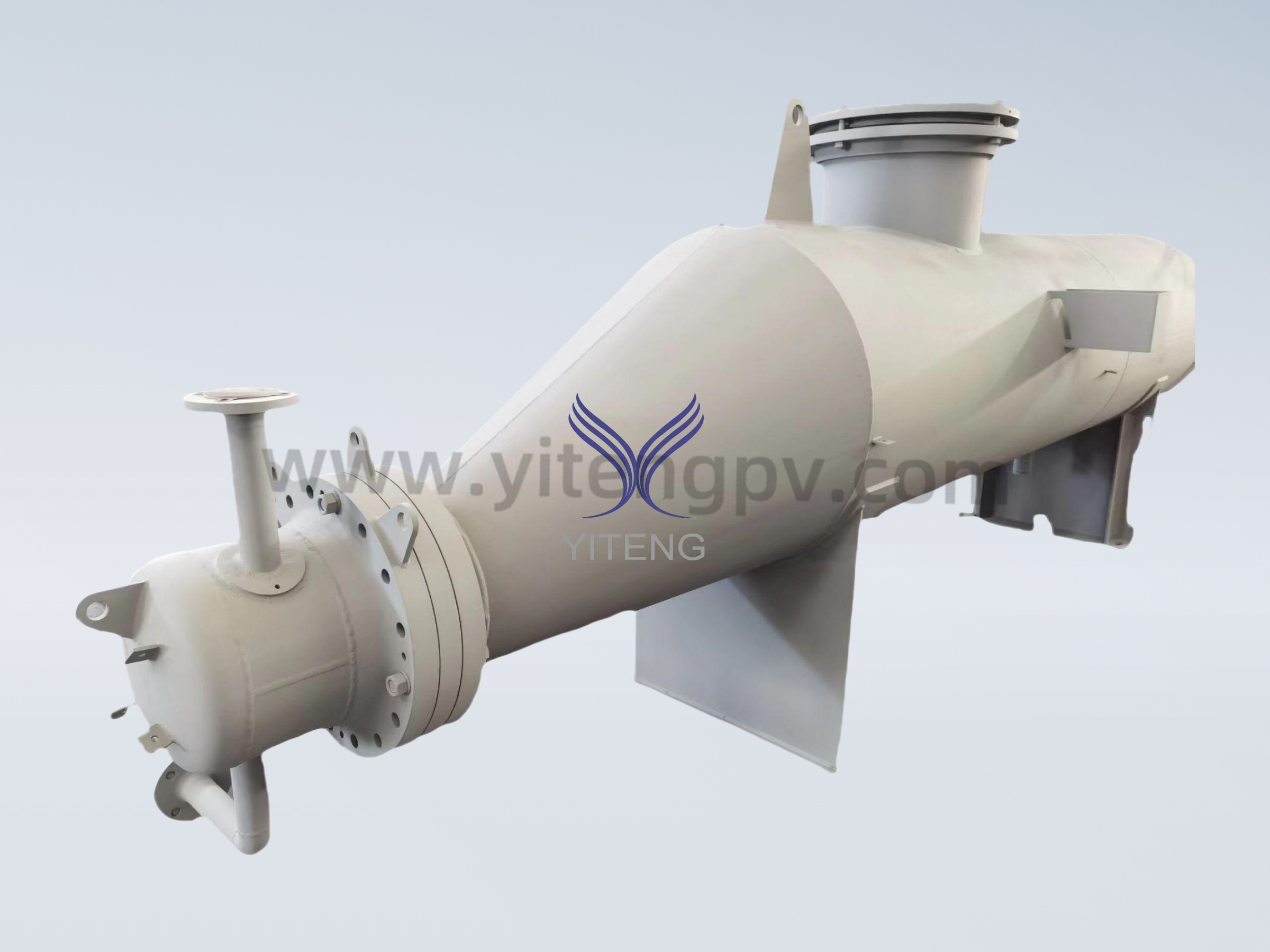

Stainless Steel Shell Tube Evaporator
Product Description

Shell and tube evaporator is a classic heat exchange equipment widely used in refrigeration, HVAC, chemical processing and food industrial systems. It consists of a pressure vessel shell and internal heat transfer tube bundles, realizing efficient heat transfer between refrigerant and process medium.

Product parameter

Parameter

Specification

Unit

Remarks

Cooling Capacity

50 - 5000

kW

Custom design available

Heat Transfer Area

5 - 1000

m²

Depending on application

Evaporating Temperature

-40 to +15

°C

Refrigeration duty

Design Temperature

-40 to +120

°C

Customized

Design Pressure

0.6 - 4.5

MPa

Higher pressure optional

Type tubes Optional

Plain/Finned/Threaded/Corrugated tube

Tube Material

CarbonSteel/SS/Duplex SS/Titanium/Nickel-Based Alloy/Copper Alloy

-

Optional

Shell Material

Carbon Steel / SS304 / SS316L

-

Optional

Tube Diameter

12.7 / 15.88 / 19.05 / 25.4

mm

Standard sizes

Tube Length

1000 - 8000

mm

Customized

Refrigerant

R134a, R410A, R407C, NH3, CO2

-

Application dependent

Water Flow Rate

5 - 1000

m³/h

Reference value

Pressure Drop

<50

kPa

Typical

Heat Transfer Efficiency

>85

%

Operating condition dependent

Connection Size

DN50 - DN500

-

Customized

Service Life

10 - 25

Years

With proper maintenance

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!
