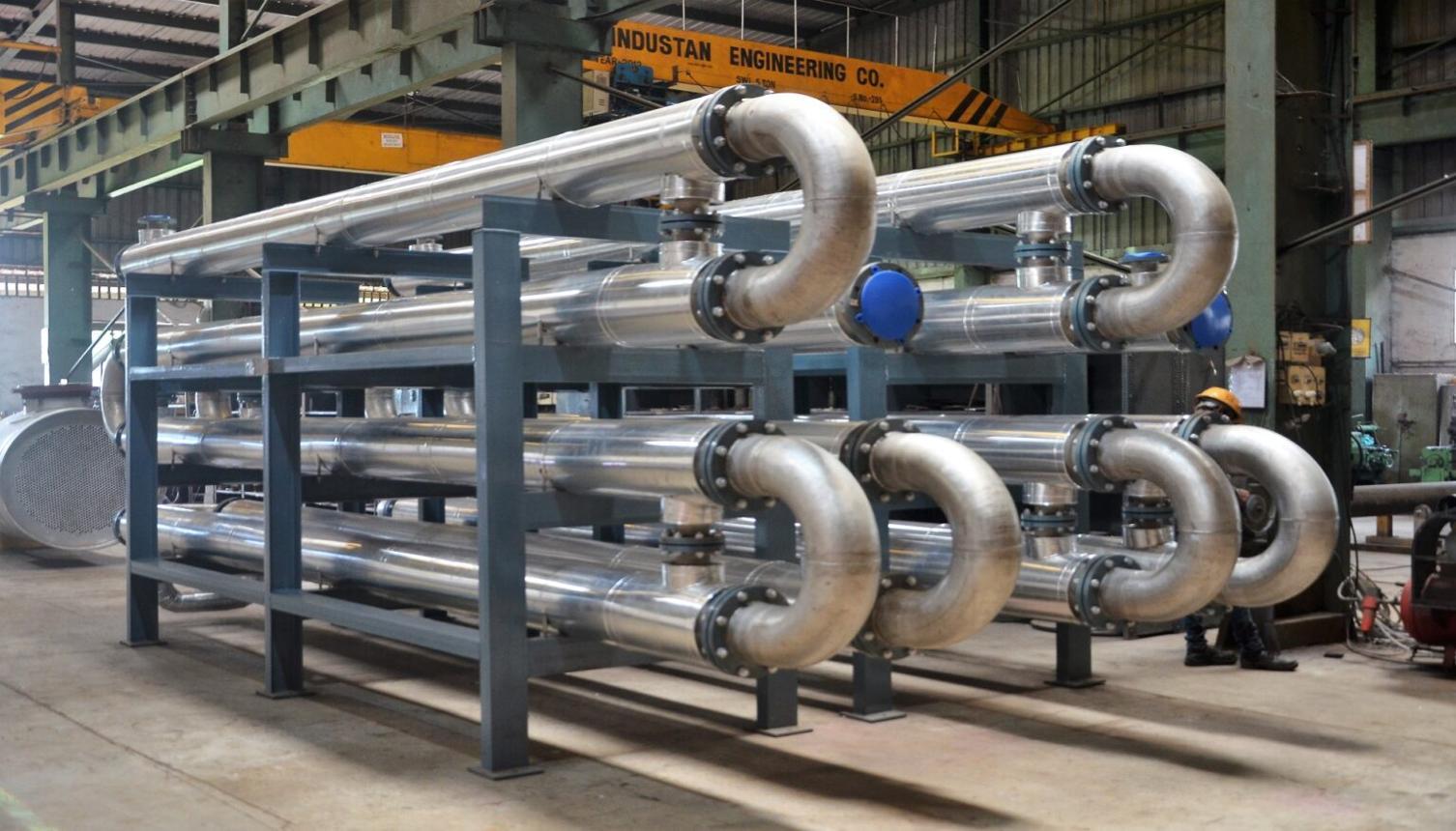

Compact Hair Pin Type Heat Exchanger Food Beverage Pharmacy Cosmetic
Compact Hair Pin Type Heat Exchanger Food Beverage Pharmacy Cosmetic
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
L/C,T/T
Price :
Negotiation
Usage :
Dairy, Food, Beverage, Pharmacy, Cosmetic, etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Carbon Steel/SS/Duplex SS/Titanium/Nickel-Based Alloy/Copper Alloy
Place of Origin :
Jiangsu China
Industry :
Food Industry
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Brand Name :
Yiteng
Application :
Heater, Cooler, Condenser
Description

Compact Hairpin Heat Exchanger

Product Description

Compact Hairpin Heat Exchanger is a space-saving heat transfer solution designed for industrial applications where installation area, thermal efficiency, and equipment reliability are equally important.

Featuring a compact hairpin configuration with efficient counter-current flow, this exchanger provides high heat transfer performance within a smaller footprint compared with many conventional heat exchanger designs. The compact structure makes it especially suitable for skid-mounted systems, modular process units, offshore facilities, and industrial projects where space optimization is a key requirement.

Wuxi Yiteng Pressure Vessel Co., Ltd. manufactures customized Compact Hairpin Heat Exchanger solutions for oil & gas, chemical processing, energy systems, and industrial equipment manufacturers. By combining advanced pressure equipment fabrication, engineering optimization, and customized manufacturing capability, Yiteng helps global customers achieve efficient thermal solutions in limited installation spaces.

Product parameter

Parameter

Typical Value/Range

Remark

Design Standard

SH/T 3119-2016/ASME VIII Div.1/TEMA/EN13445/API660

International standards

Heat Transfer Area

1~500m²

Custom sizes available

Design Pressure

-0.1~35 MPa (-1~350 bar)

Ultra-high-pressure models up to 50 MPa

Design Temperature

-196°C~+600°C

Cryogenic to high-temperature range

Shell Material

Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy

Corrosion-resistant options

Tube Bundle Material

Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy

Optional tube types: Plain tube/Finned tube/Threaded tube/Corrugated tub

Tube Diameter/Length

φ10~φ60 mm/1~20m

U-tube/straight tube options

Tube-Tube Sheet Connection

Welded/Tube Expanded/Strength Weldng+Light Expansion

Leak-proof design

Number of Tube Passes

1~8 Passes

Multi-pass flow for temperature difference optimization

Baffle Type

Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut

Controls shell-side flow

Connection Standard

Flange with ANSI/DIN/GB/JIS Standard

DN25~DN1000

Heat exchanger type

BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES

The exchanger type shall be determined based on customer requirements or thermal calculation.

Application Scenarios

Offshore & Marine Process Systems

Compact hairpin heat exchangers are widely applied in:

  • Offshore platforms
  • Marine process equipment
  • Compact utility systems
  • Limited-space installations

The reduced footprint makes them suitable for challenging environments.

Skid-Mounted Process Equipment

Used by:

  • Equipment package suppliers
  • EPC contractors
  • Process system integrators

Applications include:

  • Gas treatment skids
  • Chemical process packages
  • Thermal control units

Oil & Gas Applications

Suitable for:

  • Gas cooling systems
  • Compressor packages
  • Hydrocarbon processing
  • Process fluid heating

Compact design helps optimize equipment package size.

Industrial Plant Upgrades

Applied in:

  • Existing facility modification
  • Equipment replacement projects
  • Production expansion

Helping customers improve thermal performance without major layout changes.

Why Choose Yiteng?

1. Engineering Capability for Space-Limited Applications

Compact equipment requires more than reducing dimensions.

Yiteng evaluates:

✓ Heat transfer requirements
✓ Installation limitations
✓ Piping arrangement
✓ Operating conditions

Ensuring compact design without sacrificing performance.

2. Experience Supporting Equipment Integration Projects

Many customers purchase heat exchangers as part of complete systems.

Yiteng supports:

  • Skid manufacturers
  • Equipment integrators
  • Engineering contractors

Providing manufacturing cooperation from design review to final delivery.

3. Flexible Manufacturing for Customized Dimensions

Standard equipment may not fit every project.

Yiteng provides:

✓ Customized tube lengths
✓ Special connection layouts
✓ Different material selections
✓ Project-specific fabrication

Helping customers solve difficult installation challenges.

4. Focus on Long-Term Operational Efficiency

Compact equipment must maintain reliable performance after installation.

Yiteng focuses on:

  • Structural reliability
  • Thermal performance
  • Material quality
  • Manufacturing consistency

Supporting stable operation throughout equipment service life.

Customer Trust Data

Global Compact Heat Transfer Equipment Experience
