Food Industry Stainless Steel Tube Sheet Heat Exchanger Carbon Steel
Food Industry Stainless Steel Tube Sheet Heat Exchanger Carbon Steel
Specifications
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Usage :
Dairy, Food, Beverage, Pharmacy, Cosmetic, etc
Material :
Carbon Steel/SS/Duplex SS/Titanium/Nickel-Based Alloy/Copper Alloy
Brand Name :
Yiteng
Model Number :
BEM/BES/AES/BEU
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/EAC/DOSH/MOM/AS1210
Payment Terms :
T/T,L/C
Application :
Heater, Cooler, Condenser
Place of Origin :
Jiangsu China
Supply Ability :
6000sets/Year
Price :
Negotiation
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Industry :
Food Industry
Description

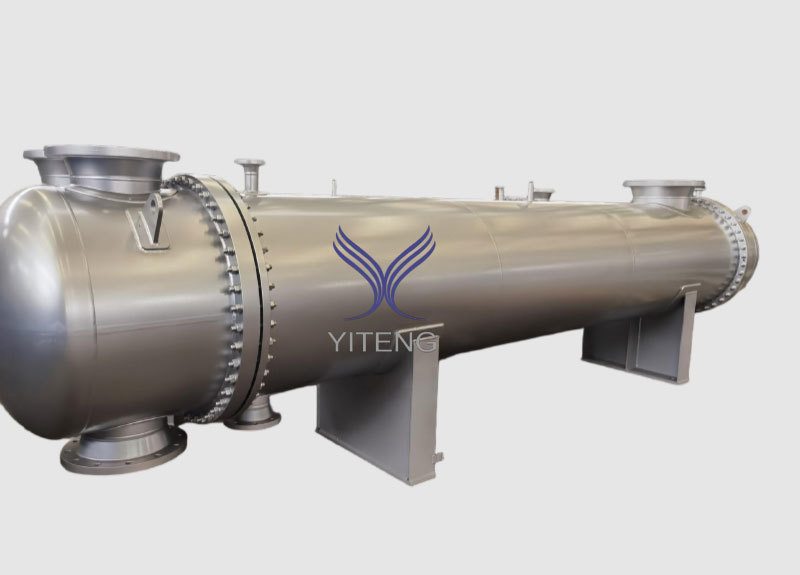

Stainless Steel Tube Sheet Heat Exchanger
Product Description
Shell & tube heat exchanger, also named tube sheet heat exchanger, is the most widely used heat transfer equipment in chemical, petrochemical, power, energy and metallurgical industries. It mainly consists of a cylindrical shell, tube bundle, tube sheets, baffles, front & rear channel heads, nozzles and expansion joints. It can be designed and manufactured in accordance with GB/T 151, ASME VIII Div.1, TEMA, EN 13445, API 660 and Russian EAEU & GOST standards.

Product parameter

Parameter

Typical Value/Range

Remarks

Design Standard

GB151/ASME VIII Div.1/TEMA/EN13445.TEMA/API660

International standards

Heat Transfer Area

1~5000m²

Custom sizes available

Design Pressure

-0.1~35 MPa (-1~350 bar)

50 MPa
Ultra-high-pressure models up to 50 MPa

Design Temperature

-196°C~+600°C

Cryogenic to high-temperature range

Shell Material

Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy

Corrosion-resistant options

Tube Bundle Material

Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy


Optional tube types: Plain tube/Finned tube/Threaded tube/Corrugated tube

Tube Diameter/Length

φ10~φ60 mm/1~20m

U-tube/straight tube options


Tube-Tube Sheet Connection

Welded/Tube Expanded/Strength Weldng+Light Expansion

Leak-proof design

Number of Tube Passes

1~8 Passes

Multi-pass flow for temperature difference optimization

Baffle Type

Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut

Controls shell-side flow

Connection Standard

Flange with ANSI/DIN/GB/JIS Standard

DN25~DN1000

Heat exchanger type

BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES

The exchanger type shall be determined based on customer requirements or thermal calculation.

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!
