U Tube Bundle Heat Exchanger Steel Type Food Beverage Pharmacy
U Tube Bundle Heat Exchanger Steel Type Food Beverage Pharmacy
Specifications
Style :
Steel Type
Size :
Customzied
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Usage :
Dairy, Food, Beverage, Pharmacy, Cosmetic, etc
Place of Origin :
Jiangsu China
Material :
Stainless Steel
MOQ :
1 Set
Supply Ability :
6000sets/Year
Delivery Time :
45-60 working days
Application :
Heater, Cooler, Condenser
Brand Name :
Yiteng
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Price :
Negotiation
Payment Terms :
T/T,L/C
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
MOQ :
1set
Description
Product Description

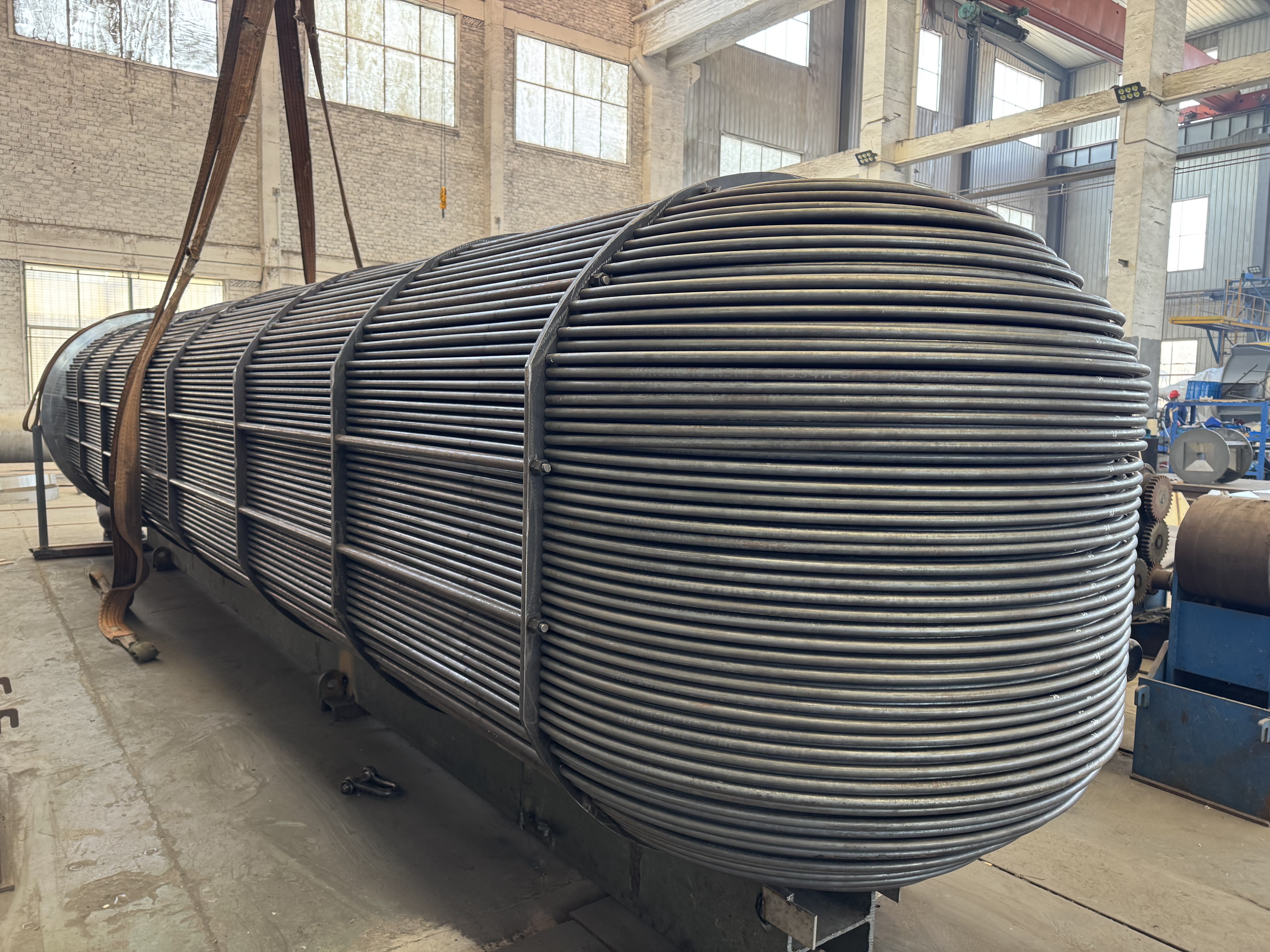

A U Tube Bundle is the core heat transfer component of a U-Tube Heat Exchanger, consisting of a tube sheet, U-shaped tubes, baffles, tie rods, spacers, and supporting structures. Designed to accommodate thermal expansion between the shell and tube sides, the U-tube configuration eliminates the need for an expansion joint and provides excellent reliability under high-temperature and high-pressure operating conditions.

The tube bundle can be supplied as a replacement unit for existing heat exchangers or as part of newly manufactured shell and tube heat exchangers. It is widely used in petrochemical, chemical, pharmaceutical, power generation, oil & gas, food processing, and marine industries.

Product parameter

Parameter

Typical Value/Range

Remark

Design Standard

GB/T151/ASME VIII Div.1/TEMA/EN13445/API660/TR CU 032/2013(ТР ТС 032/2013)

International standards

Heat Transfer Area

1~5000m²

Custom sizes available

Design Pressure

-0.1~35 MPa (-1~350 bar)

Ultra-high-pressure models up to 50 MPa

Design Temperature

-196°C~+600°C

Cryogenic to high-temperature range

Shell Material

Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy

Corrosion-resistant options

Tube Bundle Material

Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy

Optional tube types: Plain tube/Finned tube/Threaded tube/Corrugated tub

Tube Diameter/Length

φ10~φ60 mm/1~20m

U-tube/straight tube options

Tube-Tube Sheet Connection

Welded/Tube Expanded/Strength Weldng+Light Expansion

Leak-proof design

Number of Tube Passes

1~8 Passes

Multi-pass flow for temperature difference optimization

Baffle Type

Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut

Controls shell-side flow

Connection Standard

Flange with ANSI/DIN/GB/JIS Standard

DN25~DN1000

Heat exchanger type

BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES

The exchanger type shall be determined based on customer requirements or thermal calculation.

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!

Packaging & Shipping

U Tube Bundle Heat Exchanger Steel Type Food Beverage Pharmacy

Send your message to this supplier
Send Now

U Tube Bundle Heat Exchanger Steel Type Food Beverage Pharmacy

Ask Latest Price
Watch Video
Product Detail
Style :
Steel Type
Size :
Customzied
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Usage :
Dairy, Food, Beverage, Pharmacy, Cosmetic, etc
Place of Origin :
Jiangsu China
Material :
Stainless Steel
Contact Supplier
video
U Tube Bundle Heat Exchanger Steel Type Food Beverage Pharmacy

Wuxi Yiteng Pressure Vessel Co. Ltd

Verified Supplier
1 Years
jiangsu
Since 2012
Business Type :
Manufacturer
Main Products :
Shell Tube Heat Exchanger, Thin Film Evaporator, Short Path Evaporator
Total Annual :
>6000sets/Year
Employee Number :
160~180
Certification Level :
Verified Supplier
