Single Multi Pass ASME U Tube Heat Exchanger Carbon Steel Custom
Single Multi Pass ASME U Tube Heat Exchanger Carbon Steel Custom
Specifications
Style :
Steel Type
Size :
Customzied
Delivery Time :
45-60 working days
Payment Terms :
T/T,L/C
Usage :
Oils and Fats Industry,Pharmaceutical industry，Oils and Fats Industry， etc
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Price :
Negotiation
MOQ :
1 Set
Place of Origin :
Jiangsu China
Supply Ability :
6000sets/Year
Application :
Heater, Cooler, Condenser
Brand Name :
Yiteng
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
MOQ :
1set
Material :
Stainless Steel
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Description
ASME U Tube Heat Exchanger
Product Description

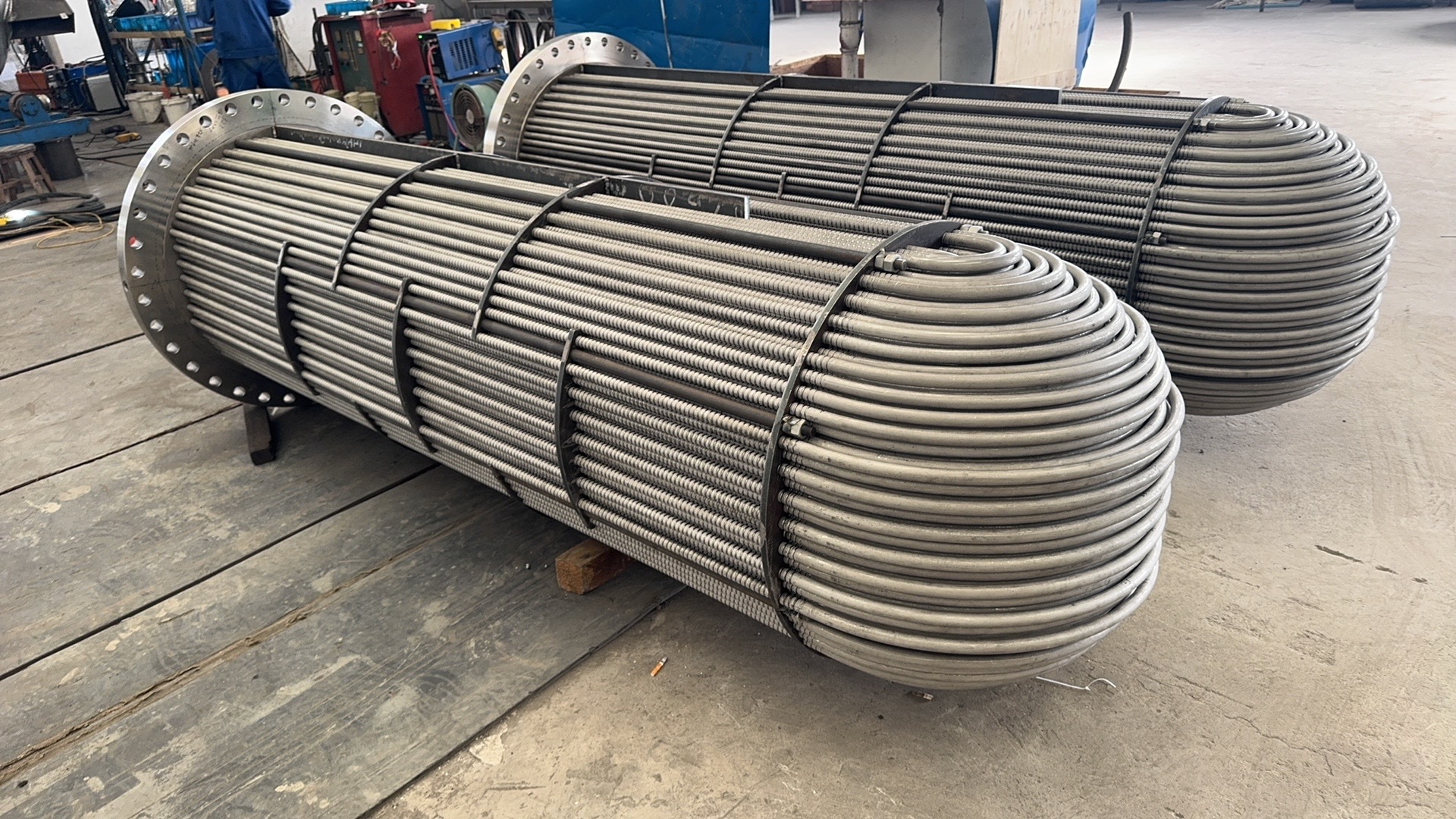

The U-tube heat exchanger is a classic type of shell-and-tube heat exchanger defined by TEMA, GB/T 151, EN 13445 and ASME VIII Div.1 standards. All heat transfer tubes are bent into U-shapes, with both tube ends securely welded and expanded onto a single tube sheet.
Its structural feature avoids the floating head sealing structure, delivering lower leakage risk and better performance under high pressure and high temperature working conditions. It is widely applied in high-temperature, high-pressure processes such as refinery, chemical processing, power plant and steam heating systems.

Product parameter

Parameter

Specification

Unit

Remarks

Heat Transfer Area

5-1500

m²

Custom Design

Design Pressure

0.6-10.0

MPa

Optional ASME/PED

Design Temperature

-20~400

°C

Application dependent

Type tubes Optional

Plain/Finned/Threaded/Corrugated tube

Tube Material

Carbon Steel

-

CS

Shell Material

Carbon Steel

-

CS

Tube Diameter

19.05 / 25.4

mm

Standard

Tube Length

1-12

m

Customized

Flow Type

Single/Multi Pass

-

Optional

Connection Size

DN50-DN1000

-

Customized

Service Life

10-20

Years

Proper maintenance

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!
