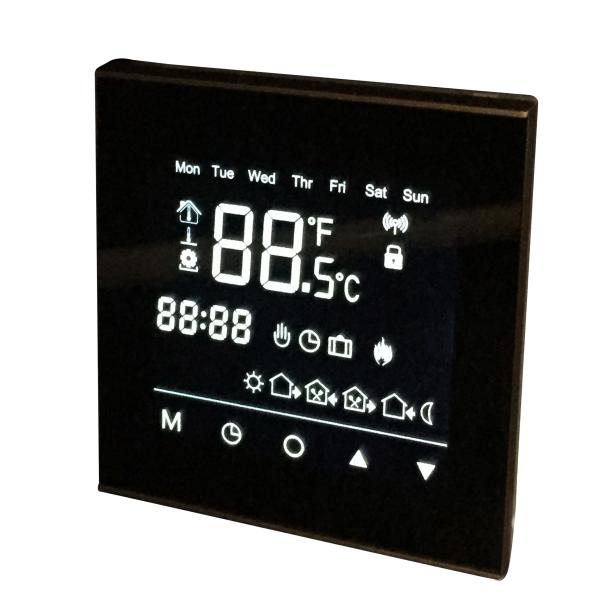

Floor Heating Touch Screen Thermostat Weekly Programmable Thermostat

Introduction

1. Weekly circulation digital programming thermostat with LCD screen, which has 6-event everyday. Manual mode and programme mode could be selected. The thermostat is recommended for control of electric heating devices or on/off valve actuator used in hydronic floor heating.The thermostat controlled by Internal and external sensor temperature.

2. Big Glass touch screen , more comfortable pressing.

3. 6 periods per day program for setting.

4. 5+2,6+1,7days week program function for choice.

5. Anti-freezing Function.

6. Temperature differential adjustment.

7. Easy for manipulation and installation.

8. Adopt hardened metal shell,antistatic,preventing magnetic strong interference.

9. Adopt newest A＋LCD screen,with high contrast ration,high brightness,last longer and work better.

10. Durable and high quality floor heating controller.

11. We reduce energy consumption and improve compatibility based on electrical safety.

Application

For the control of warm-water(floor) heating systems and direct electric heatings systems used in Commercial buildings, Residential buildings, Light industrial buildings.

Programming
Choice of 7 day, 5/2 day programmable or
non-programmable (installer selectable);
6 time and 4 temperature settings every day;
pre-programmed or personalized schedule;
Energy saving up to 33%

Display
Large, touchscreen display;
European standard installation box;
White lighted display for easier low-light viewing;
Larger, easy-to-read character size;
Clean, uncluttered touchscreen display provides
Easier navigation.

Comfort & Convenience
Intuitive menu-driven set-up, programming and operation,
Permanent program retention during power loss;
Setpoint temperature limited range capable;
Enhanced touchscreen security prevents tampering.
Can switch upto 16 amps (230v)
Temperature display resolution: 0.5 C;

A / AF/ F models all in one
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the
floor temperature
Each thermostat is equipped with built-in sensor
and a 3 meter floor sensor. The floor sensor can be extended.

Specifications
* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions:121mm x 80mm x18mm
* Backlight life: 5,000 hours.

Useful settings
Vacation mode(frost protection mode)
Switching differential setting
Floor temperature limit


Packing details
1pc/inner box, 50pcs/carton
Carton size: 51x22x36cm
