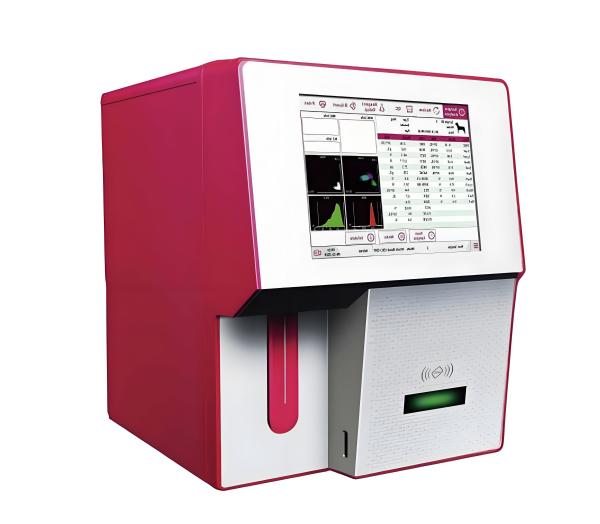

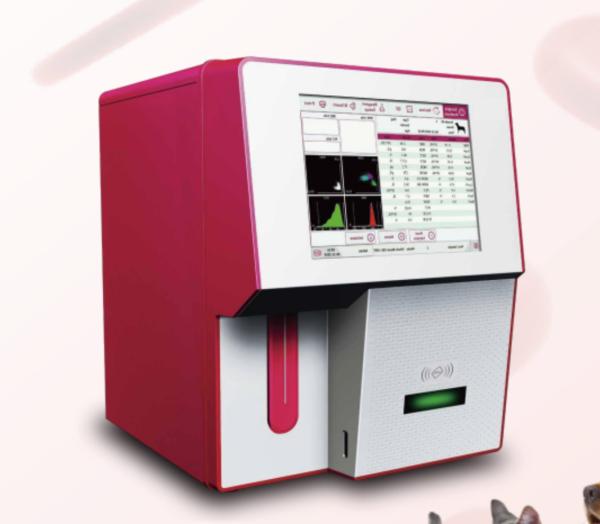

Manual Veterinary Hematology Instruments Analyzer With TriLaser Flow Cytometry
Manual Veterinary Hematology Instruments Analyzer With TriLaser Flow Cytometry
Manual Veterinary Hematology Instruments Analyzer With TriLaser Flow Cytometry
Manual Veterinary Hematology Instruments Analyzer With TriLaser Flow Cytometry
Manual Veterinary Hematology Instruments Analyzer With TriLaser Flow Cytometry
Manual Veterinary Hematology Instruments Analyzer With TriLaser Flow Cytometry
Specifications
Brand Name :
HDRMEDICO
Model Number :
VH50
Certification :
No
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C,T/T,Westen Union,Money Gram,Paypal/VTB
Supply Ability :
3000pcs/month
Delivery Time :
10-15days
Packaging Details :
Carton
Product name :
5-Part Veterinary Hematology Analyzer5
Reagent :
DIFF Lyse, LH lyse Diluent, Probe cleanser
Quality :
control 3-level QC L-J QC, X-B QC
Interface :
4 USB ports, 1 Network port
Storage :
60,000 results with scattergrams & histograms
Calibration :
Manual calibration, auto calibration
Dimension :
430(D) ×350(W)x430(H)mm|
Net weight :
28kg
Description
5-Part Veterinary Hematology Analyzer with Tri-Laser Flow Cytometry for 19 Species
Product Specifications
Attribute Value
Product name 5-Part Veterinary Hematology Analyzer5
Reagent DIFF Lyse, LH lyse Diluent, Probe cleanser
Quality control 3-level QC L-J QC, X-B QC
Interface 4 USB ports, 1 Network port
Storage 60,000 results with scattergrams & histograms
Calibration Manual calibration, auto calibration
Dimension 430(D) ×350(W)x430(H)mm
Net weight 28kg
Product Overview

Leveraging tri-angle laser scattering and flow cytometry technology, this next-generation analyzer delivers precise 5-part WBC differentiation across 19 clinically validated species. Engineered for reliability and user efficiency in veterinary clinics and labs, it combines robust hardware with intelligent software for streamlined operation.

Core Technology & Performance
  • Tri-Angle Laser Scattering + Flow Cytometry: Ensures accurate 5-part WBC differentiation (Neutrophils, Lymphocytes, Monocytes, Eosinophils, Basophils).
  • Long-Life Semiconductor Laser: Provides consistent optical performance for reliable cell classification.
  • Smart Counting Mode: Automatically optimizes analysis parameters for efficiency.
  • Species-Specific Accuracy: Validated through clinical testing for 19 animal species.
Precision Engineering & Hardware
  • Ceramic Syringe: Guarantees precise aspiration of samples and reagents, minimizing waste.
  • Premium Liquid Handling System: Features SMC valves and KNF pump for leak-free fluid control.
  • Simplified Fluidics: Reduces maintenance complexity and enhances system durability.
User-Centric Operation
  • Integrated 10.4-inch Touch Screen: No external PC required - all controls and diagnostics on-device.
  • Built-In Thermal Printer: Instant report generation with editable print templates.
  • External Printer Support: Connect via USB for flexible output options.
  • RFID Card Reader: Automatically reads reagent information (lot, expiry, volume).
  • Optional Barcode Scanner: Enables quick patient ID/data input.
Efficient Reagent Management
  • Minimal Reagent Consumption: Uses only 3 reagents (2 Lyse, 1 Diluent), reducing operational costs.

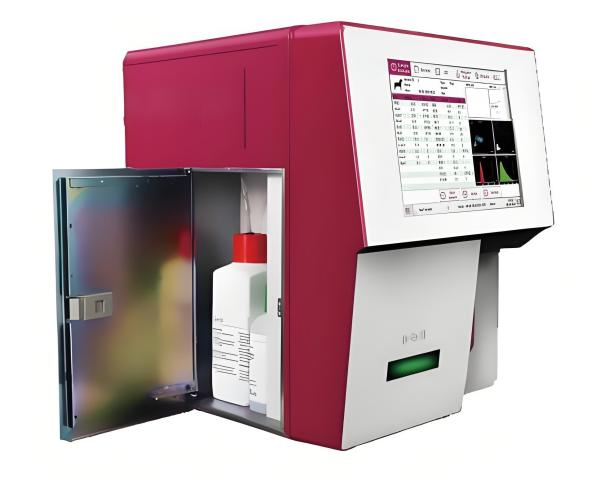

  • Space-Saving Design: Reagent bottles stored internally to conserve bench space.
Technical Specifications
Throughput 60 samples/hour
Principle Flow Cytometry by Laser for WBC
Cyanide-free method for HGB
Impedance for RBC, PLT
Species 19 species, and support custom species; Cat, Dog, Rabbit, Sheep, Goat, Cattle, Horse, Rat, Mouse, Llama, Deer, Musk deer, Tiger, Monkey, Dolphin, Pig, Camel, Ferret
Parameters 28 parameters: WBC, LYM%, MON%, NEU%, BAS%, EOS%, LYM#, MON#, NEU#, EOS#, BAS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCR, P-LCC, NLR, PLR
8 research parameters: LIC%, LIC#, ALY%, ALY#, NRBC%, NRBC#, PLT Clumps%, PLT Clumps#
4 scattergrams for WBC differential
2 histograms for RBC and PLT
Sample volume Whole blood mode: 20ul
Capillary mode: 20ul
Prediluted mode: 20ul
Data transmission With VIMS software
Support Bi-directional LIS
