Microplate Reader MB-580/ Built-in computer, 8" touch screen, 8channels, 96wells, Max 8 filters, standard405/450/492/630

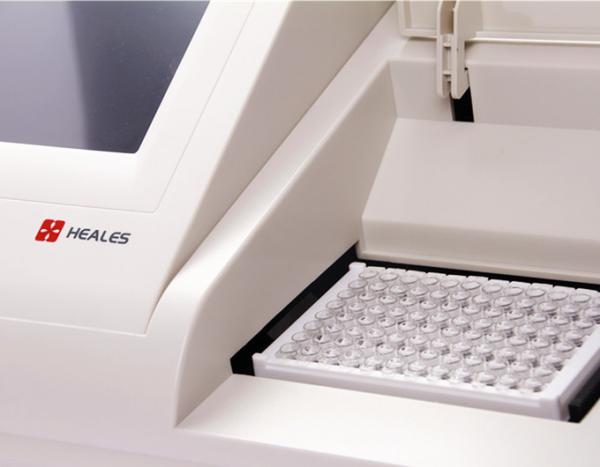

Microplate Reader MB-580

MB-580 can read microplates used in Enzyme-Linked Immunology Assay (ELISA) for the qualitative and quantitative analysis, which is used widely for immunoassay in clinic lab, blood center, hospital, university, institute or other academic organization.

Specification for MB-580

Light Source 6V,10W tungsten halogen lamp, work over 5000housrs

Wavelength range 400-750nm

Optical Filters 4 standard filters: 405,450,492,630,max 8 filters

Measurement Methods Single, dual two points method,dynamic assay, multiple wavelengths

Blank Ways Single,multiple wells blank, rows and columns blank

Calculation Method Absorbance, single point calibration, linear regression, quadratic curve, four parametrs equation

Measurement Speed Single wave <3second/96 wells, dual wave <9seconds/96well

Measurement Range 0.0000-4.5000Abs

Linearity +-0.5% or <0.025A

Repeatability Difference <0.1% or +- 0.0025A

Row and columns difference <0.01A

Reasolution 0.0001A

Environment power 12V D(100V-240V wide input voltage)

Save information More than 300 test programs, results, 100000 test results

Interface 1 USB two-way communication interface

Advantages of MB-580:

Built-in computer, 8” touch screen, operation system in English, edit, test, save, print efficiently and conveniently.

It can test 96 wells in 3 seconds.

System self-check and diagnosis function for optical paths and mechanical parts

Lamp’s automatic switch, energy-efficient design can extend the life of light source and easy to change lamp

Shaking function, adjustable shaking speed and time

Specimen information records: Specimen No., OD value, result, S/CO value and item parameters lists and cards, directly input also shows in screen

Quick tagging blank, specimen, positive control, quality control, multi-valued comparison

Can be done,automatically track and analyse changing trends in data.

Can save data in MS Excel

FAQ

1. Are You Factory?

We are factory of Microplate Washer & Microplate Reader

2. Do You Offer OEM Service?

Yes,we have rich experience in offering OEM/ODM service.

3. What is your MOQ?

One set
