Microplate Reader MB-580/ Built-in computer, 8" touch screen, 8channels, 96wells, standard 405/450/492/630 nm filters

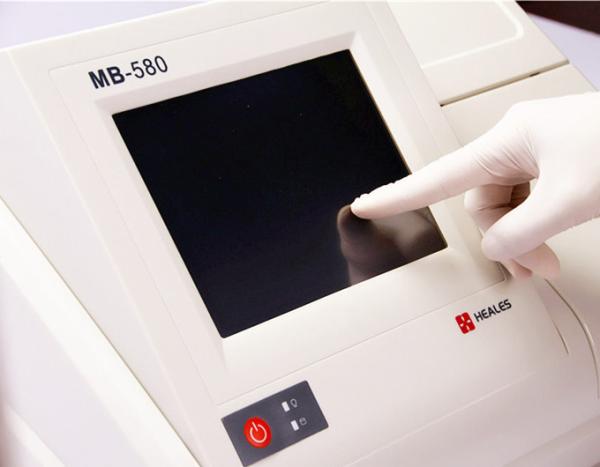

Microplate Reader MB-580

MB-580 can read 48 well and 96 well microplate , analyse and report,which are widely used in clinical diagnostic laboratories, centers for disease control and prevention, animal and plant quarantine, animal husbandry and veterinary epidemic prevention stations, biotechnological industries, food industries, environmental science, agricultural scientific research and other academic organizations.

Specification for MB-580

Light Source 6V,10W tungsten halogen lamp, work over 5000housrs

Wavelength range 400-750nm

Optical Filters 4 standard filters: 405,450,492,630,max 8 filters

Measurement Methods Single, dual two points method,dynamic assay, multiple wavelengths

Blank Ways Single,multiple wells blank, rows and columns blank

Calculation Method Absorbance, single point calibration, linear regression, quadratic curve, four parametrs equation

Measurement Speed Single wave <3second/96 wells, dual wave <9seconds/96well

Measurement Range 0.0000-4.5000Abs

Linearity +-0.5% or <0.025A

Repeatability <0.1% or +- 0.0025A

Row and columns <0.01A

Reasolution 0.0001A

Power 12V D(100V-240V wide input voltage)

Over 300 test programs , 100000 test results saved

1 USB two-way interface

Advantages of this instrument:

Built-in computer, 8” touch screen, operation system in English, test 96 wells in 3 seconds

Edit, test, save, print efficiently and conveniently.

System self-check and diagnosis function for optical paths and mechanical parts

Lamp’s automatic switch, energy-efficient design can extend the life of light source and easy to change lamp

Shaking function, adjustable shaking speedy and timely

Specimen information records: Specimen No., OD value, result, S/CO value and item parameters lists and cards, directly input also shows in screen

Quick tagging blank, specimen, positive control, quality control, multi-valued comparison

Can be done,automatically track and analyse changing trends in data , save data in MS Excel.

FAQ

1. Are You Factory?

We are factory of Microplate Washer & Microplate Reader over 15 years

2. Do You Offer OEM Service?

We offering OEM/ODM service.

3. What is your MOQ?

One set
