| AC power | AC100~240V50/60Hz |
| Rated power | 600W@220V |
| Lamp | 480WLED |
| Rated life | 20000 hour |
| LUX | 5 meters away 128000LX |
| Beam angle | 3°~45° |
| dimming | 0-100% coarse and fine control |
| Color | 8 colors + white light, half colorfunction,CMY+CTO |

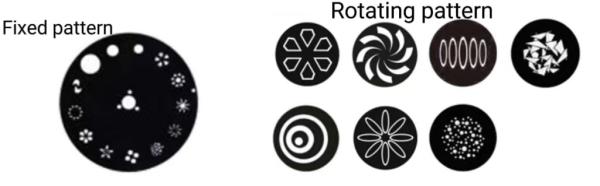

| Fixed pattern | 12 fixed patterns + white light |
| Rotation pattern | 7 glass patterns, each glass patterncan be independent positive andnegative rotation |
| Prism system | standard single six row prism and 8 prism, each prism can be independent positive and negative direction |
| Focus | DMX linear adjustment |
| Macro function | console reset function, self - walkmode, master - slave mode |
| Controland Programming | DMX512,With RDM function, software canbe upgraded online, dial the address code |
| DMXchannels | 22CH/26CH |
| Housing | high temperature resistant flameretardant plastic |
| AC power in/thru | Neutrik PowerCon |
| DMX data in/out | 3-pin lockingXLR |

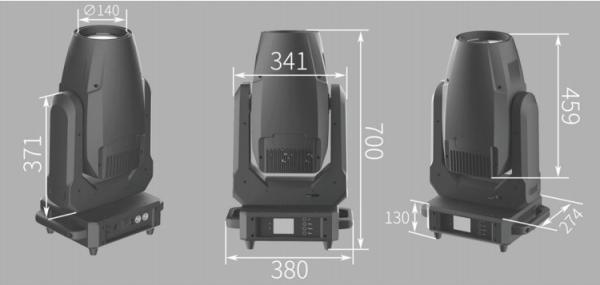

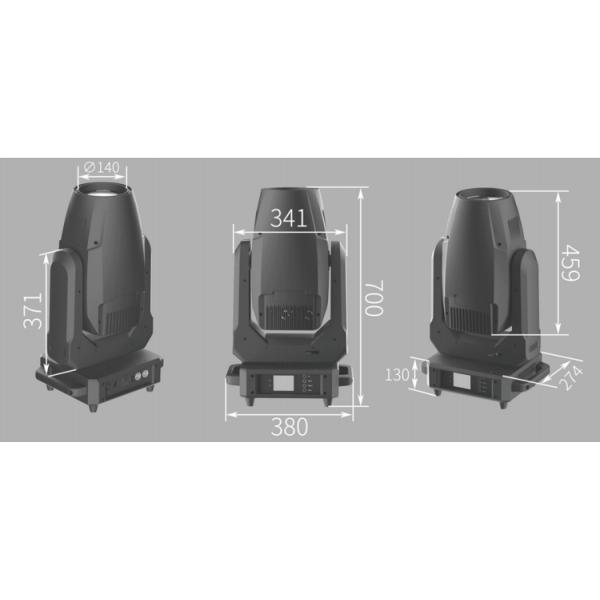

| Light size | 380*274*700mm |
| Package size | 750*360*470mm |
| Weight | 23.5Kg |
| Ambient temperature | -20°C~40°C(-4°F~104°F) |

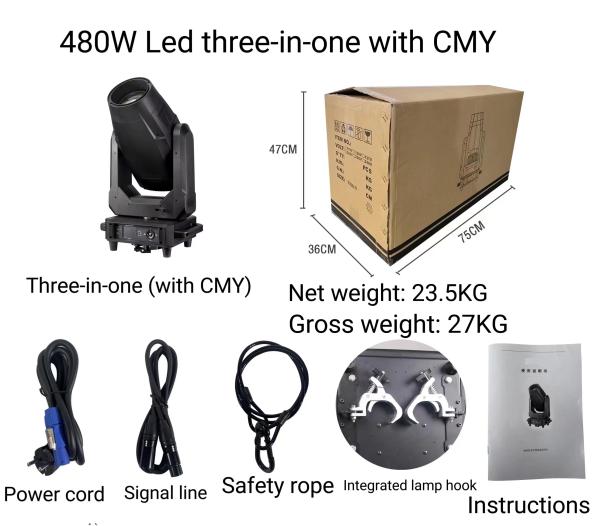

| Standard equipment | power line, signal line, safety rope, integrated folding lamp hook |
