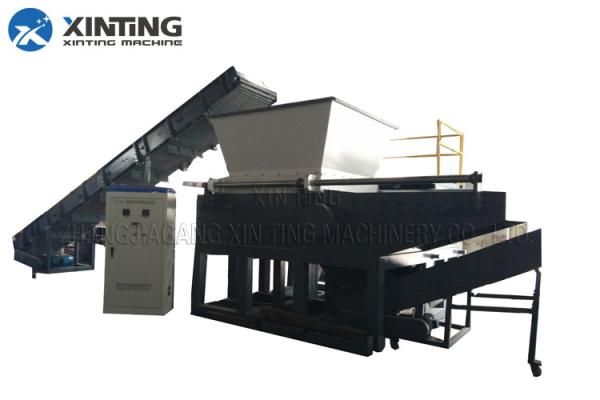

Multifunctional Single Shaft Shredder , Wood / Plastic / Rubber / Metal Shredder Machine
Multifunctional Single Shaft Shredder , Wood / Plastic / Rubber / Metal Shredder Machine
Specifications
Brand Name :
xinting machine
Model Number :
XT
Certification :
CE ,TUV
Place of Origin :
CHINA ZHANGJIAGANG CITY
MOQ :
1 SET
Price :
ASK ME
Supply Ability :
10 SET PER MONTH
Packaging Details :
FILM PACKAGE
Voltage :
380v 50hz 3 phrase as per client's request
Power(W) :
11-132kw
OEM :
yes
Material of Plastic Crusher Blades :
D2,dc53
Usage :
KS fast pipe shredder Waste Plastic Cusher
keywords :
Hard Disk Shredder Machine Single shaft shredder Waste Plastic Pipe Barrel Bottle Single Shaft Shredder
category :
plastic single shaft shredder
material :
big diameter plastic pipe , plastic lump , hard and soft material
Description

Single shaft PP woven bag Shredder ,plastic film Shredder,wood shredder

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

Multifunctional WOOD/PLASTIC/RUBBER/METAL shredder Single/Double shaft block/film/barrel shredding machine.

1. This Plastic Shredder is suitable to shred different things such as WOOD, WOOD pallet, Tyre, Metal bucket, plastic bucket, big plastic blocks, Big plastic pipe etc.
2. Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree.
3. Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree.
4.. Quiet operation at low speed.
5. Screen perforation is adjustable according to customers' requirement.

After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:13 month
Belt conveyor:Optional
Metal detector:Optional
Crusher:Optional
Fan suction & silo:Optional
Knife material:SKD-11
Screen size of shredder:50mm
Screen size of crusher:10mm
PLC:Siemens
Contactor:Schneider
Main technical parameter
Model
WT300
WT400
WT500
WT600
Quantity of rotated blade
22
20
24
28
Quantity of fixed blade
2
2
2
4
Rotated diameter
150
220
220
220
Input size
300*300
400*400
500*500
600*800
Motor power
4
11
15
18.5
Hydraulic power
0.75
0.75
2.2
2.2
Weight
300
1100
1100
2200
L*W*H
1200*800*1100
1300*1700*2000
1300*1700*2000
1300*1700*2000
Mesh diameter
22
22
22
22
Motor speed
80-100
80-100
80-100
80-100
Main technical parameter
Model
WT800
WT1000
WT4080
WT40120
WT40800
Quantity of rotated blade
46
64
46
10
10
Quantity of fixed blade
4
4
4
2
2
Rotated diameter
400
400
400
400
400
Input size
800*800
1000*1000
800*800
120*120
150*150
Motor
37
45
37
1.5
1.5
Hydraulic power
2.2
3
2.2
0.25
0.25
Weight
3100
1500
3100
3000
3000

character:

1. this machine is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others

2. The blade base and blade on the rotary roller can be disassembly .it is easy to clean and maintenance.

3. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.

4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.

5. Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.

6. The main axis is drive by gearbox, its running very stably, low noise and strong power.

7. the material push feeding system is hydraulic ways , ,its running very stably the machine is control by PLC system ,.the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service

Plastic Lump Shredding Machine/Crate Shredder can be adjusted by customers' special requirements for throughput volume, material to be processed etc.

Components:

Multifunctional Single Shaft Shredder , Wood / Plastic / Rubber / Metal Shredder Machine

Multifunctional Single Shaft Shredder , Wood / Plastic / Rubber / Metal Shredder Machine

Multifunctional Single Shaft Shredder , Wood / Plastic / Rubber / Metal Shredder Machine

Multifunctional Single Shaft Shredder , Wood / Plastic / Rubber / Metal Shredder MachineMultifunctional Single Shaft Shredder , Wood / Plastic / Rubber / Metal Shredder Machine

FAQ

·Q:Are you machinery factory or trading company?

A:We are machinery factory

Q:If we have very special request for the production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.

Q: Installation and stuff training available from you?

A: Yes, our engineers will guide machine installation and train your workers.

Q: How can we visit your company and machines?

A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.

Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
