Specifications
Brand Name :
GeoMax
Model Number :
GM75-660
Certification :
CE And ISO9001-2015
Place of Origin :
ANHUI,CHINA
MOQ :
3500 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
40000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
High Density Polyethylene
Thickness :
1.2mm-1.5mm
Geocell Standard :
ASTM Standard or GB Standard
Geocell Height :
75mm
Geocell Surface :
Perforated
Welded Distance :
356mm
Geocell Density :
0.950 g/cm3
Carbon Black :
1.5%
Peeling Strength :
10-14.2kN/m
Tensile Strength :
25kN/m
HDPE Geocell Our Minimum Quantity :
3300m2
Elongtation at Break :
6%-15%
Description

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

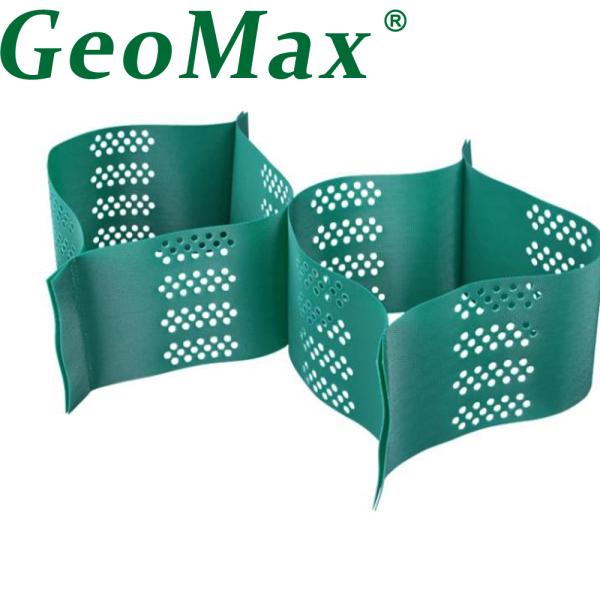

PRODUCT INTRODUCTION

GeoMax® Geocells are high-performance, three-dimensional honeycomb structures made of
Reinforced high-density polyethylene (HDPE) sheets are ultrasonically welded together to form a strong mesh, making it incredibly durable and reliable. These geocells are remarkably versatile and cost-effective, positioning them as a leading solution for a wide range of geotechnical applications. Depending on the client's specifications, the containers can be filled with sand, soil, or locally-sourced materials.

GEOCELL SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

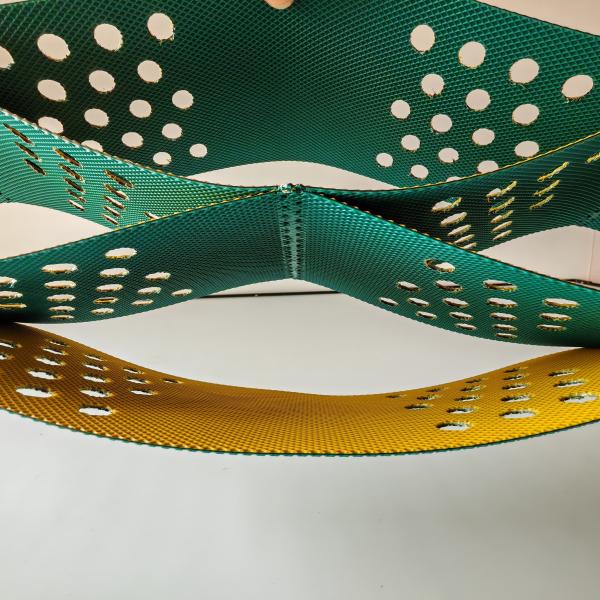

GEOMAX DETAILED PHOTOS

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

GEOCELL APPLICATIONS

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

SOIL REINFORCEMENT

Geomax® (HDPE Geocell) is the solution for soil stabilization or reinforcement. This solution enhances pavement durability, mitigates cracking, and ensures the longevity of the infrastructure.

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

SLOPE PROTECTION

Geomax® (HDPE Geocell) is the preferred solution for slope protection and erosion control. It boasts both effective drainage and slope protection.

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

CHANNEL PROTECTION

Geomax® (HDPE Geocell) is a reliable solution for ensuring the stability and protection of channels.
It is exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

RETAINING WALLS

The Geomax® (HDPE Geocell) product offers high permeability and serves as an effective solution for numerous planting pots, facilitating the absorption of rainwater while reducing runoff.

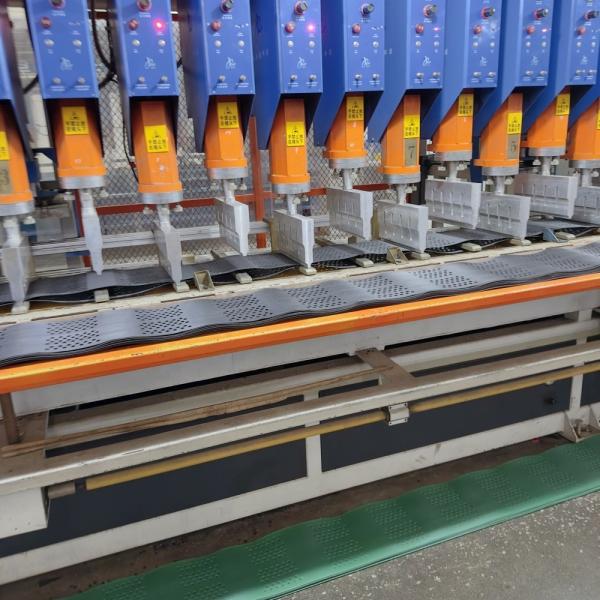

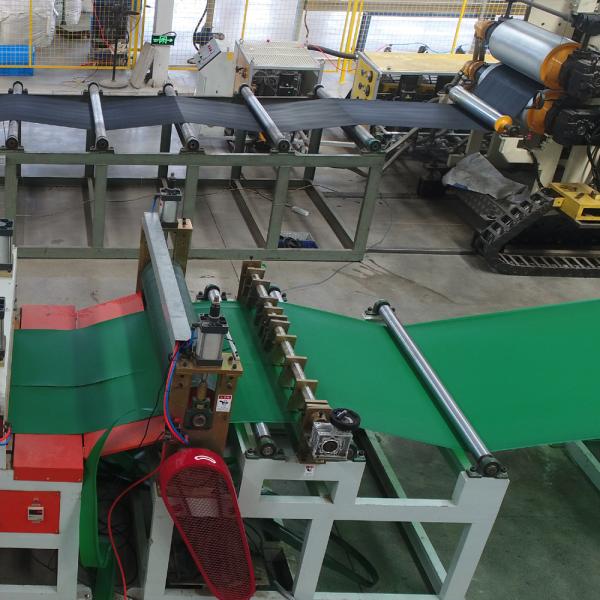

PRODUCTION LINE

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

GEOCELL INVENTION AND TESTING

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

GEOCELL PRODUCT AREA

Cost-Effective Erosion Control Welded Geocell 75mm Height HDPE Green

GEOMAX CERTIFICATES

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.
Q: Has Geocell passed third-party testing? What certifications does it have?
A: Products are tested by third parties (e.g., SGS, Intertek) and certified with CE, ISO9001, ISO14001, etc. Complete test reports and certification documents are available.

Q: How to prevent infill loss?
A:Top Layer Geotextile: Prevents washout.

Use Cohesive Soil-Crushed Stone Mix.

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
