High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM
Specifications
Brand Name :
Geomax
Model Number :
200-356
Certification :
ISO9001-2015
Place of Origin :
ANHUI CHINA
MOQ :
4000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
4000㎡ per day
Delivery Time :
10-20 days

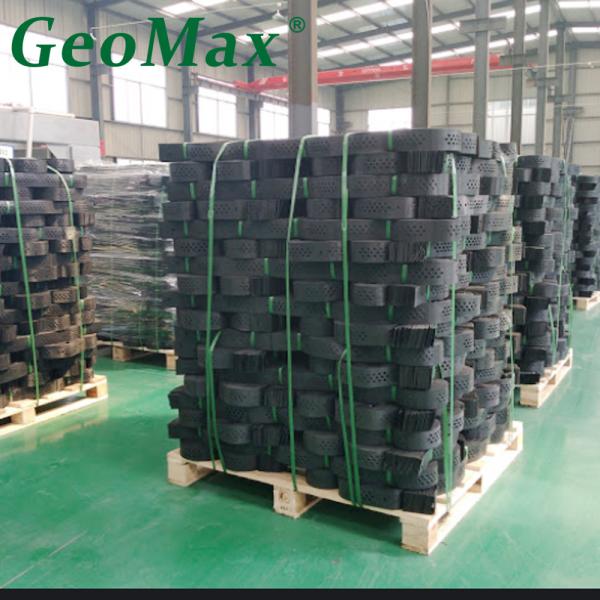

Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
HDPE
Quality :
ASTM/GB
Geocells Height :
100mm
Geocells Color :
Black, green, brown,
Geocells Welding Space :
660mm
Cells Thickness :
1.5mm
Geocells Surface :
Textured&Perforated&smooth
Description :
Smooth Textured Perforated
Description

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

GeoMax®HDPE Welding Geocell is a three-dimensional mesh made of reinforced high-density polyethylene (HDPE) sheets and welded by ultrasonic, which can be filled with sand, soil or other site material. This cost-effective solution has multiple applications enabling reduced project costs and lower environmental impact, which is effortless and time-saving.

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

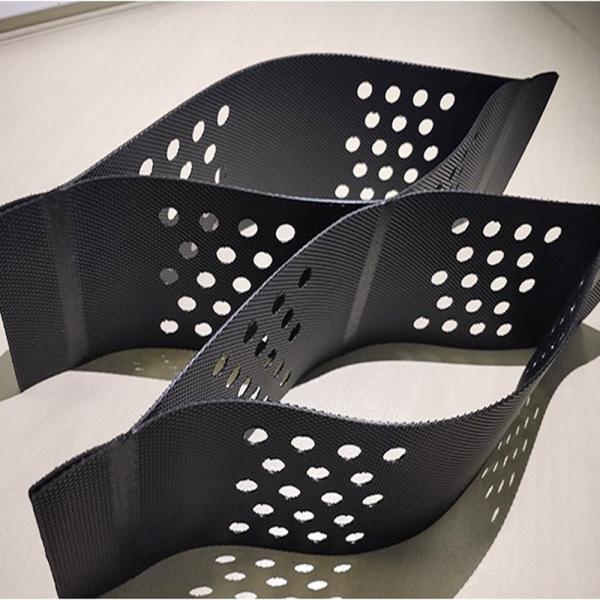

DETAILED PHOTOS

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

APPLICATIONS

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

INVENTION AND TESTING

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

PRODUCT AREA

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

CERTIFICATES

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

PHOTO OF THE EXHIBITION

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: How strong are GeoMax Geocells ?

A:We stock Geocell products that can withstand natural disasters and mechanical and hydraulic stresses. The United States Army Corps installed geocell honeycomb structures as temporary access roads for tanks and other massive equipment. This same trustworthy foundation is what supports hundreds of commercial projects across the world.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.
