GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
Specifications
Brand Name :
GeoMax
Model Number :
GM50-254
Certification :
CE,ISO9001-2015
Place of Origin :
ANHUI CHINA
MOQ :
3000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
3000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
100% HDPE Plastic
Cell Thickness :
1.2-1.7mm
Surface :
Smooth or Textured surface
Tensile Strength :
25kN/m
Standard :
ASTM; GB Standard
Peel Strength :
14.2 kN/m
Height :
50mm
Color :
Black;Yellow;Green
Welding Distance :
254mm
Density :
0.950 g/cm3
Certificate :
CE;ISO;ASTM
Description

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is an engineered geotechnical system manufactured from high-density polyethylene (HDPE) strips, ultrasonically welded into a three-dimensional cellular matrix. This robust honeycomb framework provides exceptional tensile strength, shear resistance, and load distribution capabilities, ensuring structural integrity under dynamic and static loads.

The system demonstrates outstanding versatility with a wide spectrum of infill materials—including granular soil, sand, and recycled aggregates—making it adaptable to diverse geotechnical and environmental conditions. Its modular design also allows rapid deployment and efficient site installation.

Technical Advantages:

  • High tensile and flexural strength for heavy-duty applications

  • Superior load-bearing and erosion resistance performance

  • Long-term durability against UV, chemical, and biological degradation

  • Compatibility with standard geosynthetic installation methods

Engineering Applications:

  • Road and railway base reinforcement

  • Landfill capping and containment systems

  • Slope stabilization and erosion protection

  • Structural support for parking areas and foundations

  • Bedding layers for pipelines and utility corridors

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

DETAILED PHOTOS

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

APPLICATIONS

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

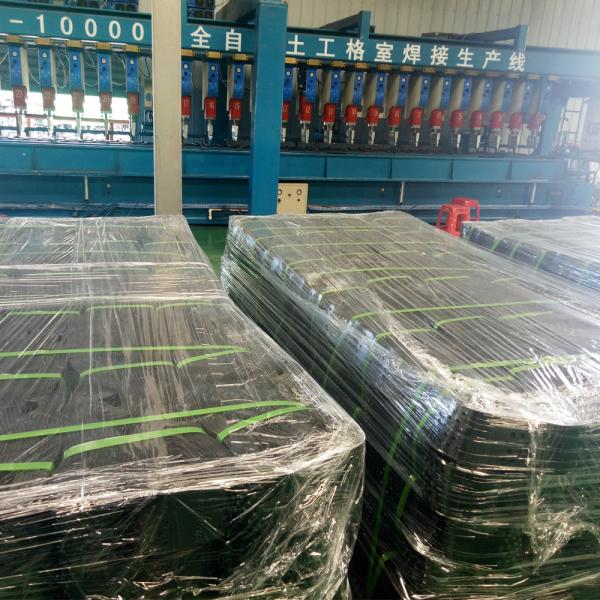

PRODUCTION LINE

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

INVENTION AND TESTING

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

PRODUCT AREA

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt

FAQ:

  • Are geocells environmentally friendly?
    Yes, they are made from non-toxic HDPE and help reduce erosion and land degradation.

  • Can geocells support vegetation growth?
    Yes, they allow grass and plants to grow through the filled cells for green solutions.

  • Do geocells help with stormwater management?
    Yes, perforated cells improve drainage and reduce surface runoff.

  • Are recycled materials available for geocells?
    Yes, upon request, we can provide eco-friendly options with recycled polymers.

  • Do geocells contribute to carbon footprint reduction?
    Yes, by reducing aggregate use and transportation, geocells lower carbon emissions.

GM254 HDPE Geocell with 254mm Welding Distance for Soil Erosion Control In Eygpt
