GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
Specifications
Brand Name :
GeoMax
Model Number :
GM75-330
Certification :
CE,ISO9001-2015
Place of Origin :
ANHUI CHINA
MOQ :
3000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
3000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
100% HDPE Plastic
Thickness :
1.2-1.7mm
Surface :
Smooth or Textured surface
Tensile Strength :
25kN/m
Standard :
ASTM; GB Standard
Peel Strength :
14.2 kN/m
Height :
75mm
Color :
Black;Yellow;Green
Welding Distance :
330mm
Density :
0.950 g/cm3
Certificate :
CE;ISO;ASTM
Description

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

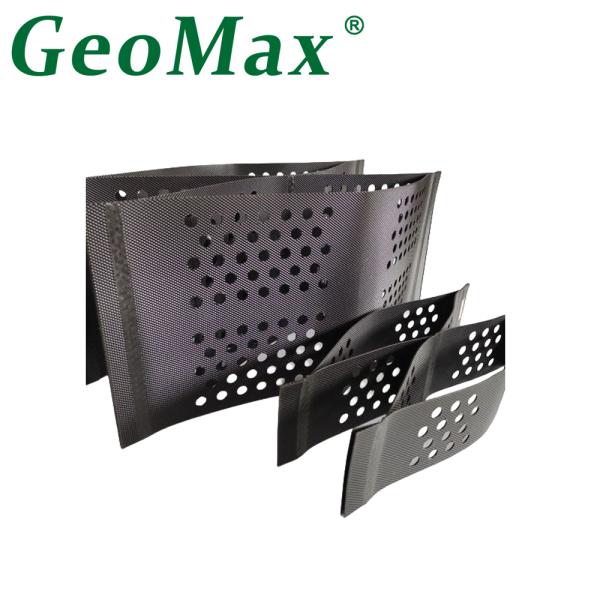

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is an advanced geotechnical solution, made from reinforced HDPE and welded into a 3D honeycomb structure. It delivers strong load support, long-term stability, and wide material compatibility—including soil, sand, and recycled aggregates.

Applications:

  • Roads & railways

  • Landfill & erosion control

  • Landscaping & slope protection

  • Parking foundations

  • Pipeline bedding

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

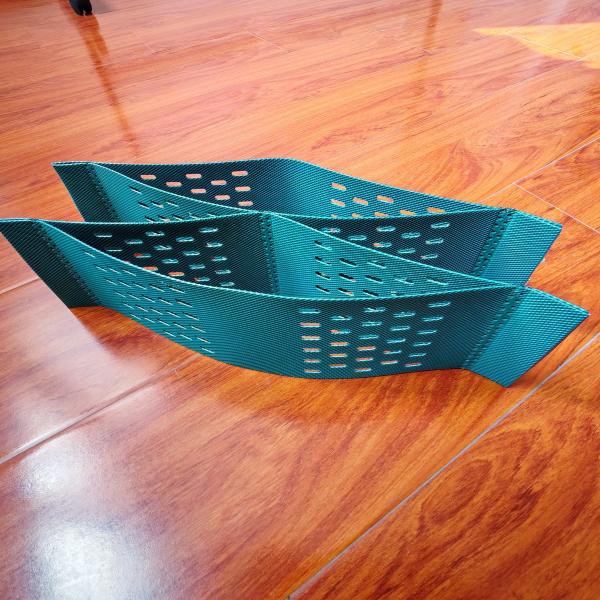

DETAILED PHOTOS

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

APPLICATIONS

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

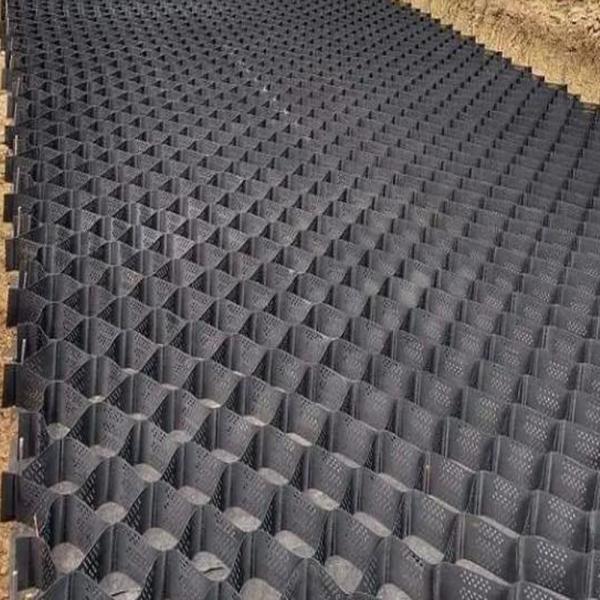

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

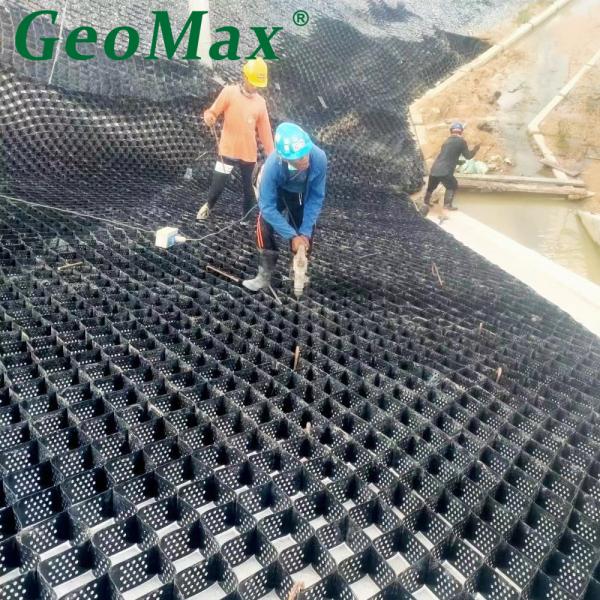

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

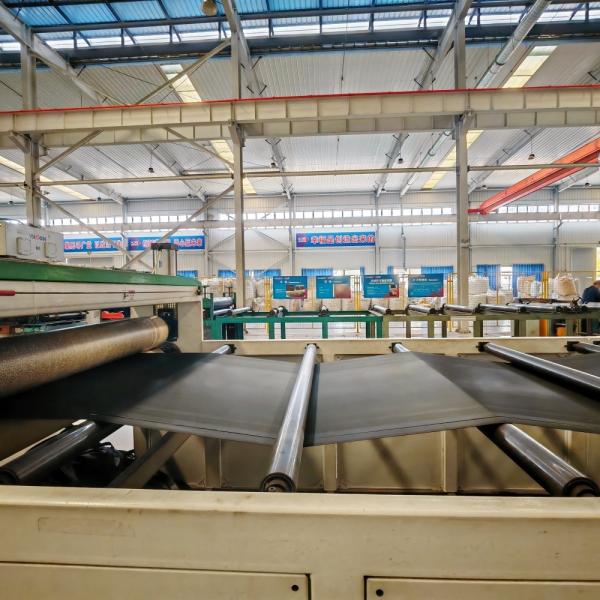

PRODUCTION LINE

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

INVENTION AND TESTING

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

PRODUCT AREA

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa

FAQ:

​

  • Can geocells be reused after dismantling?
    Yes, if carefully removed, they can be reused in temporary projects.

  • Do you provide testing certificates for geocells?
    Yes, we provide ASTM and ISO test reports for quality assurance.

  • Are your geocells compliant with international standards?
    Yes, our products comply with ASTM, ISO, and USACE standards.

  • Can geocells be used with different fill materials?
    Yes, they work with soil, sand, gravel, and recycled aggregates.

  • How do I choose the right geocell specification for my project?
    Our technical team will recommend the best cell depth, welding distance, and thickness based on your project needs.

GM330 HDPE Geocell Panels 75mm Depth for Road Base Support With 25kN/m Tensile Strength In South Africa
