Specifications
Brand Name :
GeoMax
Model Number :
GM 100-300
Certification :
ISO9001-2015
Place of Origin :
ANHUI,CHINA
MOQ :
3000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
40000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
High Density Polyethylene
Thickness :
1.2mm-1.5mm
Geocell Standard :
ASTM or GB Standard
HDPE Geocell Height :
100mm
Surface :
Textured& Perforated
Welded Distance :
300mm
Geocell Density :
0.950 g/cm3
Carbon Black :
1.5%
Geocell Peeling Strength :
10-14.2kN/m
Geocell Tensile Strength :
25kN/m
Geocell Our Minimum Quantity :
2600m2
Geocell ESCR :
5000 Hours
HDPE Geocell OIT :
150min
Geocell Elongation at Break :
6%-15%
Description

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

GEOMAX INTRODUCTION

GeoMax® Geocells feature robust three-dimensional honeycomb frameworks constructed from durable high-density polyethylene (HDPE) panels—panels that are seamlessly bonded together using advanced ultrasonic welding technology. This precision bonding ensures the structure’s long-term structural integrity and resistance to external stress.
A defining advantage of these geocells is their compatibility with locally sourced materials: they can be filled with on-site substances like sand, soil, or other readily available aggregates. This trait eliminates the need for transporting non-local filling materials, making GeoMax® Geocells a highly practical and cost-efficient solution for diverse geotechnical projects.
As an innovative geosynthetic system, it sets itself apart with exceptional cost-effectiveness and a wide range of applications. These use cases include (but are not limited to) driveway construction, highway and railway infrastructure development, landscape engineering, landfill operations, parking lot construction, and pipeline installation/protection projects. Critically, the system is engineered to deliver substantial time and labor savings: it reduces overall project costs, minimizes environmental impact (by cutting material transportation and waste), and streamlines installation workflows—ensuring projects stay on schedule while lowering resource consumption.

GEOCELL SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

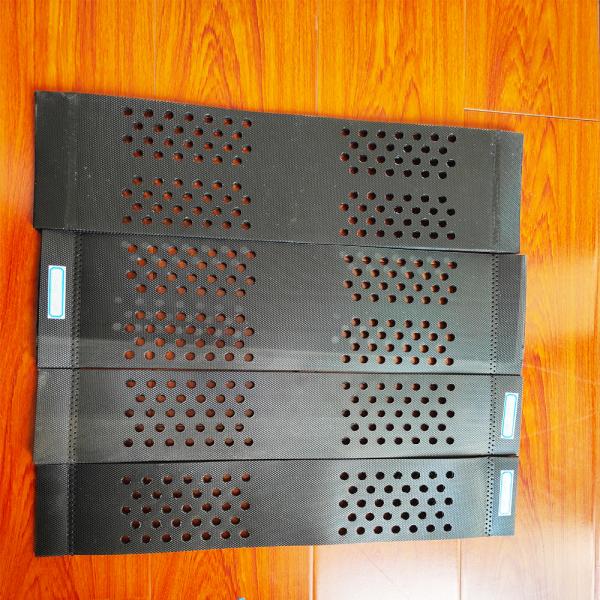

GEOMAX DETAILED PHOTOS

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

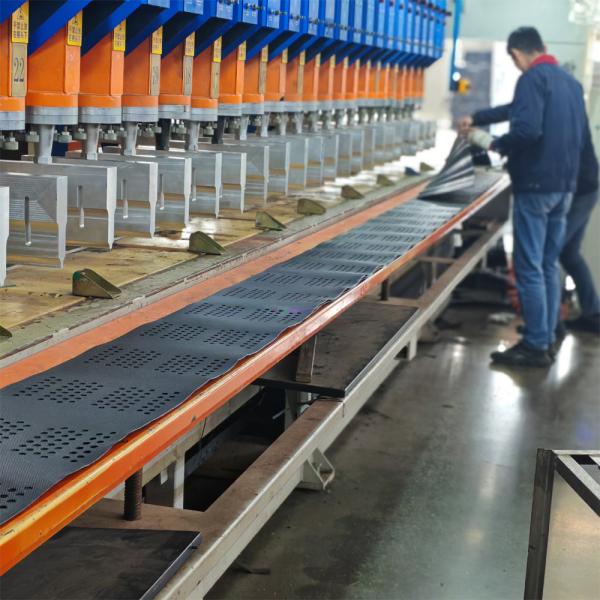

PRODUCTION LINE

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

GEOCELL INVENTION AND TESTING

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

GEOCELL PRODUCT AREA

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

GEOMAX CERTIFICATES

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

PHOTO OF THE EXHIBITION

100mm HDPE Black Geocell for Weak Soil Improvement Construction Access Roads China Manufacturers

FAQ:

Q5: What are geocells commonly used for?
Our products are widely used in:

  • Base & Foundation Reinforcement: For roads, railways, airports, and ports to prevent differential settlement.

  • Slope Protection & Erosion Control: For channel and hillside protection, mine tailings, and for vegetative retaining walls.

  • Load Support Platforms: For temporary access roads, parking lots, military applications, and oil & gas work platforms to create stable foundations for heavy equipment.

  • Hydraulic Applications: For channel protection, dam reinforcement, and other earthworks.

  • Other Applications: Landscape architecture, earth retaining walls, landfill applications, and more.

Q6: How do I choose the right geocell for my project?
Selection depends on several key factors:

  1. Load Requirements: The expected vehicle load or surface pressure.

  2. Subgrade Soil: The type and bearing capacity of the soil.

  3. Application: Whether it's for road base, slope, or a platform.

  4. Environmental Factors: Exposure to UV, chemicals, etc.
    Our engineering support team offers free technical consultation to help you select the most cost-effective and efficient product specification.
