150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
Specifications
Brand Name :
GeoMax
Model Number :
GM150-330
Certification :
CE,ISO9001-2015
Place of Origin :
ANHUI CHINA
MOQ :
3000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
3000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
100% HDPE Plastic
Cell Thickness :
1.5mm
Surface :
Smooth or Textured surface
Tensile Strength :
25kN/m
Standard :
ASTM; GB Standard
Peel Strength :
14.2 kN/m
Height :
150mm
Color :
Black
Welding Distance :
330mm
Density :
0.950 g/cm3
HPOIT :
400Min
Description

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance, three-dimensional cellular structure made of

reinforced high-density polyethylene (HDPE) sheets that are ultrasonically welded together to form a robust mesh.

The cells can be filled with sand, soil, or locally sourced materials, making it a versatile and cost-effective solution for a wide range of geotechnical applications.

effective solution for a variety of geotechnical applications.

This innovative system offers value-engineered solutions for various infrastructure projects, including driveways, highways, railways, landscapes, landfills, parking lots, and more.

applications, including driveways, highways, railways, landscapes, landfills, and parking lots.

By reducing overall project costs, minimizing environmental impact, and streamlining pipelines. By reducing project costs, minimizing environmental impact, and streamlining

It delivers significant savings in both time and labor by reducing overall project costs and minimizing environmental impact.

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

DETAILED PHOTOS

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded 150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded 150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

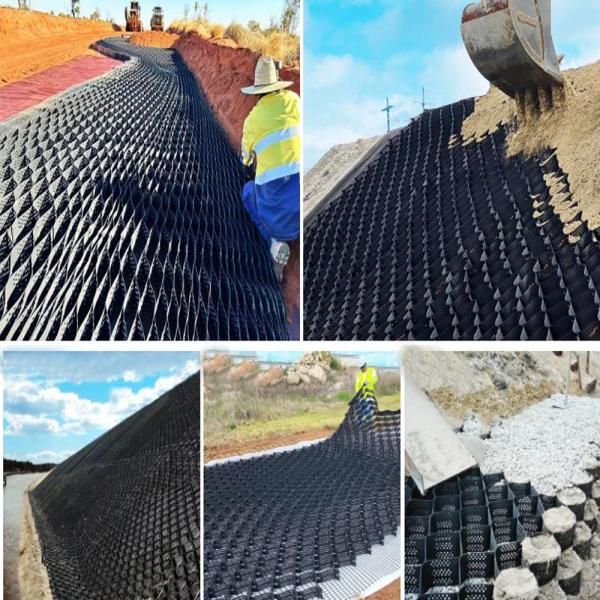

APPLICATIONS

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

INVENTION AND TESTING

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

PRODUCT AREA

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
