Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System
Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System
Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System
Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System
Specifications
Brand Name :
Geomax
Model Number :
150-712
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
1000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
2000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
High-density polyethylene (HDPE)
Type :
150-712
Color :
Black
Welding space :
712mm
Thickness :
1.5mm
Height :
150
Surface :
Smooth
Standard :
ASTM
Description

PRODUCT DESCRIPTION

Plastic Gravel Grid HDPE Geocells

Product Introduction

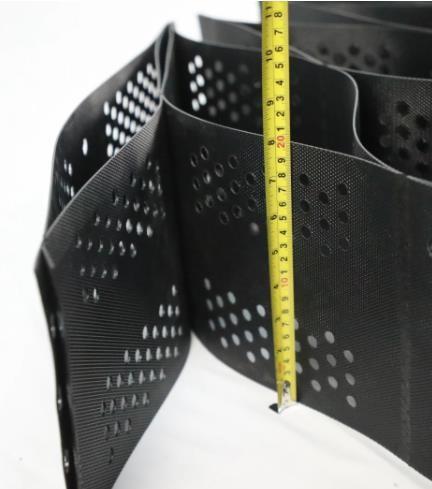

Geocell is a three-dimensional mesh cell structure formed by high strength welding of REINFORCED HDPE sheet material. It is generally made by ultrasonic needle welding. Due to engineering needs, some holes are drilled on the membrane. From the appearance of geocell, it can be classified into several types, including smooth geocell, punching geocell and textured geocell. There are national standard and non-standard geocells.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

Application

Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

HCNS Manufacture Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System

Our Certificates and HDPE Geocell Testing reports

Reinfored HDPE Plastic Geocell Confinement System Cellweb Root Protection System
