High Strength PP Plastic Geocell Retaining Wall Earthwork Products
High Strength PP Plastic Geocell Retaining Wall Earthwork Products
High Strength PP Plastic Geocell Retaining Wall Earthwork Products
High Strength PP Plastic Geocell Retaining Wall Earthwork Products
Specifications
Brand Name :
Geomax
Model Number :
100-330
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
1000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
2000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
High-density polyethylene (HDPE)
Type :
100-330
Color :
Black
Welding space :
712mm
Thickness :
1.5mm
Height :
100
Surface :
Smooth textured perforated
Standard :
ASTM
Description

PRODUCT DESCRIPTION

High Strength PP Plastic Geocell Retaining Wall Earthwork Products

Product Introduction

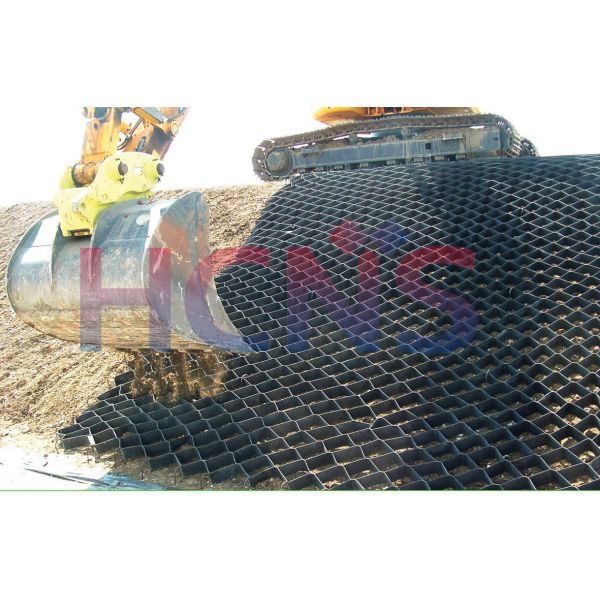

Geocell is flexible, small transport volume, quick connection, and fast construction. During construction, it can be tensioned into a mesh and filled with loose materials such as soil, gravel, and concrete to form a structure with strong lateral restrictions and large stiffness. It is light, wear-resistant, stable in chemical performance, resistant to light and oxygen aging, acid, and alkali, and suitable for different soil and desert. High lateral limit and anti-skid, anti-deformation, effectively enhance the bearing capacity of the subgrade and disperse the load.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

Application

High Strength PP Plastic Geocell Retaining Wall Earthwork Products

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

High Strength PP Plastic Geocell Retaining Wall Earthwork Products

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

High Strength PP Plastic Geocell Retaining Wall Earthwork Products

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

High Strength PP Plastic Geocell Retaining Wall Earthwork Products

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

HCNS Manufacture High Strength PP Plastic Geocell Retaining Wall Earthwork Products High Strength PP Plastic Geocell Retaining Wall Earthwork Products

Our Certificates and HDPE Geocell Testing reports

High Strength PP Plastic Geocell Retaining Wall Earthwork Products
