HDMI 2.0 1 X 16 , 3D , 4K X 2K , Splitter

Introduction

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

Features

1. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.

2. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,

and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

4. Compatible with DVI by using HDMI to DVI adapter.

5. Extend the transmission distance and improve transmission signal.

6. Metal casing design and overall shielding without signal interference.

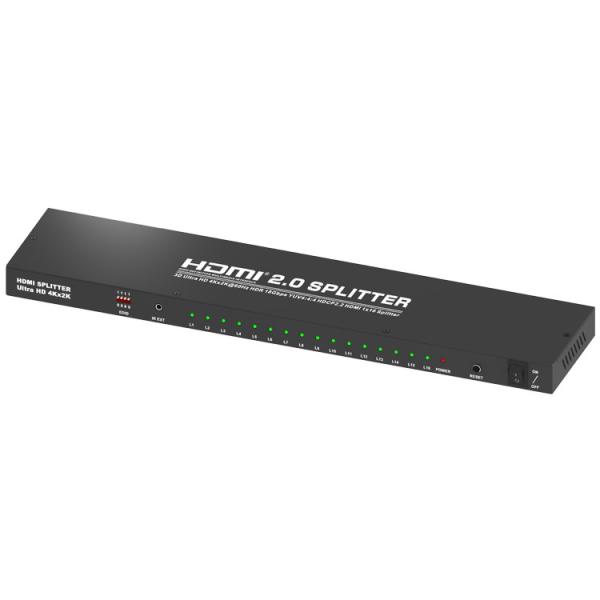

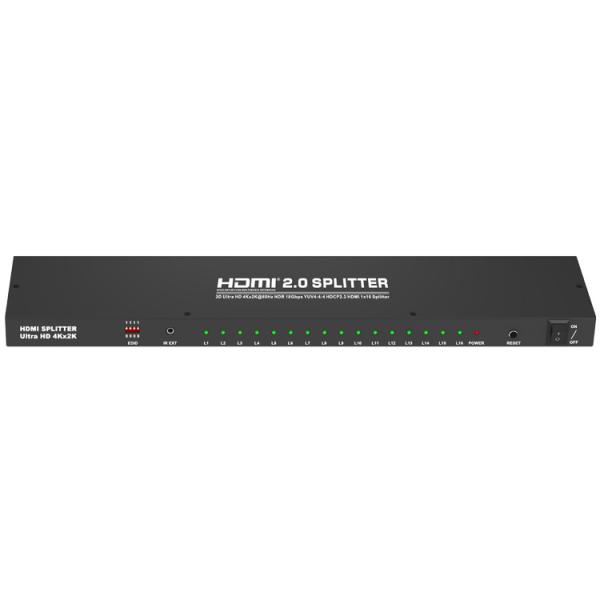

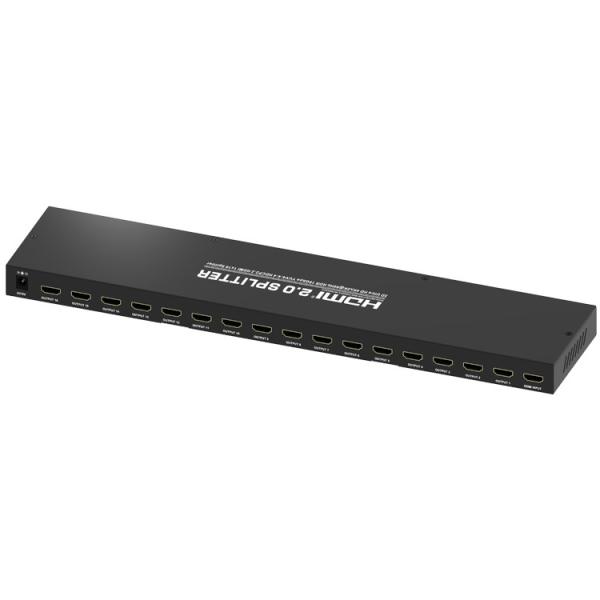

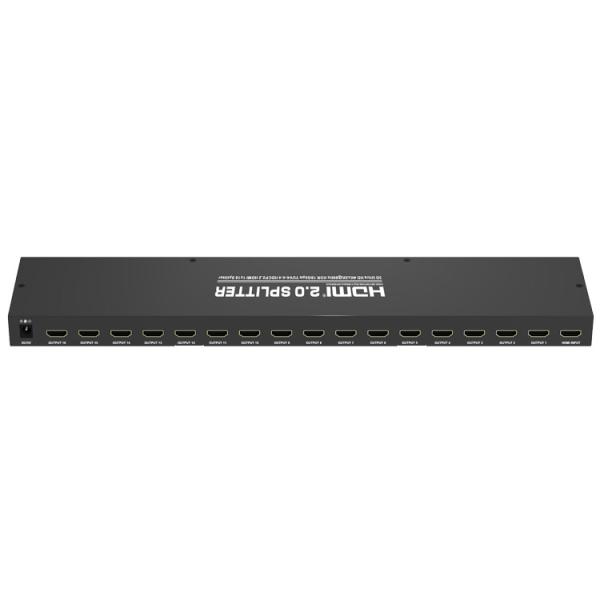

Panel Introduction

EDID --------------------------------------------EDID Setting button

IR Ext-----------------------------------------------IR Extension port

L1-L8-------------------------------------------HDMI Input Indicator

Power-------------------------------------------------Power Indicator

Reset-----------------------------------------------------Reset button

ON/OFF-------------------------------------------------Power Switch

DC/5V------------------------------------------------Power Input port

HDMI Output16-1------------------------------HDMI 1-16 outputs

HDMI Input------------------------------------------HDMI Input port

Connection diagram

Before installation, please make sure all devices you wish to connect have been turned off.

1. Connect the HDMI cable between signal source and input port of Splitter.

2. Connect the HDMI cable between output port of Splitter and HDTV.

3. Connect Splitter and power adapter.

4. Open the signal source and the power of HDTV, then it works.

EDID Selector: Select HDMI output signal format via EDID Selector.
