3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control
3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control
3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control
3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control
Specifications
Brand Name :
VEGOO
Model Number :
VG-P1.953-32scan
Certification :
CE ROHC FCC
Place of Origin :
China
MOQ :
1 Cabinet
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
8000sqm per month
Delivery Time :
15-25days
Packaging Details :
Wooden box or Flight case
Package Mode :
SMD 3IN1-1515
Refresh Rate :
3840Hz/s
Driver IC :
ICND2163
Brightness :
700cd/㎡
Recommended Viewing :
2m-12m
Working Lifetime :
100000 hours
Module Thickness :
16mm
Application :
Indoor
Maintenance Connection Mode :
Pre Maintenance
Description

Products Description

  • Front service

Environment-friendly structures of maintenance that is designed for all-purpose installation sites.

  • Modular design-hard connecting interface

Modules,power and system parts are connected through hard connecting interface,convenient to connect and use

  • Seamless assembly

High-precision die-cast aluminum cabinets with space between them not large than 0.1mm.

  • Various ways of cabinet combination.

One of the highlights of R-series include protability,rich transformation.Cabinets can be suspended in parallel,arranged horizonally in a curved angle,and mounted in stories.

Features:

  1. Die-casting aluminum,low temp-rise.
  2. personal designed cabinet,beautiful appearance.
  3. Waterproof,high-efficiency cooling.
  4. High precision,seamless splicing.
  5. No fan,mute design,noise-free
  6. Low power,Eco-friendl

About us:

  1. Strong manufacturing capacity:It has a monthly production capacity of 8000 square meters of LED modules,which can meet the production needs of large LED display.
  2. Large factory scale:there are nearly 10000 square meters of public production area.
  3. Automated production:It has 18 high-speed LED placement machines,which improves production efficiency.
  4. Has many years of industry experience:the company has more than 9 years of LED display manufacturing and sales experience.

Technical Parmeters

Unit Module

 Item Parameter
Model Number VG-P1.953-32scan

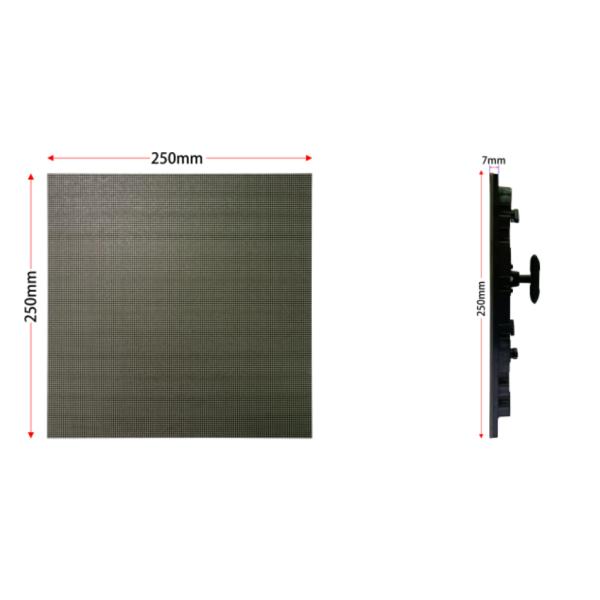

Module Size 250mm*250mm
Physical Pitch 1.953mm
Physical Density 262144 dots/m2
Pixel Configuration 1R1G1B
LED Package Mode SMD 3IN1-1515
Module Resolution 128dots(W)*128dots(H)
Max Power Consumption 40W
Module Thickness 16mm
Module Weight 560g
Drive Type 恒流驱动 Constant Drive
Scan Mode 1/32 扫描 1/32scan
Port Type 自定义 Customize

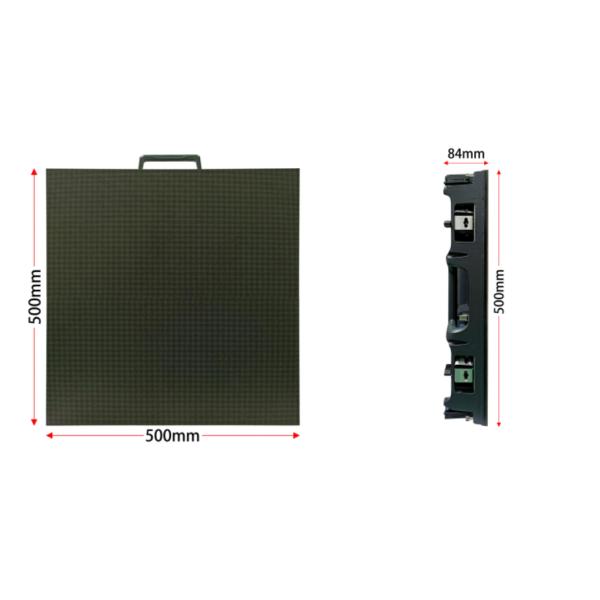

Match Cabinet Size

W500mm*H500mm

W500mm*1000mm

Display

Parameters

 Dimension 250mm*250mm
Thickness 84mm
Weight 76.5kg
Monomer Module Number 4pcs
Maintenance Connection Mode Pre Maintenance
Pixel Per Cabinet 65536 pixels
Best Viewing Angle H:140° ;V:140°
Recommended Viewing 2m-12m
Driver IC ICND2163
Refresh Rate 3920Hz
Brightness Of White Balance 700cd/㎡
Operating Temperature/Humidity -30℃ ~ +60℃
Life Time >100000 hours
Bad Light Rate <0.0001
MTBF >5000 hours
Cabinet Matching Module Size 250mmx250mm
Cabinet Matching Module Model

P1.953/P2.604/P2.976/

P3.91/P4.81

Power

 Input Voltage 110-220V;AC±10%
Power Supply 5V/60A*3 pcs
Working Voltage AC220V±10%
Average Power Consumption 350w/㎡
Max. Power Consumption 800w/㎡

Control

System

 CPU Pentium4 or Above
Operation System WIN98/2000/NT/XP/WIN7
Control Method Synchronization

Detail Images

3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control

3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control
