Seamless Splicing 3.91mm Pixel Pitch Outdoor LED Display for Rental Screens 560g
Seamless Splicing 3.91mm Pixel Pitch Outdoor LED Display for Rental Screens 560g
Seamless Splicing 3.91mm Pixel Pitch Outdoor LED Display for Rental Screens 560g
Seamless Splicing 3.91mm Pixel Pitch Outdoor LED Display for Rental Screens 560g
Specifications
Brand Name :
VEGOO
Model Number :
VG-P3.91-16scan
Certification :
CE ROHC FCC
Place of Origin :
China
MOQ :
1 Cabinet
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
8000sqm per month
Delivery Time :
15-25days
Packaging Details :
Wooden box or Flight case
Module Size :
250mmx250mm
Pixel Resolution :
64dots(W)*64dots(H)
Max Power :
38W
Pixel Density :
65536dots/m2
Module Thickness :
16mm
Weight :
560g
Drive IC :
ICND2153
Brightness of White Balance :
6000cd/m2
Input Voltage :
110-220V;AC±10%
Description

The advantages of rental screens:

1. Wide viewing angle, high contrast, seamless splicing, and high image quality

LED rental screens should have the functions of "beautiful appearance, lightweight, easy to carry, and stable quality", as well as wide viewing angle, high contrast, smooth patches, and high definition. Especially for LED rental screen casings used in the stage and entertainment industry, they are mostly made of aluminum boxes, with a weight of around 20-30 kilograms/m2. They are lightweight, ultra-thin, and easier to disassemble.

2. Long lifespan

The main component that affects the lifespan of LED rental screens is light-emitting diodes (LEDs). High temperature is the natural enemy of LEDs, and aluminum boxes have good thermal conductivity, which can stabilize environmental temperature and greatly extend the lifespan of display screens.

3. Good stability

The strengthening of the stability of LED rental screens is also one of the important factors widely accepted by most businesses. LED rental screens are often used for large-scale events such as advertising, performances, gatherings, and press releases, and their stability plays an important role throughout the entire process. Therefore, when selecting materials, enterprises will conduct relevant tests with requirements higher than industry standards to ensure long-lasting display effects. The improvement of control systems cannot be ignored in stable performance maintenance.

Technical Parameters

Unit Module

 Item

Parameter
Model Number VG-P3.91- 16S
Module Size 250mm*250mm
Physical Pitch 3.91mm
Physical Density 65536 dots/m2
Pixel Configuration 1R1G1B
LED Package Mode SMD 3IN1 - 1921
Pixel Resolution 64dots(W)*64dots(H)
Max Power 38W
Module Thickness 16mm
Weight 560g
Drive Type Constant Drive
Scan Mode 1/ 16scan
Port Type HUB75
Match Cabinet

W500mm*H500mm

W500mm*H1000mm

Display

Parameters

 Dimension 500mm*500mm
Thickness 87mm
Weight 8kg
Monomer Module Number 4pcs

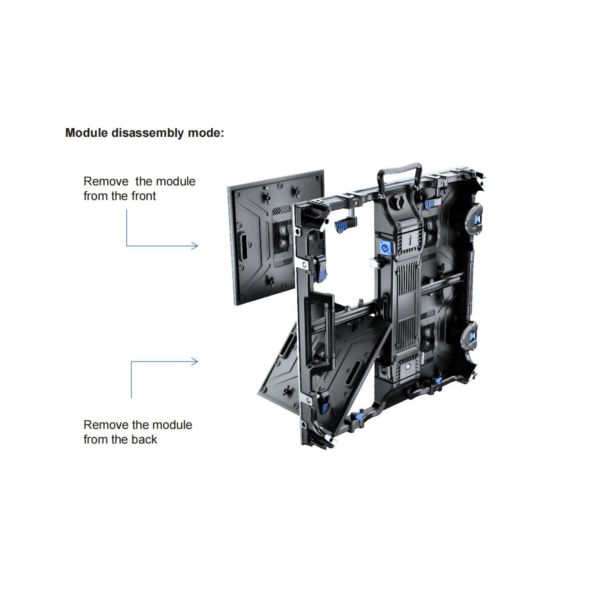

Maintenance Connection Mode Maintenance from the Back
Pixel per Cabinet 32768 pixels
Best Viewing Angle H:120°;V:120°
Recommended Viewing 4m-30m
Driver IC ICND2038S/2153/5124
Refresh Rate 3840Hz
Brightness of White Balance 6000cd/㎡
Operating Temperature/Humidity -20℃ ~ +50℃
Life Time > 100000 hours
Bad Light Rate <0.0001
MTBF >5000 hours
Cabinet Matching Module Size 250mmx250mm
Cabinet Matching Module Model P2.6/P2.97/P3.91/P4.81

Power

 Input Voltage 110-220V;AC±10%
Power Supply 5V/60A*1 pcs
Working Voltage 110V-220V AC±10%
Average Power Consumption 260w/㎡
Max. Power Consumption 800w/㎡

Control system

 CPU Pentium4 or Above
Operation System WIN98/2000/NT/XP/WIN7
Control Method Synchronization

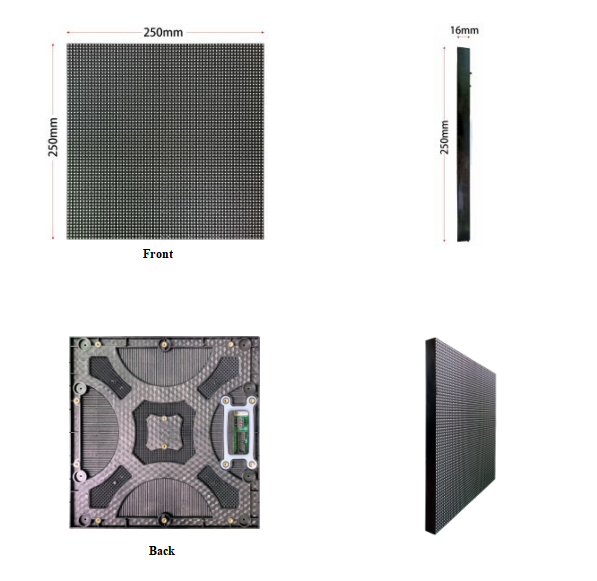

Detail Images
