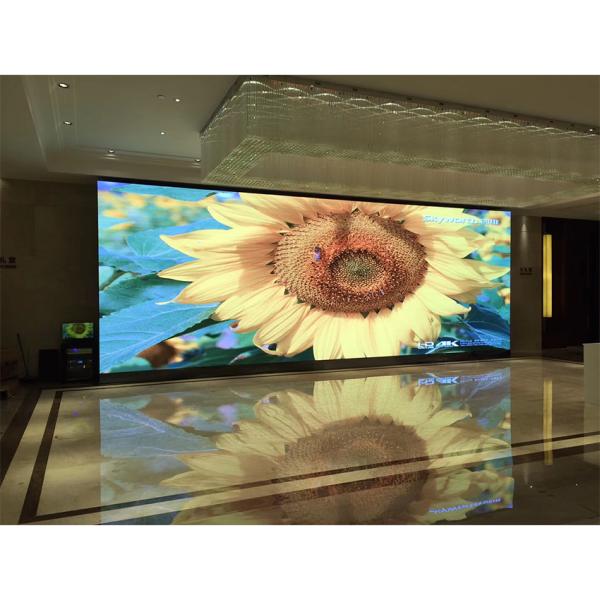

Curved Indoor LED Advertising Screens , Large 55 Inch Seamless LED Wall
Curved Indoor LED Advertising Screens , Large 55 Inch Seamless LED Wall
Curved Indoor LED Advertising Screens , Large 55 Inch Seamless LED Wall
Curved Indoor LED Advertising Screens , Large 55 Inch Seamless LED Wall
Specifications
Brand Name :
Vegoo
Model Number :
VG-FD 3
Certification :
CE/ROHS/FCC/
Place of Origin :
China
MOQ :
negotiation
Supply Ability :
3000 Sq.m / month
Delivery Time :
15 working days
Packaging Details :
Plywood case / Flight case / Carton box
Price :
negotiation
Payment Terms :
L/C, T/T
product name :
Indoor LED Advertising Screens
Feature :
Curved
Pixel Pitch :
5mm
Pixel Configuration :
1R1G1B/SMD2121 Black lamp
Brightness :
600CD/㎡
Other Name :
Seamless LED Wall
Description

Curved Indoor LED Advertising Screens , Large 55 Inch Seamless LED Wall

Indoor LED Advertising Screens Quick Detail:

Curbved design
SMD2121 lamp.
it is very easy to install.
Competitive price and trustable quality with two years warranty

Indoor LED Advertising Screens Description:

1), LED video Curtain display with CE , ROHS,FCC.

2), High brightness and support brightness automatically adjustment,Mainly used stage show.

3), Long lifespan, can reach more than 100,000 Hours;

4), Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED curtain display system;

5), Rich LED curtain display engineering experience both in domestic and international market.

Indoor LED Advertising Screens Specification:

Product Name Curved Indoor LED Advertising Screens , Large 55 Inch Seamless LED Wall
Pixel Pitch 5mm
Pixel Configuration 1R1G1B/SMD2121 Black lamp
Density 40,000 pixel/m2
Moduel Size(L×W)mm 320mm×160mm
Cabinet Size(L×W×H)mm 640mm×640mm×90mm
Module Resolution 64×32
Cabinet Resolution 128×128
Driving Method 1/16 Scan
Driving IC MBI5124
Brightness 600CD/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:＜500W
Average power: ＜200W
Module Weight 0.45kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

Quality Management

  • Implement 5 s site management, general SPC statistical process control methods
  • Through the ISO9001, CE, ROHS, FCC certification
  • Perfect quality, IQC, IPQC, OQC, LQC, QA engineering, QE engineering and supplier management

Upgrade Service :

Unschedule, we will upgrade our system of products without extra formal; we’ll do our best to help users with upgrading ; the following conditions are excluded by this warranty :

  • Without approved documents;
  • Series code on products having been torn or changed ;
  • Damage caused by lighting strike or electrical problems;
  • Risks caused by irresistible incidents includes all kinds of natural disasters, fire, wars, policy changes, and some other human error accidents.
  • Users or third party refit or repaired by themselves without VEGOO’s permission ;
  • Water intrusion or corrosion caused by improper keeping or operating ;
  • Over period of free maintenance .

Curved Indoor LED Advertising Screens , Large 55 Inch Seamless LED Wall
