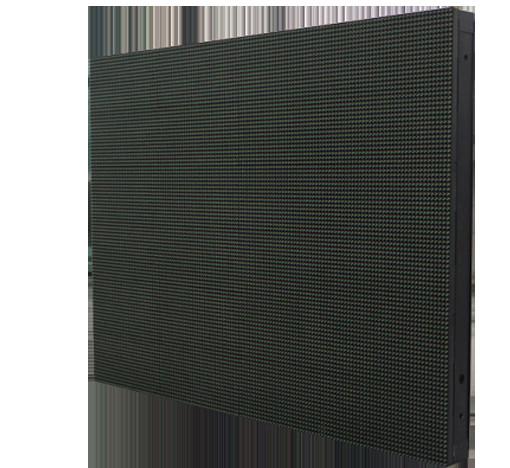

Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Commercial Front Service DIP P16 Outdoor Full Color LED Display
Specifications
Brand Name :
Vegoo
Model Number :
VG-P16-DH
Certification :
CE
Place of Origin :
China
MOQ :
1sqm
Payment Terms :
T/T
Supply Ability :
5000 Sqm/month
Delivery Time :
10-20 days
Packaging Details :
Plywood case / Flight case / Carton box
Pixel pitch :
16mm
Size of module :
320mm*320mm
Density :
3906 dots/㎡
Size of cabinet :
1280mm*960mm
Description

P16 Outdoor Fixed Installation LED Display for Commercial Advertising Front Service DIP LED

Features:

1. Lamps adopts unique packing technology, with high brightness and high protection characteristics.
2. Flexible user-defined cabinet size help provide a more suitable & economical solution.
3. Standardized design, versatility, fast and easy installation and maintenance.
4. High level of protection and stability, which is suitable for a variety of outdoor harsh environment.
Parameters
Pixel pitch
16mm
LED type
DIP346
Pixel configuration
1R1G1B
Size of module
320mm*320mm
Resolution of module
24*24
Density
3906 dots/㎡
Cabinet material
Die-casting Aluminum
Size of cabinet
1280mm*960mm
Weight of cabinet
27.5KG/㎡
Support hanging or not
YES
Best viewing distance
＞16m
Best viewing angle
140°
Max power consumption
350W/㎡
Average power consumption
120W/㎡
Colors
16.7M
Gray scale
16bits
Color temperature
3000-1000K
Driving method
static scanning
Refresh frequency
1920Hz
Frame frequency
60Hz
Control method
Synchronization
Driving device
Constant current
Brightness
8000cd/㎡
Working voltage
AC220V/110V±10%
Working temperature
-20℃~50℃±10%
Out-of control point
＜0.0001
Brightness control
256 grade
IP grade
IP65
Mtbf
10,000Hours
Life span
100,000Hours

Commercial Front Service DIP P16 Outdoor Full Color LED Display
