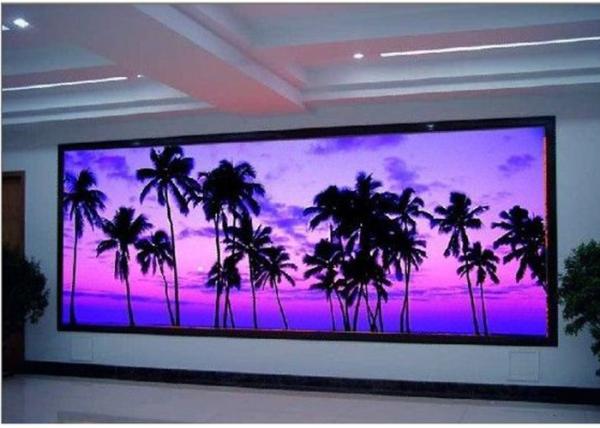

Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display
Specifications
Brand Name :
VEGOO
Model Number :
VG-SUN88845
Certification :
CE ROHS FCC CCC
Place of Origin :
China
MOQ :
1 SQM
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
3000 sqm per month
Delivery Time :
15-30 working days
Packaging Details :
flight case,plywood case,carton
pixel pitch :
1.25mm
Density :
640,000 pixel/m2
Moduel Size :
150mm×168.75mm
Cabinet Size :
600mm×337.5mm×38mm
Driving Method :
1/45 Scan
Brightness :
200-500CD/㎡
Description

Small pitch P1.25 Indoor Rental LED Display Video Screen With 600mm×337.5mm Cabinet

Our Core Advantage:
1.Die-casting aluminum case
2.Ultra-thin and ultra-light
3.Higher refresh rate,to show a more perfect viewing effect ;


P1.25 Indoor Full color LED Display Specification

Product Name Specification
Pixel Pitch 1.25 mm
Pixel Configuration 1R1G1B/SMD1010 Black lamp
Density 640,000 pixel/m2
Moduel Size(L×W)mm 150mm×168.75mm×10mm
Cabinet Size(L×W×H)mm 600mm×337.5mm×38mm
Module Resolution 120×135
Cabinet Resolution 480×270
Driving Method 1/45 Scan
Driving IC MBI5153
Brightness 200-500CD/㎡
Contrast 6000 :1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:＜800W
Average power: ＜100-300W
Cabinet Weight 5kg
Color Temperature 2000K—9500K
Horizontal Viewing Angle 140
Vertical Viewing Angle 140º
Signal Processing 16bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >3840Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -10 - 60 ℃
Storage : -40 - 85 ℃
Environment Temperature -10℃ to 60℃; humidity Rh10% to 90%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsXP/7/8/10
Power Supply AC 110V-240V/ 50-60Hz
Protection Level IP 45

Small Pitch P1.25 600mm×337.5mm Indoor Full Color LED Display

Our Service:

We will responsible for our product and customers,during the warrenty,we will free to repair if this is our quality problem.

We are always quality first and refuse to do low-quality product.

FQA:

Q1: The warrenty time for the products?
A1: 1-3 years
Q2: The delivery time of the product?
A2: Normally 7-25days after deposit.
Q3: How to install the led video screen?
A3: The insruction manual is needed,and also online guide 24hours.
Q4: What is the payment term?

A4: 30% deposit in advance, and the rest 70% before delivery.
