High Definition Fireproof P16 Outdoor Led Digital Display 7500cd/㎡
High Definition Fireproof P16 Outdoor Led Digital Display 7500cd/㎡
High Definition Fireproof P16 Outdoor Led Digital Display 7500cd/㎡
High Definition Fireproof P16 Outdoor Led Digital Display 7500cd/㎡
Specifications
Brand Name :
Vegoo
Model Number :
VG-FD P16
Certification :
CE/ROHS/FCC/
Place of Origin :
China
Supply Ability :
3000Sq.m
Delivery Time :
3-5 days
Packaging Details :
Plywood case / Flight case / Carton box
product name :
P16 Outdoor Full color LED Display
Pixel Pitch :
16mm
Pixel Configuration :
1R1G1B/SMD 3535
Density :
3,906 pixel/m2
Moduel Size(L×W)mm :
256mm×256mm
Cabinet Size(L×W×H)mm :
1024mm×1024mm×130mm
Module Resolution :
16×16
Cabinet Resolution :
64×64
Driving Method :
Static
Driving IC :
MBI5124
Brightness :
7500cd/㎡
Contrast :
1000:1
Description
High Definition P16 Outdoor Full color LED Display 7500cd/㎡

Description:

1. Adopting high quality led lamps, higher brightness, lower decay, and larger viewing angle.

2. Taking integrated cabinet design, easy to install and maintenance

3. Fire-proof anti-UV (ultraviolet), resistant to high temperature, acid salt spray;

4. Entire screen is in high contrast, consistent white balance, uniform color display, better picture clarity

5. Using a special mask design, automatic water diversion clean up dust,

IP67 dustproof and waterproof grade, inside sprinkled with Guard lacquer, high corrosion-proof capability

6. Brightness will be adjusted automatically according to external environment, no light pollution

7. Remote control power supply.

8. Two years warranty

9. High performance!

Application:

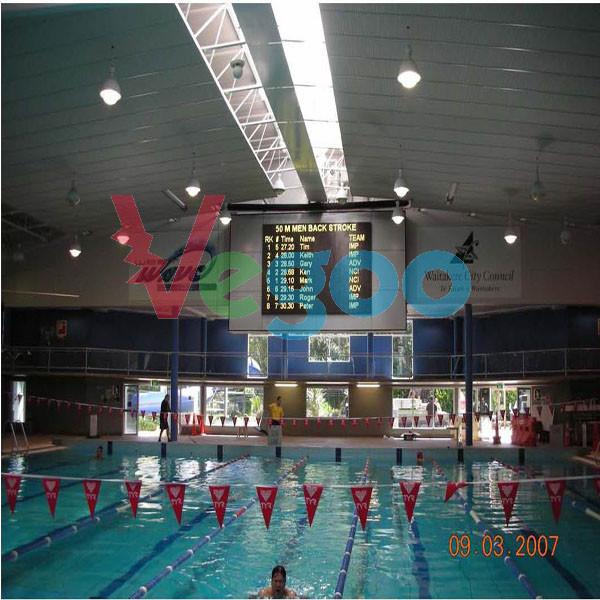

advertising media, sports stadiums, airport station integrated information dissemination, business establishments, and public square
P16 Outdoor Full color LED Display Specification

Product Name Specification
Pixel Pitch 16mm
Pixel Configuration 1R1G1B/SMD 3535
Density 3,906 pixel/m2
Moduel Size(L×W)mm 256mm×256mm
Cabinet Size(L×W×H)mm 1024mm×1024mm×130mm
Module Resolution 16×16
Cabinet Resolution 64×64
Driving Method Static
Driving IC MBI5124
Brightness 7500cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power: ＜1000W
Average power: ＜500W
Module Weight 0.8kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Frame Frequency 65 Hz
Refresh Rate >1920Hz
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)


High Definition Fireproof P16 Outdoor Led Digital Display 7500cd/㎡High Definition Fireproof P16 Outdoor Led Digital Display 7500cd/㎡
