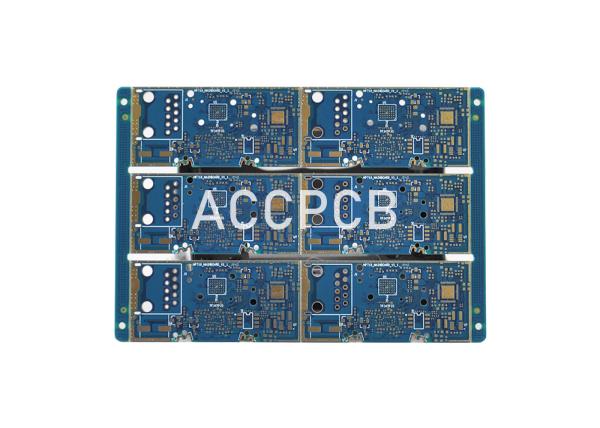

ITEQ FR4 Heavy Copper Immersion Gold PCB Fabrication Customizable Design
ITEQ FR4 Heavy Copper Immersion Gold PCB Fabrication Customizable Design
ITEQ FR4 Heavy Copper Immersion Gold PCB Fabrication Customizable Design
ITEQ FR4 Heavy Copper Immersion Gold PCB Fabrication Customizable Design
Specifications
Brand Name :
ACCPCB
Model Number :
P1032
Certification :
ISO, UL, SGS,TS16949
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union，Paypal
Supply Ability :
30000SQ.M/Per Month
Delivery Time :
10-15days
Packaging Details :
Vacuum packing with desiccant
Material :
KBFR4
Application :
battery protection board
Cooper thickness :
1.5 oz each layer
Board thickness :
2.0mm
Surface Finish :
Immersion Gold
Feature :
Rigid Circuit Boards
Description

ITEQ FR4 material Heavy Copper PCB Fabrication Customizable Design for battery

Production description :

this board is 4layer with 2/3 oz copper thickness. all of these boards are met UL,TS16949, ISO9001 etc. we can accept any quantity board such as PCB prototype,samll volum, middle and large volume . no MOQ request for new order.

Key Specifications/Special Features:

Layer : 4 Layers
Base Material : iteq fr4
Copper Thickness : 3 / 2 / 2 / 3 oz
Board Thickness : 2.30mm
Min. Hole Size : 8 mil, 0.2mm
Min. Line Width : 4 / 4 mil
Min. Line Spacing : 4 / 4 mil
Surface Finishing : Immersion gold
Solder Mask Color : green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Outline : Routing
HS Code : 85340010
Outline profile: CNC routing, punching
outline tolerance: 0.127mm

Quality Goal:

Category Performance indicator Quality Goal

Delivery

 Customer service rate 99.9%
Semi Finished product Process inspection pass rate 100%
Finished product FQA Rebate rate 0.1%
Scrapped 1L scrap rate 0.5%
2L scrap rate 1%
Multi Layer scrap rate 2%
Customers Customer complaint rate 0.8%
Customer return rate 0.5%
Customer satisfaction 99%

Quality assurance :

Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications

Product Application Field :

ITEQ FR4 Heavy Copper Immersion Gold PCB Fabrication Customizable Design

FAQ

1. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.

ITEQ FR4 Heavy Copper Immersion Gold PCB Fabrication Customizable Design
