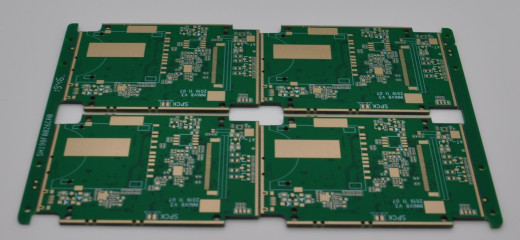

1.58mm thickness PWB Circuit Board with Green solder mask for electronic instrumentation

Key Specifications/Special Features:

PCB Flow Chart.pdf

Here is our PCB order capability:

• Layer : top 20 layers
• Materials : FR-4, FR4 High Tg
• TG : 130-180
• Surface : HASL , Immersion Gold/Silver/Tin, OSP
• Min drill size : 0.10mm
• Min track/spacing : 4/4-mil
• Buried and blind via : 0.2mm
• CNC Milling and V-cut
• Solder mask colors : Green, Blue, Black, White, Red and Yellow, Matte green, Matte black, Matte Blue
• Silkscreen colors : black, white and yellow
• Half Holes
• Impedance control
• Blue Peelable Mask
• Carbon Treated
• HDI available

Shipping Information :

FOB Port : Hong Kong / Shenzhen

Lead Time : 6-10 days

HTS Code : 8534.00.10

Dimensions Per Carton : 37X27X22 cm

Weight Per Carton : 20 Kilograms

FAQ :

1. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.

4. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;

5. How to you make the impedance calculation?

The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
