KB FR4 TG 150 PWB Printed Wiring Assembly 1.0±10%Mm Finish Thickness
KB FR4 TG 150 PWB Printed Wiring Assembly 1.0±10%Mm Finish Thickness
KB FR4 TG 150 PWB Printed Wiring Assembly 1.0±10%Mm Finish Thickness
KB FR4 TG 150 PWB Printed Wiring Assembly 1.0±10%Mm Finish Thickness
Specifications
Brand Name :
ACCPCB
Model Number :
P1224
Certification :
ISO,UL,SGS,TS16949,ROHS
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T / Western Union / Paypal
Supply Ability :
35,000SQ.M/Per Month
Delivery Time :
6-10days
Packaging Details :
Vacuum Packing With Desiccant
Layer Count :
4 layer
Finish thickness :
1.0±10%mm
Minimum via dia :
0.15mm
Surface Finish :
Immersion Gold
Material :
KB FR4tg150
Description

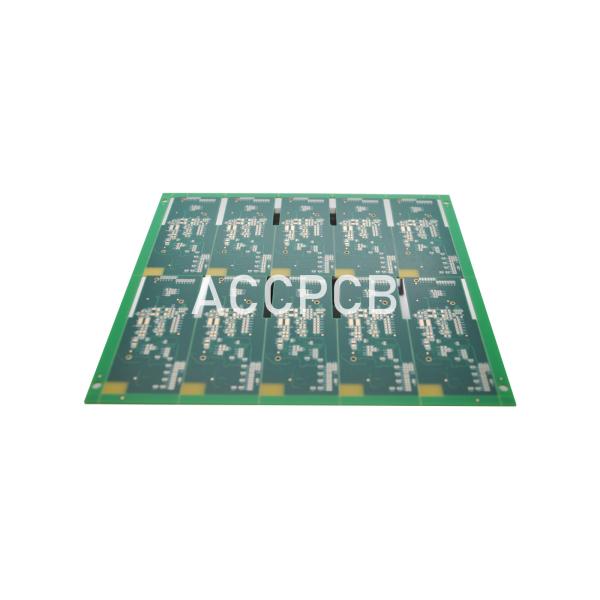

KB FR4 TG 150 PWB Printed Wiring Assembly 1.0±10%Mm Finish Thickness

Key Specifications/Special Features:

Layer count :

4 layer FR4 TG150
Copper Thickness:Inner: 1oz in all layer
Board Thickness: 1.0mm
Min. Hole Size: 6mil
Min. Line Width: 4mil
Min. Line Spacing: 4mil
Surface finish : immersion gold
Solder mask :

Green
Certification : ISO UL ROHS SGS

​

Technology Capability :

Item Technical Parameters
Layers 1-28 Layers
Inner Layer Min Trace/Space 4/4 mil
Out Layer Min Trace,Space 4/4 mil
Inner Layer Max Copper 4 OZ
Out Layer Max Copper 4 OZ
Inner Layer Min Copper 1/3 oz
Out Layer Min Copper 1/3 oz
Min hole size 0.15 mm
Max.board thickness 6 mm
Min.board thickness 0.2mm
Max.board size 680*1200 mm
PTH Tolerance +/-0.075mm
NPTH Tolerance +/-0.05mm
Countersink Tolerance +/-0.15mm
Board Thickness Tolerance +/-10%
Min BGA 7mil
Min SMT 7*10 mil
Solder mask bridge 4 mil
Solder mask color White,black,blue,green,yellow,red,etc
Legend color White,black,yellow,gray,etc
Surface finish HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control +/-10%
Bow and twist ≤0.5

Shipping Information :

FOB Port : Hong Kong / Shenzhen

Lead Time : 6-10 days

HTS Code : 8534.00.10

Dimensions Per Carton : 37X27X22 cm

Weight Per Carton : 20 Kilograms

FAQ

1. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. How many types of surface finish ACCPCB can do?

the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


4. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;

5. How to you make the impedance calculation?

The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
