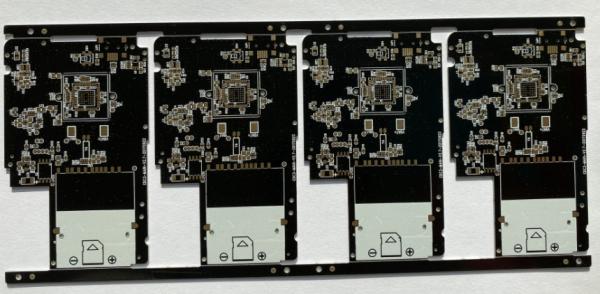

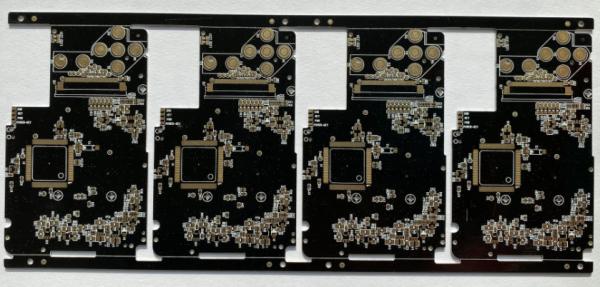

OEMSix Layer Enig Rohs Lead Free PCB Manufacturing Module Industrial Grade Durale 100% E-Test
Production Feature:
Layer : | 6Layers |
Base Material : | FR4 |
Copper Thickness : | 0.5 oz in all layer |
Board Thickness : | 1.50 mm |
Surface Finish : | ENIG(AU:2U'') |
Min. Hole Size : | 6 mil / 0.15mm |
Min. Line Width : | 4/4 mil, 0.10/0.10 mm |
Min. Line Spacing : | 4/4mil, 0.10/0.10mm |
Application : | Switch device |
Certification : | ISO9001, UL, ROHS,TS16949 |
Technology Capability:
ITEMS | Capability |
Max. layer count | 28L |
Min. line widty | 0.08mm |
Min. line spacing | 0.08mm |
Min. hole size | 0.15mm |
Board thickness | 0.4-6.0mm |
Max. boardsize | 520×620mm |
(PTH) Hole size tolerance(PTH) | ±0.075mm |
(NPTH) Hole size tolerance(NPTH) ) | ±0.05mm |
Holeposition tolerance(Routing) | ±0.1mm |
Outline tolerance(Punching) | ±0.1mm |
Quality assurance :
Every production process has a special person to test to ensure quality
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Advantages :
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours
FAQ :
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
5. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
