Specifications
Brand Name :
ACCPCB
Model Number :
P1141
Certification :
ISO, UL, SGS,TS16949
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C / T/T / Western Union / Paypal
Supply Ability :
25000SQ.M/PER MONTH
Delivery Time :
15-20days
Packaging Details :
Vacuum packing with desiccant
Material :
NY FR4TG150
Layer :
4-layer
Feature :
ENGI
Copper thickness :
1oz inner layer / 1.0oz outlayer
Board thickness :
1.0MM
Service :
OEM Services Provided
Description

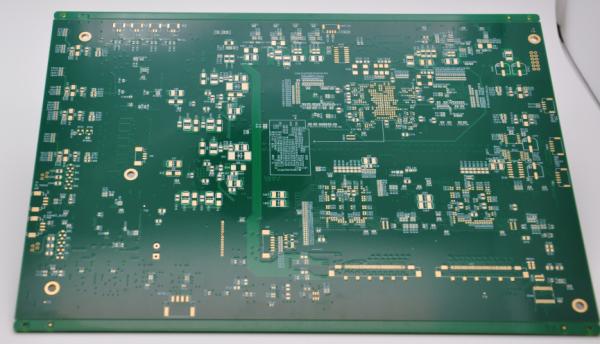

OEM KB FR4 1.0MM thickness Electronic HDI PCB Board hot air solder levelingl Micro Section

Production description :

this board is 4layer with HDI boards. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards. All PCB are passed UL, TS16949, ROHS ,ISO9001 etc. Certification.

Production Capability :

Item Capabilities
Number of Layers From 4-layer to 22- Layer
Material FR-4,HighTg, Rogers
Halogen Free
PCB Thickness Min.thickness 0.4mm(16mil)
Max.thickness 3.2mm(128mil)

Surface finished
Gold Plating
Immersion Gold(Silver)
HAL Lead Free
Hot Air Solder Leveling(HASL)
Entek Coating (OSP)
Solder Mask Green,White,Black,Yellow,Red,Blue
Other printing Gold Finger
Carbon Print, Peelable Mask
Solder Mask Plugged Hole
Copper thickness 1/ 2 oz (18 μm) - 4 oz (140 μm)
Min. Finished Hole Size 0.2mm(8mil)
Hole Size Tolerance (PTH) +/ -0.076mm (3 mil)
Hole Size Tolerance (NPTH) +/-0.05mm (2 mil)
Min. Line Width and Spacing 0.1mm (4 mil)
Min. Solder Mask Clearance 0.05mm (2 mil)
Min. Annular Ring 0.076mm (3mil)
Profile and V-Cut CNC-Routing, Stamping and Beveling,V-CUT,CNC
Special Process Micro-section, Chamfer for Gold Finger
File format Gerber file , CAM350 ,Protel,PowerPCB
E-TEST Flying Prob , E-test ,Fixture
Other Test Impedance , Slice up
Warp & Twist ≤0.7%


Lead Time:

Types

(Max ㎡/month)

Samples

(days)

Mass Production(days)
New PO Repeat PO Urgent
2layer 50000 sq.m/month 2-3 10-11 8-9 4
4layer 5-6 11-12 9-11 5
6layer 6-7 13-14 12-14 6
8layer 7-8 16-18 14-15 7

Products Application:

1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

4, Industrial controls: Medical device ,UPS equipment, Control device etc;

5, Vehicle Electronices: Car etc;

6, Military & Defense : Military Weapons etc;


Advantages :
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery

FAQ :

1. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


5. How many types of surface finish ACCPCB can do?

the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
