ENGI Surface 1oz 4MIL Multilayer Printed Circuit Board
ENGI Surface 1oz 4MIL Multilayer Printed Circuit Board
ENGI Surface 1oz 4MIL Multilayer Printed Circuit Board
ENGI Surface 1oz 4MIL Multilayer Printed Circuit Board
Specifications
Brand Name :
ACCPCB
Model Number :
S1207127
Certification :
ISO, UL, SGS,TS16949
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C / T/T / Western Union / Paypal
Delivery Time :
10-12days
Packaging Details :
Vacuum packing with desiccant
Product Name :
Multilayer Rigid boards
Thickness :
1.50mm
Size :
100mmX60mm
Min. line spacing :
0.1MM / 4MIL
Board thickness :
0.5~3.2mm
Surface finishing :
Immersion gold
Copper thickness :
0.5oz-6oz
Min Line spacing :
4mil (0.1mm)
Min.line width :
4 mil ( 0.1mm)
Min Drill Hole size :
0.2mm
Description

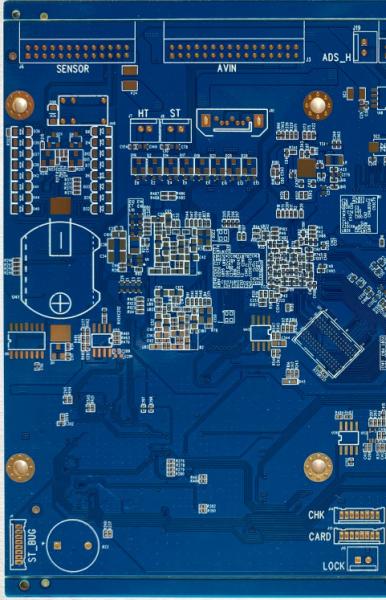

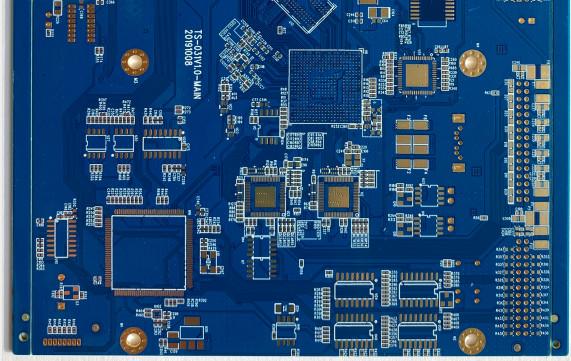

ENGI Surface 1oz 4MIL Multilayer Printed Circuit Board

Multilayer PCB Board multi layer circuit board with ENGI surface for measuring instrument

Production description :

this board is 6layer with 1oz copper thickness. it is used for measuring device. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.

Key Specifications of amplifier PCB board:

Production Types: Rigid Multilayer PCB
Layer : 6 layer
Base Material : FR4
Copper Thickness : 1 oz
Board Thickness : 2.30mm
Min. Finish Hole Size : 8 mil (0.10mm)
Min. Line Width : 4 mil
Min. Line Spacing : 4 mil
Surface Finishing : ENIG
Drilling hole tolerance: +/-3 mil ( 0.075mm )
Min Outline tolerance : +/-4 mil ( 0.10mm )
Working panel size : max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow : no more than 0.75 %

PCB Chart.pdf

Products Application:

1, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

2, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

3, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

4, Vehicle Electronices: Car etc;

5, Smart Home: Wearable device ,computers, ipad , Remote Control etc;

6, Industrial controls: Medical device ,UPS equipment, Control device etc;

7, Military & Defense : Military Weapons etc;

Technical Capability:

ITEMS Capability
Max. layer count 28L
Min. line widty 0.08mm
Min. line spacing 0.08mm
Min. hole size 0.15mm
Board thickness 0.4-6.0mm
Max. boardsize 520×620mm
(PTH) Hole size tolerance(PTH) ±0.075mm
(NPTH) Hole size tolerance(NPTH) ) ±0.05mm
Holeposition tolerance(Routing) ±0.1mm
Outline tolerance(Punching) ±0.1mm

ENGI Surface 1oz 4MIL Multilayer Printed Circuit Board

FAQ:

1. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.

3. How many types of surface finish ACCPCB can do?

O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


Product tags

multilayer printed circuit board

,

printed circuit board multilayers

,

fr4 printed circuit board
Send your message to this supplier
Send Now
