OEM Electronics 10 Layer FR4 Tg150 Multilayer PCB Board 1.58mm Thickness
OEM Electronics 10 Layer FR4 Tg150 Multilayer PCB Board 1.58mm Thickness
OEM Electronics 10 Layer FR4 Tg150 Multilayer PCB Board 1.58mm Thickness
OEM Electronics 10 Layer FR4 Tg150 Multilayer PCB Board 1.58mm Thickness
Specifications
Brand Name :
ACCPCB
Model Number :
P111613
Certification :
ISO, UL, SGS,TS16949
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C / T/T / Western Union / Paypal
Supply Ability :
30,000SQ.M/Per Month
Delivery Time :
10-12days
Packaging Details :
Vacuum packing with desiccant
Material :
FR4 tg150
Thickness :
1.58mm
Surface Finish :
Immersion gold
Layer :
10L
Pcb standard :
IPC-A-610 D
Usage :
OEM Electronics
Copper thickness :
2oz
Min. line spacing :
0.2mm
Min. hole size :
0.1mm
Product name :
Printed Circuit Board
Solder mask :
Green. Red. Blue. White. Black.Yellow
Type :
OEM PCB,customized PCB
Description

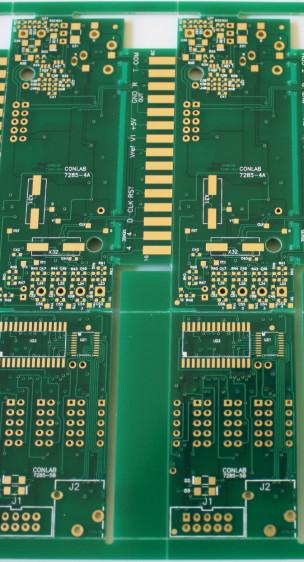

OEM Electronics 10 Layer FR4 Tg150 Multilayer PCB Board 1.58mm Thickness

Production description :

this board is 10 layer with 2 oz copper thickness.PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.

PCB Flow Chart.pdf

Key Specifications/Special Features :

Layer : 10 Layers
Base Material : FR4 tg150
Copper Thickness : 2oz in all layer
Board Thickness : 1.58mm
Min. Hole Size : 8 mil
Min. Line Width : 6 mil
Min. Line Spacing : 6 /mil
Surface Finishing : immersion gold
Solder Mask Color : Green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Outline profile : Routing, punching
Twist and bow : 0.75%
Immpedance control : +/- 10%
Solder mask : LPI solder mask, peelable mask

ACCPCB Technical Capability.pdf

Products Application:

1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

4, Industrial controls: Medical device ,UPS equipment, Control device etc;

5, Vehicle Electronices: Car etc;

6, Military & Defense : Military Weapons etc;


OEM Electronics 10 Layer FR4 Tg150 Multilayer PCB Board 1.58mm Thickness

FQA :


1. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.

2. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process



3. How many types of surface finish ACCPCB can do?

O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.

4. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
