Shengyi FR4 2oz Multilayer Printed Circuit Board For Industrial Control Industry
Shengyi FR4 2oz Multilayer Printed Circuit Board For Industrial Control Industry
Shengyi FR4 2oz Multilayer Printed Circuit Board For Industrial Control Industry
Shengyi FR4 2oz Multilayer Printed Circuit Board For Industrial Control Industry
Specifications
Brand Name :
ACCPCB
Model Number :
P10323
Certification :
ISO, UL, SGS,TS16949
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union，Paypal
Supply Ability :
30000SQ.M/Per Month
Delivery Time :
10-15days
Packaging Details :
Vacuum packing with desiccant
Material :
ShengyiFR4
Application :
industrial control industry
Cooper thickness :
2 oz each layer
Board thickness :
2.30mm
Surface Finish :
Immersion tin
Feature :
Rigid Circuit Boards
Min. hole size :
0.30mm
Min. line spacing :
0.15mm
Min. line width :
0.15mm
Solder mask color :
Green
Description

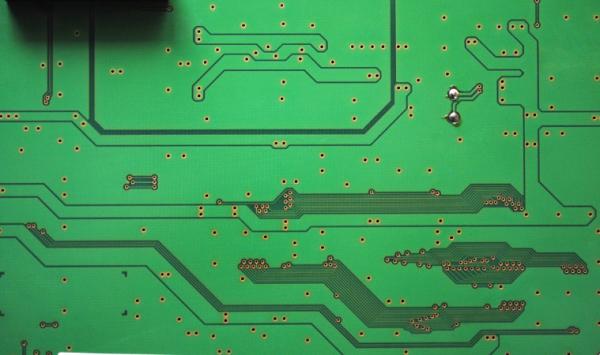

Shengyi FR4 2oz Multilayer Printed Circuit Board For Industrial Control Industry

Production description :

this board is 6 layer rigid pcb. it is used for industria control industry. all of our board are met UL, ISO9001, TS1694 certification etc.no MOQ request for new boards, for repeat order, just meet 3sq.m.

PCB Flow Chart.pdf

Key Specifications/Special Features:

Production Types: Rigid PCB
Layer : 6 Layer
Base Material : FR4 fiber
Copper Thickness : 2oz
Board Thickness : 1.60mm
Min. Finish Hole Size : 0.30mm
Min. Line Width : 0.15mm
Min. Line Spacing : 0.15mm
Surface Finishing : Immersion tin
Drilling hole tolerance: +/-3 mil ( 0.075mm )
Min Outline tolerance : +/-4 mil ( 0.10mm )
Working panel size : max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow :

no more than 0.75 %

Quality Goal:

Category Performance indicator Quality Goal

Delivery

 Customer service rate 99.9%
Semi Finished product Process inspection pass rate 100%
Finished product FQA Rebate rate 0.1%
Scrapped 1L scrap rate 0.5%
2L scrap rate 1%
Multi Layer scrap rate 2%
Customers Customer complaint rate 0.8%
Customer return rate 0.5%
Customer satisfaction 99%

Product Application Field :

Shengyi FR4 2oz Multilayer Printed Circuit Board For Industrial Control Industry

FAQ

1. How many types of surface finish ACCPCB can do?

O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.


2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
