High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
High Sensor Resolution Wildlife Camera 13MP Cmos Dual Lens Trail Camera
Specifications
Brand Name :
KeepGuard
Model Number :
KW696
Certification :
CE,ROHS, FCC
Place of Origin :
China Shenzhen
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
3-7 days
Packaging Details :
Gift box, Carton
Image Size :
30MP
Video Size :
1920*1080p
No Glow IR-Flash Range :
25M
PIR Distance :
25m
trigger speed :
0.3s
Power :
6*AA
SD Card :
Upto 256GB
Flash :
48pcs of 940nm lights
Waterproof :
IP67
Security Authentication :
FCC/CE/RoHs
Language :
English, French, German, Italian, Russian, Spanish, Finnish, slovak, Turkish, simplified Chinese, traditional Chinese
lens :
f=7.36mm F/NO:2.8 FOV=55°; Auto IR-Cut-Remove (at night)
Description
High Sensor resolution wildlife camera 13MP Cmos dual-lens trail camera
Products Description

Mounting

We recommend mounting cam on a sturdy tree with a diameter of about 6 in. (15cm). To get the optimal picture quality, the tree should be about 16-17 ft(5 meters) away from the place to be monitored, with the camera placed at a height of 5-6.5 ft. (1.5~2 m). Also, keep in mind that you will get the best results at night when the subject is within the ideal flash range, no farther than 60' (19m) and no closer than 10'(3m) from the camera.
There are two ways to mount cam: using the provided adjustable strap or the tripod socket.
•Using the adjustable strap: Push one end of the strap through the two brackets on the back of cam. Thread the end of the strap through the buckle. Fasten the strap securely around the tree trunk by pulling the end of the strap firmly so there is no slack left.
•Using the tripod socket: The camera is equipped with a socket at the bottom end.

Manufacturing Technique
Maximum image size
30MP
Effective Pixels
Day Sensor: 4320*3252 , Night Sensor: 2592*1944
Lens

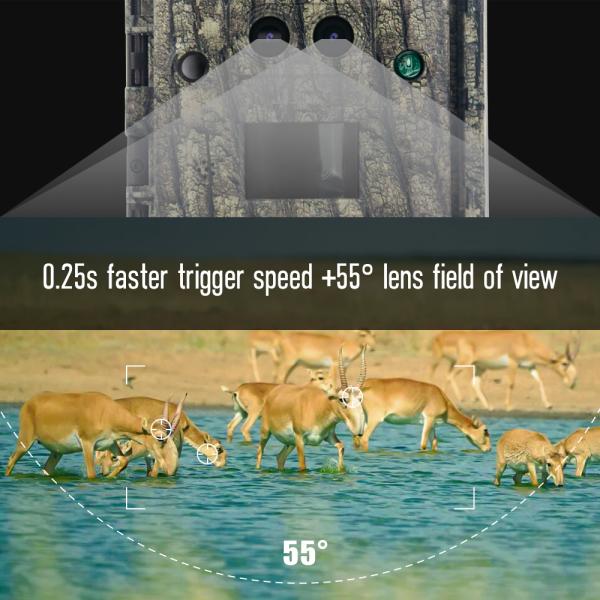

Night Sensor lens (at night): f=7.36mm F/NO:2.8 FOV=55°;
Day Sensor lens(at day) : f=4.55mm F/NO:4.5 FOV=82°;
IR-Flash Range
25m-30m; High Power LED : 4 LEDS
Display Screen
2.4 inch HD Color Display

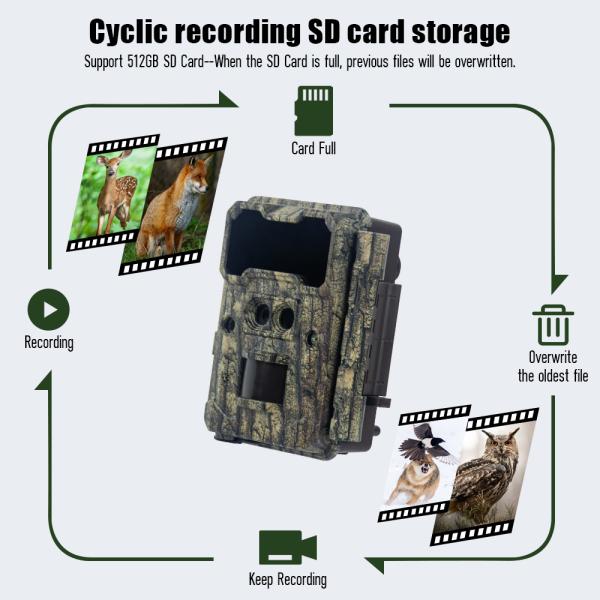

Memory Card
SD or SDHC Card, up to 64GB
Image Size
30M(6400x4800);14M(4320*3240);5M (2592*1944);
Video Size
1920*1080; 1280*720 ; 640*360
PIR Sensitivity
PIR with 4 sensitivity levels:High/ Normal/ Low/Auto
Operation
Day/Night
Response Time
Picture trigger: < 0.25 s, Video trigger: <0.6s
Triggering Interval
1sec-60min programmable
Shutter Speed
1/10-1/2000sec.
Shooting Numbers
1-9 programmable
Video Length
5-60sec. programmable
Power Supply
8×AA recommended; DC12V
Stand-by Current
<0.09mA
Power Consumption
<180mA(1A when IR-LED Lighted)
Timed Scan
Programmable
Temperature Display
Programmable
Camera Name
Input
Moon Display
Programmable
Audio Video
Programmable
User Interface
LCD display
Interface
USB;SD card;
Security
Strap;1/4-20 attachment
Operating Temperature
-20-60℃(Storage temperature:-30-70℃)
Operating Humidity
5%-90%
Security Authentication
FCC/CE/RoHs/WEEE
Waterproof
IP67
Packing INFO
Camera size:19*12.5*8CM,0.6KG/PCS,20PCS/CTN
