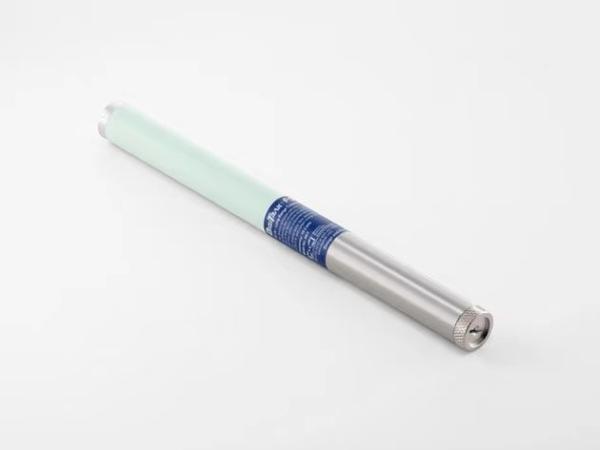

F5 / F2 DigiTrak F Series™ Transmitter 65 Ft 19.8 M Depth Range
F5 / F2 DigiTrak F Series™ Transmitter 65 Ft 19.8 M Depth Range
Specifications
Place of Origin :
China
Brand Name :
Rongchang Machinery
MOQ :
1 pc
Price :
Negotiable
Packaging Details :
standard packing, as customer demands
Delivery Time :
15 - 30 Days
Payment Terms :
L/C,T/T,etc.
Description

DigiTrak F Series™ transmitters are available in two frequencies, as well as cable and short-range options. These transmitters are compatible with F5® and F2® systems.

DigiTrak F Series Transmitters

DigiTrak F Series™ transmitters are available in two unique frequencies for increased interference reduction, as well as cable and short range options. These transmitters are compatible with F5® and F2® systems.
FX 12 Long Range Transmitter with 0.1% Pitch (12 kHz)
Label Color Dark Gray
Length x Diameter 15 x 1.25 in.
38.1 x 3.175 cm
Depth Range 65 ft
19.8 m
Battery Type
(hours awake/asleep)		 2 C-cell alkaline (20/200), or
1 SuperCell (70/400), or
2 SAFT LSH14 (40/400)
Max. Temp. 220° F
104° C
Weight 1.4 lb
635 g

FXL 12 Extended Range Transmitter with 0.1% Pitch (12 kHz)
Length x Diameter 19 x 1.25 in.
48.26 x 3.175 cm
Depth Range 85 ft
25.9 m
Battery Type
(hours awake/asleep)		 1 SuperCell (40/300)
Max. Temp. 220° F
104° C
Weight 1.85 lb
839 g
For optimal signal emission and battery life, DCI's extended long-range transmitters require a SuperCell lithium battery and a housing with 13 in. (33 cm) slots that start 2 in. (5.1 cm) from the front or index cap end of the transmitter.

FC Cable Transmitter with 0.1% Pitch (12 kHz)
Length x Diameter 19 x 1.25 in.
48.26 x 3.175 cm
Depth Range 90 ft
27.4 m
Battery Type 9–28 VDC
Cable Power
Max. Temp. 180° F
82° C
Weight 1.85 lb
840 g

FX 19 Long-Range Transmitter with 0.1% Pitch (19.2 kHz)
Label Color Navy
Length x Diameter 15 x 1.25 in.
38.1 x 3.175 cm
Depth Range 65 ft
19.8 m
Battery Type
(hours awake/asleep)		 2 C-cell alkaline (20/200), or
1 SuperCell (40/300), or
2 SAFT LSH14 (40/400)
Max. Temp. 220° F
104° C
Weight 1.4 lb
635 g

FXL 19 Extended Long-Range Transmitter with 0.1% Pitch (19.2 kHz)
Label Color Navy
Length x Diameter 19 x 1.25 in.
48.26 x 3.175 cm
Depth Range 85 ft
25.9 m
Battery Type
(hours awake/asleep)		 1 SuperCell (40/300)
Max. Temp. 220° F
104° C
Weight 1.85 lb
839 g
For optimal signal emission and battery life, DCI's extended long-range transmitters require a SuperCell lithium battery and a housing with 13 in. (33 cm) slots that start 2 in. (5.1 cm) from the front or index cap end of the transmitter.

FS Short-Range Transmitter with 0.1% Pitch (12 kHz)
Length x Diameter 8 x 1.00 in.
20.32 x 2.54 cm
Depth Range 15 ft
4.6 m
Battery Type 1 AA-cell alkaline (10 hours awake, 100 hours sleep)
Max. Temp. 180° F
82° C
Weight

8.4 oz
240 g

Name ID Color Price
F Series 15-in 12 kHz Transmitter FX 12 Dark Gray
F Series 19-in 12 kHz Transmitter FXL 12 Dark Gray
F Series 15-in 19 kHz Transmitter FX 19 Midnight Blue
F Series 19-in 19 kHz Transmitter FXL 19 Midnight Blue
F Series 8-in 12 kHz Transmitter NO LONGER AVAILABLE 1/2023 White
F Series 12 kHz Cable Transmitter FC White
